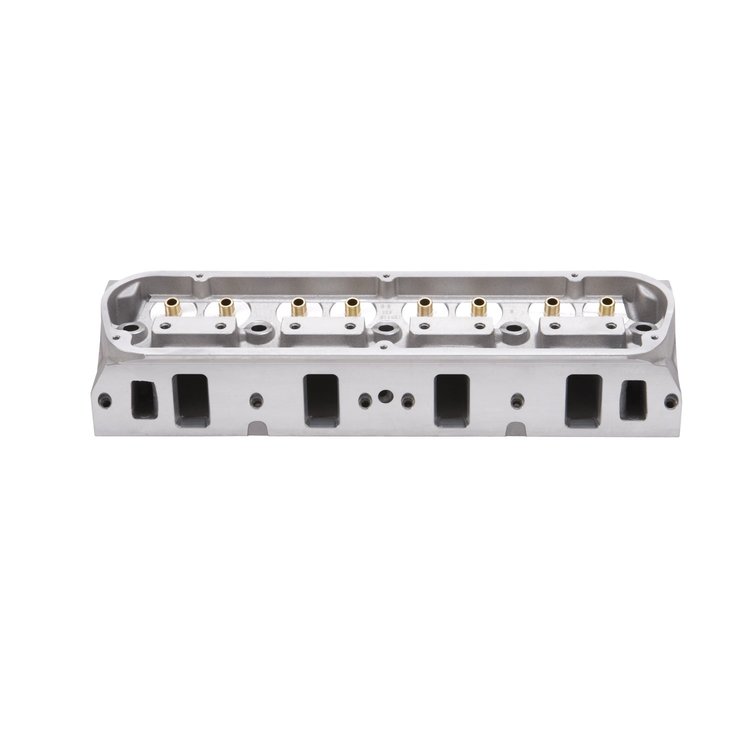

Performer Aluminum Cylinder Head for Ford 5.0L/5.8L
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
- 1982-1995 Small Block Ford 5.0L/5.8L
- 50-State Legal
- Valve Size: 1.90" Intake /1.60" Exhaust
- Port Size: 170cc/60cc
- 60cc Combustion Chamber
- Bare Head, Sold Individually
50-state street legal Performer 5.0/5.8L heads are direct bolt-on heads for 1982-95 5.0L and 5.8L (351-W) V8s originally equipped with pedestal mount rocker arms. When combined with the Total Power Package on a 1993 5.8L engine, torque improved more than 80 ft/lbs over stock. These heads accept pedestal mount rocker arms and valve trains as used on 1982 and later 5.0 Liter V8s. These heads will not accept rail rockers. Note: 1986 5.0L must have pistons notched for clearance.Note: Aftermarket 286/302 heads including Brodix, Edelbrock, Ford Motorsport and World Products with 1/2' bolt hole diameters (block is 7/16' bolt hole), except 397-M-6049-P303 ('P' style head). Require 350-9680 inserts with 350-8552 head bolt or 350-9680 insert with 070-154-3601. If head studs are desired use 070-154-4005 (includes inserts).
Tech Tip: To gain more spark plug clearance, Edelbrock recommends using Champion RC Series plugs such as the RC12YC (P/N 192-49776). They are 0.230' shorter than a conventional spark plug and have a 5/8' hex for easier access.
Valve Lift Intake Exhaust .100' 72 57 .200' 131 105 .300' 185 131 .400' 214 156 .500' 223 168 .600' 226 175 .700' N/A N/A Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28' H2O
Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.
Edelbrock Performer Series aluminum cylinder heads are specifically designed for performance street use. These heads are 50-state legal and provide excellent bolt-on performance for 1982-95 5.0L and 5.8L Ford V8 engines. These heads are designed to accept 1982-95 5.0L V8 pedestal mount rocker arms and valvetrain.
Show More
Note: 1986 5.0L pistons must be notched for valve clearance. These heads will not accept rail rockers. The 5.0L requires Head Bolt Bushings (350-9680).
All bare heads come with valve guides and seats installed, but these heads will require final sizing and a valve job to match the valves being used.
| Combustion Chamber Colume | 60cc |
| Intake Runner Volume | 170cc |
| Exhaust Runner Volume | 60cc |
| Intake Valve Diameter | 1.90" / 2.02" |
| Exhaust Valve Diameter | 1.60" |
| Valve Stem Diameter | 11/32" |
| Valve Guides | Manganese Bronze |
| Deck Thickness | 5/8" |
| Valve Spring Diameter | 1.46" |
| Valve Spring Maximum Lift | .575" |
| Rocker Stud | N/A |
| Guideplate | N/A |
| Pushrod Diameter | 5/16" |
| Valve Angle | 20° |
| Exhaust Port Location | Stock |
| Spark Plug Fitment | 14mm x 3/4 reach, flat gasket seat |
Made In The USA!
