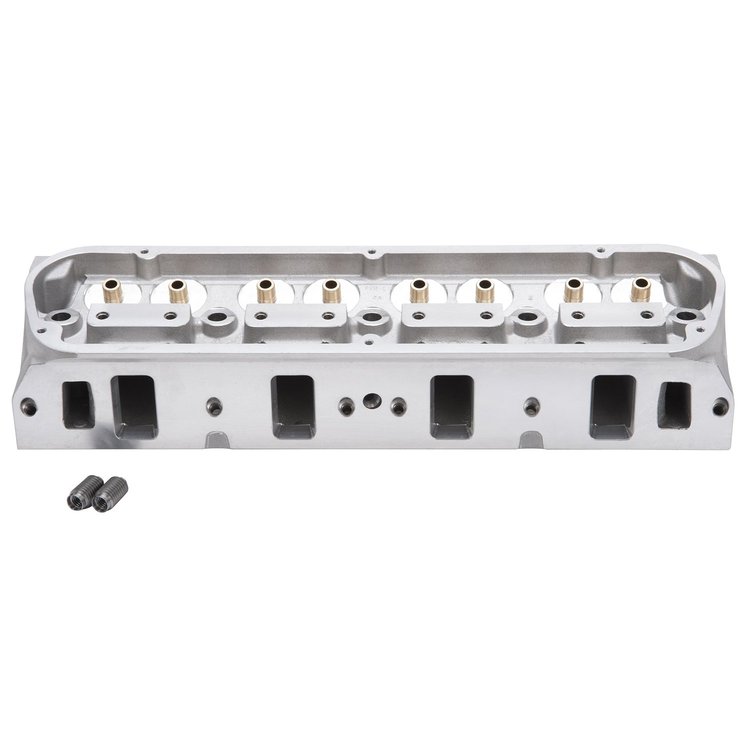

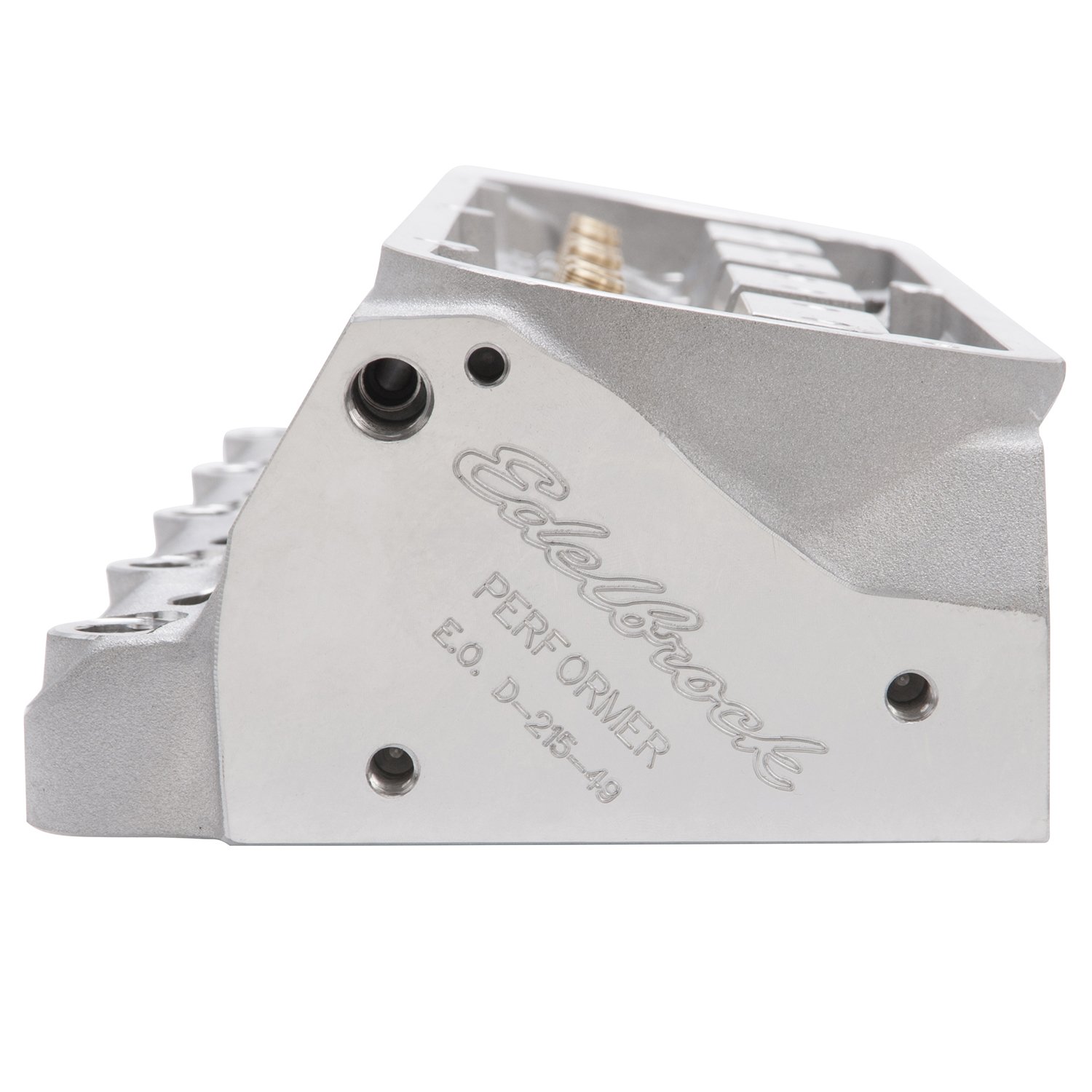

Performer Aluminum Cylinder Heads - Bare
- 1982-1995 Ford 5.0L/5.8L
- 50-State Legal
- Valve Size: 2.02" Intake /1.60" Exhaust
- Port Size: 170cc/60cc
- 60cc Combustion Chamber
- Bare Head, Sold Individually
50-state street legal Performer 5.0/5.8L heads are direct bolt-on heads for 1982-95 5.0L and 5.8L (351-W) V8s originally equipped with pedestal mount rocker arms. When combined with the Total Power Package on a 1993 5.8L engine, torque improved more than 80 ft/lbs over stock. These heads accept pedestal mount rocker arms and valve trains as used on 1982 and later 5.0 Liter V8s. These heads will not accept rail rockers. Note: 1986 5.0L must have pistons notched for clearance.Note: Aftermarket 286/302 heads including Brodix, Edelbrock, Ford Motorsport and World Products with 1/2' bolt hole diameters (block is 7/16' bolt hole), except 397-M-6049-P303 ('P' style head). Require 350-9680 inserts with 350-8552 head bolt or 350-9680 insert with 070-154-3601. If head studs are desired use 070-154-4005 (includes inserts).
Tech Tip: To gain more spark plug clearance, Edelbrock recommends using Champion RC Series plugs such as the RC12YC (P/N 192-49776). They are 0.230' shorter than a conventional spark plug and have a 5/8' hex for easier access.
Valve Lift Intake Exhaust .100' 70 57 .200' 130 104 .300' 185 142 .400' 219 163 .500' 229 172 .600' 226 175 .700' N/A N/A Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28' H2O
Part TypeCylinder Head
BrandEDELBROCK
Package Height8.19
Package Width10.44
Package Length24.75
Weight24.27 PG
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake Port LocationStandard
Emission50 State Legal
Exhaust Valves IncludedNo
Locks IncludedNo
Engine Make/SizeFord 5.8L/351W
Retainers IncludedNo
Guideplates IncludedNo
Rocker Arms IncludedNo
Oiling StyleThrough pushrod
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Valve Seats MachinedNo
Intake Valve Angle20
Valve Seat MaterialPowdered metal
Heat CrossoverNo
FinishCast Aluminum
Valve Springs IncludedNo
UsageStreet/Performance
Damper Spring IncludedNo
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedNo
QuantitySold individually
Cylinder Head TypeStandard
Valve Stem Seals IncludedNo
Intake Valve Diameter2.02 in (51.308 mm)
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)60
Exhaust Port LocationStandard
Valve Guide MaterialManganese bronze
TypeBare
Combustion Chamber Volume (Cc)60
Machined For O-RingNo
PreparationRequires Professional Preparation (Bare)
Steam Holes DrilledNo
Rocker Arm Studs IncludedNo
Cylinder Head StyleBare
Part FitmentSemi Universal
Valve Cover Mounting StylePerimeter bolt
Intake Runner Volume (Cc)170
Cnc-Machined Exhaust RunnerNo
Cnc-Machined Combustion ChamberNo
Exhaust Valve Diameter1.6 in (40.64 mm)
Vendor Part Number60389
Package Qty1
Package TypeEA
