Vehicle Info NeededEDELBROCKPART NUMBER: 350-60399

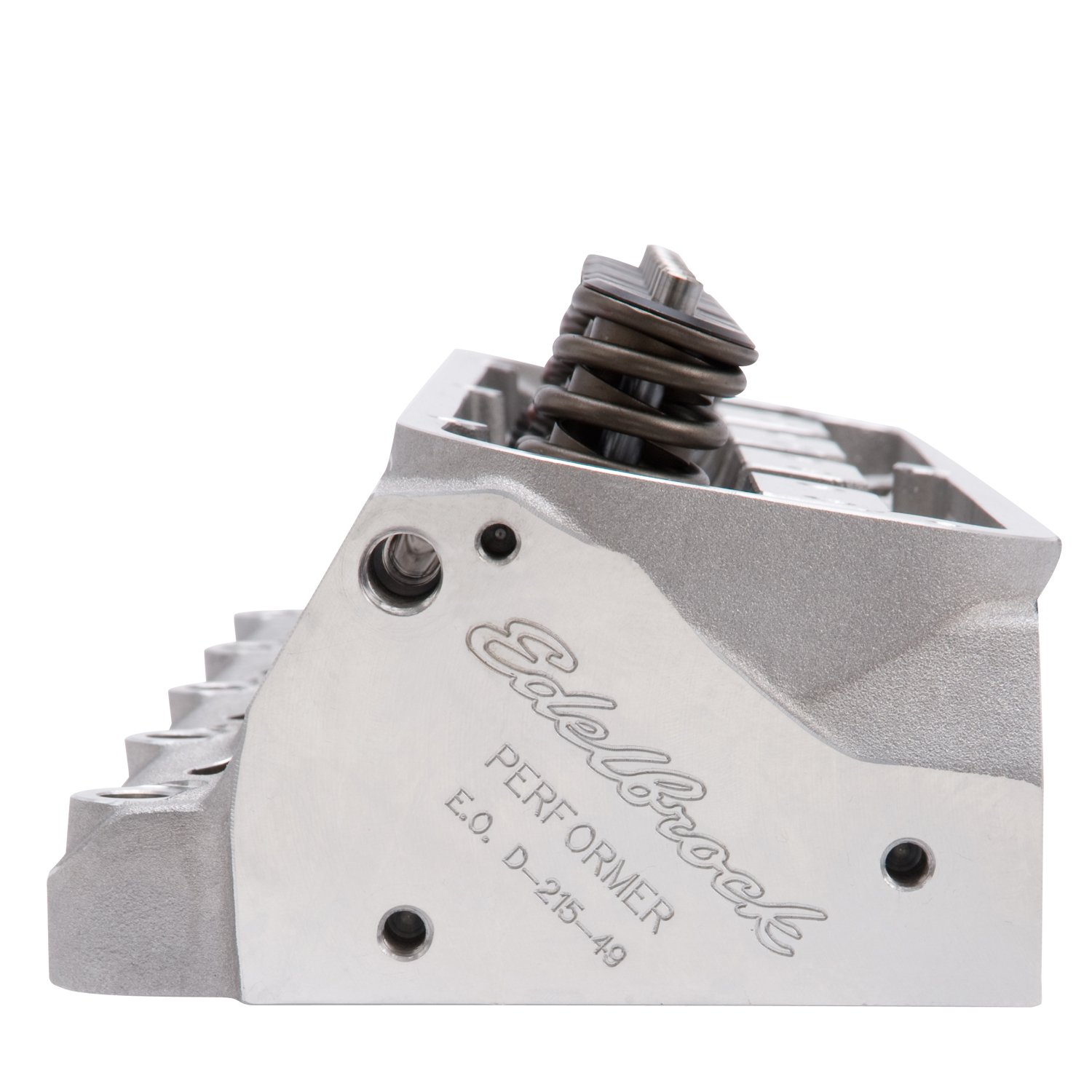

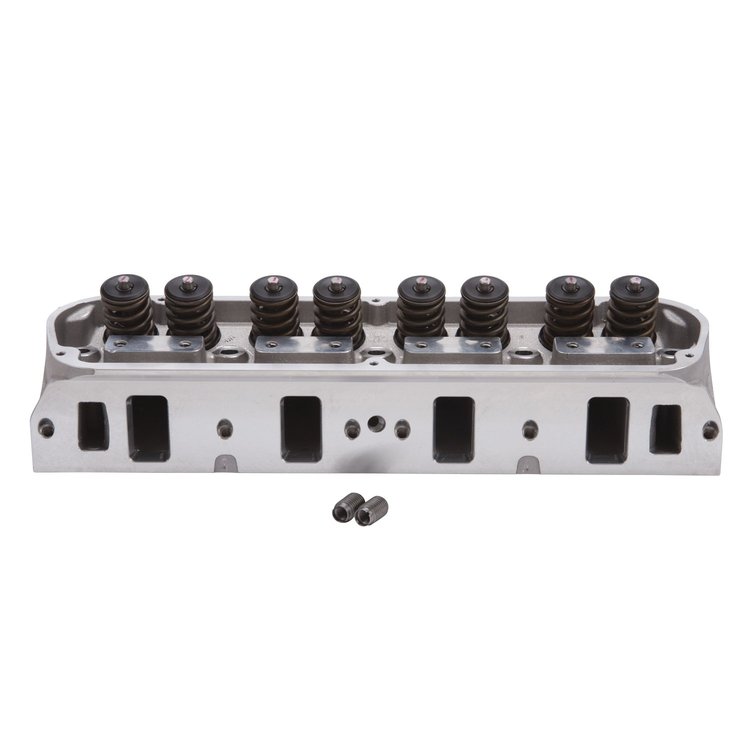

Performer Aluminum Cylinder Head for Ford 5.0L/5.8L
$1,18895
1 left in stock
Ships Today
Lowest Price GuaranteePerformer Aluminum Cylinder Heads - Complete
- 1982-1995 Small Block Ford 5.0L/5.8L
- 50-State Legal
- Valve Springs for Hydraulic Flat Tappet
- Valve Size: 2.02" Intake /1.60" Exhaust
- Port Size: 170cc/60cc
- 60cc Combustion Chamber
- Assembled, Sold Individually
50-state street legal Performer 5.0/5.8L heads are direct bolt-on heads for 1982-95 5.0L and 5.8L (351-W) V8s originally equipped with pedestal mount rocker arms. When combined with the Total Power Package on a 1993 5.8L engine, torque improved more than 80 ft/lbs over stock. These heads accept pedestal mount rocker arms and valve trains as used on 1982 and later 5.0 Liter V8s. These heads will not accept rail rockers. Note: 1986 5.0L must have pistons notched for clearance.Note: Aftermarket 286/302 heads including Brodix, Edelbrock, Ford Motorsport and World Products with 1/2' bolt hole diameters (block is 7/16' bolt hole), except 397-M-6049-P303 ('P' style head). Require 350-9680 inserts with 350-8552 head bolt or 350-9680 insert with 070-154-3601. If head studs are desired use 070-154-4005 (includes inserts).
Tech Tip: To gain more spark plug clearance, Edelbrock recommends using Champion RC Series plugs such as the RC12YC (P/N 192-49776). They are 0.230' shorter than a conventional spark plug and have a 5/8' hex for easier access.
Valve Lift Intake Exhaust .100' 70 57 .200' 130 104 .300' 185 142 .400' 219 163 .500' 229 172 .600' 226 175 .700' N/A N/A Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28' H2O
Part TypeCylinder Head
BrandEDELBROCK
Package Height7.38
Package Width10.44
Package Length22.25
Weight30.7 PG
Retainers IncludedYes
Guideplates IncludedNo
Oiling StyleThrough pushrod
Valve Seats MachinedYes
Heat CrossoverNo
Number Of Springs Per ValveSingle
Damper Spring IncludedYes
Cylinder Head TypeStandard
Valve Stem Seals IncludedYes
Intake Valve Diameter2.02 in (51.308 mm)
Valve Guide MaterialManganese bronze
Outside Diameter Of Outer Spring1.46 in (37.1 mm)
Steam Holes DrilledNo
Rocker Arm Studs IncludedNo
Retainer MaterialSteel
Cnc-Machined Combustion ChamberNo
Exhaust Valve Diameter1.6 in (40.64 mm)
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake Port LocationStandard
Emission50 State Legal
Exhaust Valves IncludedYes
Locks IncludedYes
Engine Make/SizeFord 5.8L/351W
Lock Style7 degree
Rocker Arms IncludedNo
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Intake Valve Angle20
Maximum Valve Lift0.575 in (14.605 mm)
Valve Seat MaterialPowdered metal
FinishCast Aluminum
Valve Springs IncludedYes
UsageStreet/Performance
Valve Seat Machine Style3-angle
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedYes
QuantitySold individually
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)60
Exhaust Port LocationStandard
TypeComplete
Combustion Chamber Volume (Cc)60
Machined For O-RingNo
PreparationBolt On (Not Required)
Cylinder Head StyleAssembled
Part FitmentSemi Universal
Valve Cover Mounting StylePerimeter bolt
Valve Stem Seal StylePositive stop
Intake Runner Volume (Cc)170
Cnc-Machined Exhaust RunnerNo
Vendor Part Number60399
Package Qty1
Package TypeEA
