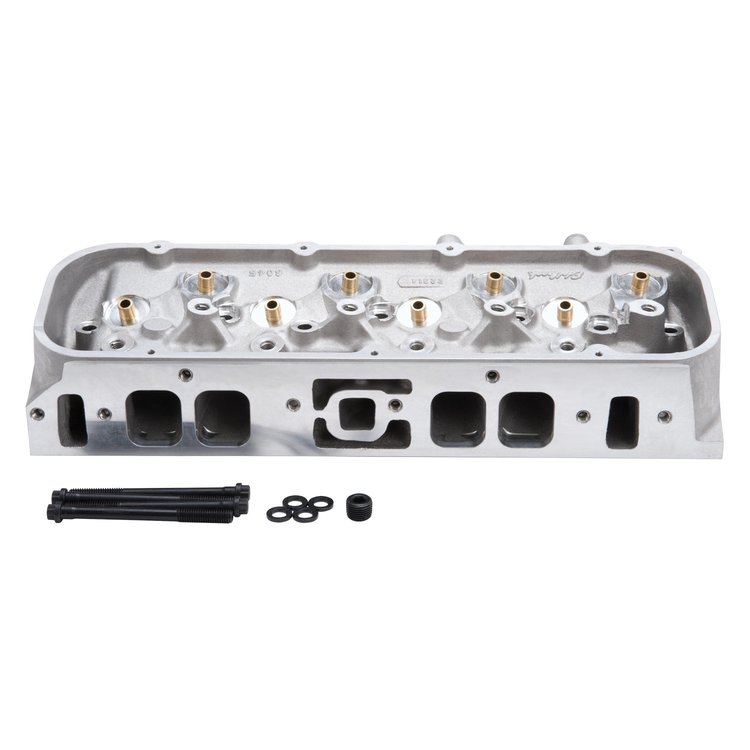

Street Legal Performer Cylinder Heads
- Big Block Chevy 396-502ci
- Port Volume: 290cc/110cc
- 110cc Combustion Chambers
- Bare, Sold Individually
Performer 454-O cylinder heads have the same outstanding features as the Performer RPM heads but with an exhaust crossover passage for a 50-state emissions legal status (E.O. #D-215-16). Match these powerful heads with our Performer manifold, Performer-Plus cam and an Edelbrock square-bore or spread-bore carburetor.Tech Tip: To gain more spark plug clearance, Edelbrock recommends using Champion RC Series plugs such as the RC12YC (P/N 192-49776). They are 0.230' shorter than a conventional spark plug and have a 5/8' hex for easier access.
Valve Lift Intake Exhaust .100' 74 71 .200' 143 128 .300' 207 153 .400' 250 178 .500' 284 200 .600' 309 218 .700' N/A N/A Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28' H2O
Part TypeCylinder Head
BrandEDELBROCK
Package Height8.19
Package Width10.44
Package Length24.75
Weight43.93 PG
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake Port LocationStandard
Rocker Arm Nut Thread Size (In.)7/16"-20
Emission50 State Legal
Exhaust Valves IncludedNo
Locks IncludedNo
Engine Make/SizeChevy Big Block (396-502)
Retainers IncludedNo
Guideplates IncludedNo
Rocker Arms IncludedNo
Oiling StyleThrough pushrod
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Valve Seats MachinedNo
Intake Valve Angle26
Valve Seat MaterialDuctile iron
Heat CrossoverYes
FinishCast Aluminum
Valve Springs IncludedNo
UsageStreet/Performance
Damper Spring IncludedNo
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedNo
Combustion Chamber StyleSemi-open
QuantitySold individually
Cylinder Head TypeOval Port- Large
Valve Stem Seals IncludedNo
Intake Valve Diameter2.19 in (55.626 mm)
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)110
Exhaust Port LocationStandard
Valve Guide MaterialManganese bronze
TypeBare
Combustion Chamber Volume (Cc)110
Machined For O-RingNo
PreparationRequires Professional Preparation (Bare)
Steam Holes DrilledNo
Rocker Arm Studs IncludedNo
Cylinder Head StyleBare
Valve Cover Mounting StylePerimeter bolt
Intake Runner Volume (Cc)290
Cnc-Machined Exhaust RunnerNo
Cnc-Machined Combustion ChamberNo
Exhaust Valve Diameter1.88 in (47.752 mm)
Vendor Part Number60469
Package Qty1
Package TypeEA
