Made in USA
*USED HEAD SNG PERF COMP
Product Discontinued
EDELBROCKPART NUMBER: 350-60519U

*USED HEAD SNG PERF COMP

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

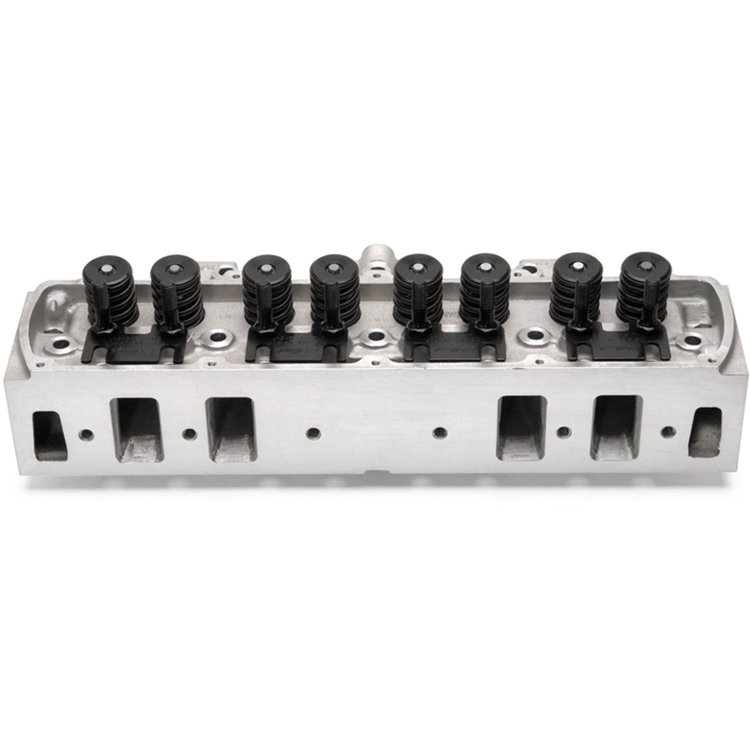

Oldsmobile Performer RPM Aluminum Cylinder Heads
    *USED Oldsmobile Performer RPM Cylinder Head
  • 1965-76 400-455ci
  • 188cc Intake Ports
  • 77cc Combustion Chambers
  • 2.072"/1.68" Valves
  • 1.46" Valve Spring Diameter
  • Max Lift: .575"
  • 7/6" Rocker Studs
  • Assembled, Sold Each
  • USED

    Recommended intake gasket is Mr Gasket #720-404.
    Aftermarket 7/16' stud rocker arms and 3/8' hardened pushrods required.

    Tech Tip: To gain more spark plug clearance, Edelbrock recommends using Champion RC Series plugs such as the RC12YC (P/N 192-49776). They are 0.230' shorter than a conventional spark plug and have a 5/8' hex for easier access.

    Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

    Designed for high-performance non-emission 1965-76 Oldsmobile 400, 425 and 455 cubic-inch engines with Torker 455 manifold #350-2730. This head features an improved 77cc combustion chamber design that increases the quench area for a more efficient burn. This results in outstanding horsepower and torque.

    These complete heads are assembled and ready-to-run with stainless steel 2.072'' intake valves and 1.680'' exhaust valves, hardened ductile iron valve seats and phosphor bronze guides. The valvetrain has been upgraded from the factory pedestal-mount system to a 7/16'' screw-in stud and 3/8'' pushrod-slot guideplate for increased valvetrain stability.

    The high-velocity, factory location ports feature 188cc intake runners and 106cc raised-floor exhaust runners for substantially improved flow and increased power. Head bolt holes are drilled for the stock 7/16'' bolts, but can be easily modified for 1/2'' bolts or studs by drilling the 1/2'' counterbore. Aftermarket rocker arms and hardened pushrods are required for installation. These heads will fit 350-403 Oldsmobiles with Edelbrock manifold #350-7111 only (port matching required). Made In The USA!



    Features:
  • Combustion Chamber Volume: 77cc
  • Intake Runner Volume: 188cc
  • Exhaust Runner Volume: 106cc
  • Intake Valve Diameter: 2.072"
  • Exhaust Valve Diameter" 1.68
  • Valve Stem Diameter: 11/32"
  • Valve Guides: Manganese Bronze
  • Deck Thickness: 5/8"
  • Valve Spring Diameter: 1.46"
  • Valve Spring Maximim Lift: .575"
  • Rocker Stud: 7/16"
  • Guideplate: Hardended Steel
  • Pushrod Diameter: 3/8"
  • Valve Angle: 18&
  • Exhaust Port Location: Stock
  • Spark Plug Fitment: 14mm x 3/4 Reach, Gasket Seat
  • Made In The USA!
Product LineEdelbrock Oldsmobile Performer RPM Cylinder Heads
BrandEDELBROCK
Package Height9.0
Package Width12.8
Package Length25.4
Weight35.22 PG
Part CategoryPerformance Parts
Vendor Part NumberIRD130.1003
Package Qty1
Package TypeEA
