Made in USA
Performer RPM Cylinder Heads for Oldsmobile V8
Product Discontinued
EDELBROCKPART NUMBER: 350-60529

Performer RPM Cylinder Heads for Oldsmobile V8

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

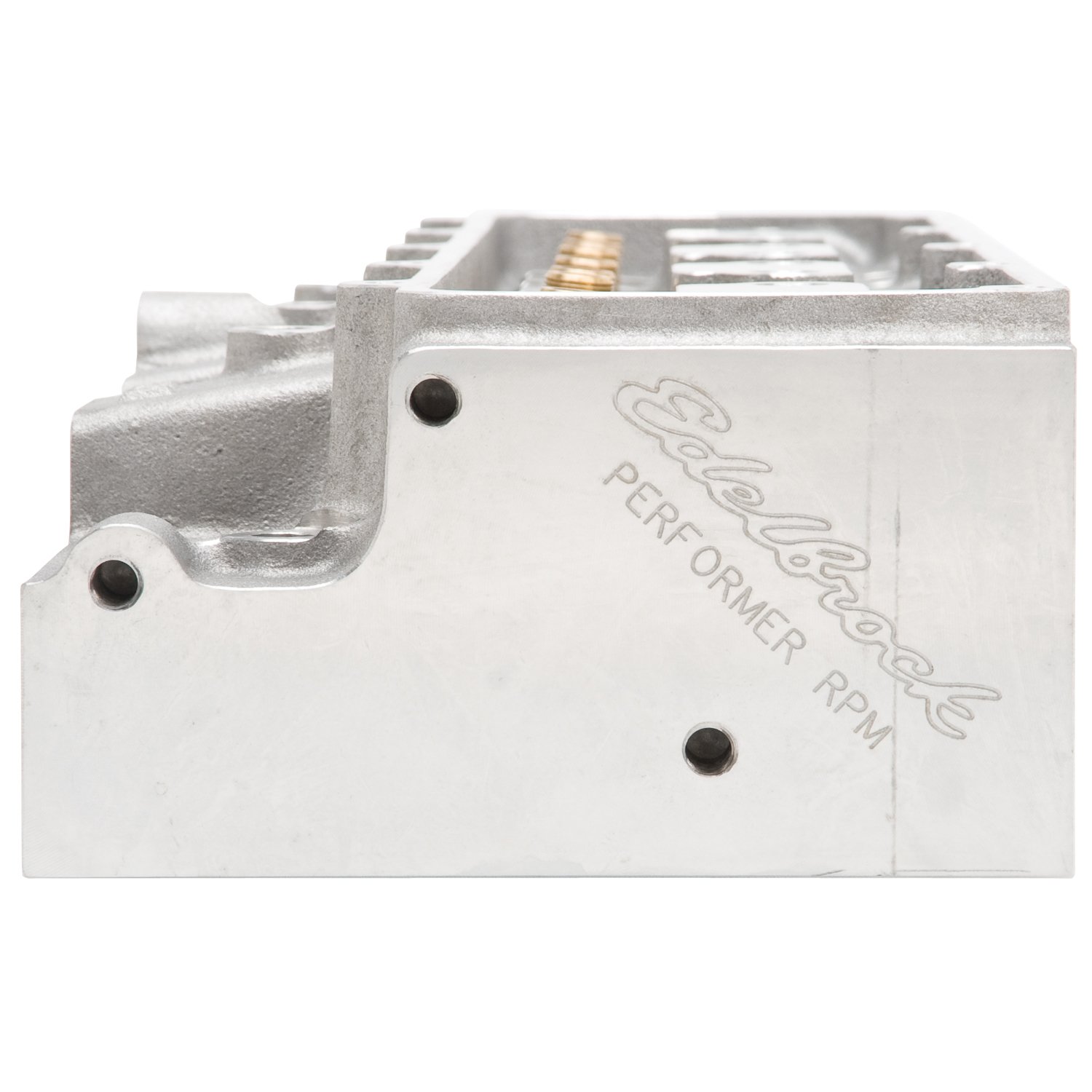

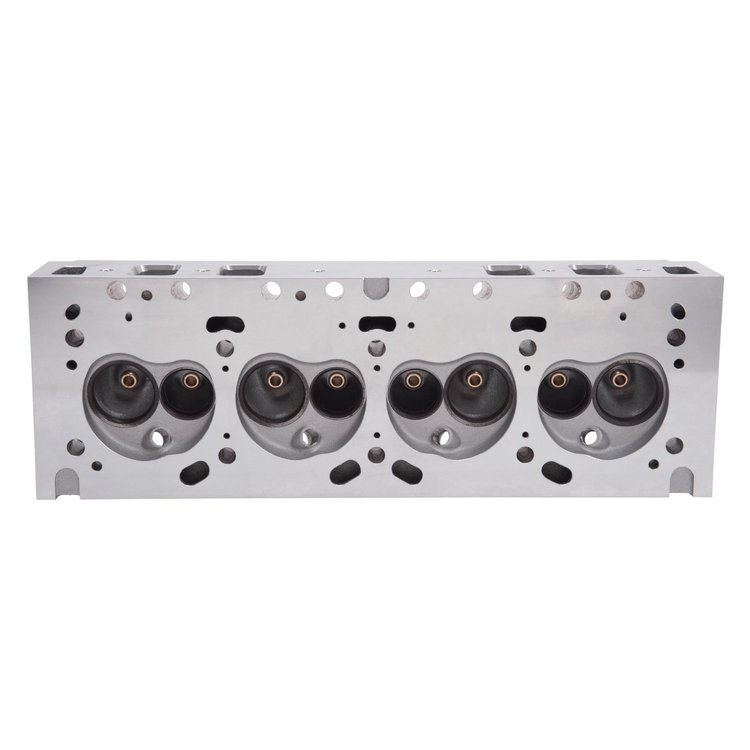

Oldsmobile Performer RPM Aluminum Cylinder Heads
    Oldsmobile Performer RPM Cylinder Head
  • 1965-1976 400-455ci
  • Port Volume: 188cc/106cc
  • 77cc Combustion Chambers
  • 7/6" Rocker Studs
  • Bare Head, Sold Individually

    Aftermarket 7/16' stud rocker arms and 3/8' hardened pushrods required.

    Tech Tip: To gain more spark plug clearance, Edelbrock recommends using Champion RC Series plugs such as the RC12YC (P/N 192-49776). They are 0.230' shorter than a conventional spark plug and have a 5/8' hex for easier access.

    Combustion Chamber Volume:77cc
    Intake Runner Volume:188cc
    Exhaust Runner Volume:106cc
    Intake Valve Diameter:2.072'
    Exhaust Valve Diameter:1.68'
    Valve Stem Diameter:11/32"
    Valve Guides:Manganese bronze
    Deck Thickness:5/8'
    Valve Spring Diameter:1.46"
    Valve Spring Maximum Lift:.575"
    Rocker Stud:7/16
    Guideplate:Hardened Steel
    Pushrod Diameter:3/8
    Valve Angle:18°
    Exhaust Port Location:Stock
    Spark Plug Fitment:14mm x 3/4' Reach,
    Gasket Seat


    Valve LiftIntakeExhaust
    .100'67-6754
    .200'131-131102
    .300'195-195137
    .400'245-247163
    .500'278-256179
    .600'268-259188
    .700'N/AN/A
    Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28' H2O

    Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

    Designed for high-performance non-emission 1965-76 Oldsmobile 400, 425 and 455 cubic-inch engines with Torker 455 manifold #350-2730. This head features an improved 77cc combustion chamber design that increases the quench area for a more efficient burn. This results in outstanding horsepower and torque.

    These complete heads are assembled and ready-to-run with stainless steel 2.072'' intake valves and 1.680'' exhaust valves, hardened ductile iron valve seats and phosphor bronze guides. The valvetrain has been upgraded from the factory pedestal-mount system to a 7/16'' screw-in stud and 3/8'' pushrod-slot guideplate for increased valvetrain stability.

    The high-velocity, factory location ports feature 188cc intake runners and 106cc raised-floor exhaust runners for substantially improved flow and increased power. Head bolt holes are drilled for the stock 7/16'' bolts, but can be easily modified for 1/2'' bolts or studs by drilling the 1/2'' counterbore. Aftermarket rocker arms and hardened pushrods are required for installation. These heads will fit 350-403 Oldsmobiles with Edelbrock manifold #350-7111 only (port matching required). Made In The USA!



    Features:
  • Combustion Chamber Volume: 77cc
  • Intake Runner Volume: 188cc
  • Exhaust Runner Volume: 106cc
  • Intake Valve Diameter: 2.072"
  • Exhaust Valve Diameter" 1.68
  • Valve Stem Diameter: 11/32"
  • Valve Guides: Manganese Bronze
  • Deck Thickness: 5/8"
  • Valve Spring Diameter: 1.46"
  • Valve Spring Maximim Lift: .575"
  • Rocker Stud: 7/16"
  • Guideplate: Hardended Steel
  • Pushrod Diameter: 3/8"
  • Valve Angle: 18&
  • Exhaust Port Location: Stock
  • Spark Plug Fitment: 14mm x 3/4 Reach, Gasket Seat
  • Made In The USA!
Part TypeCylinder Head
Product LineEdelbrock Oldsmobile Performer RPM Cylinder Heads
BrandEDELBROCK
Package Height8.7
Package Width11.2
Package Length25.8
Weight31.15 PG
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake Port LocationStandard
EmissionNon-Emissions
Exhaust Valves IncludedNo
Locks IncludedNo
Engine Make/SizeOlds 400-455
Retainers IncludedNo
Guideplates IncludedNo
Rocker Arms IncludedNo
Oiling StyleThrough pushrod
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Valve Seats MachinedNo
Intake Valve Angle18
Valve Seat MaterialDuctile iron
Heat CrossoverNo
FinishCast Aluminum
Valve Springs IncludedNo
UsageStreet/Performance
Damper Spring IncludedNo
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedNo
Combustion Chamber StyleHeart
QuantitySold individually
Cylinder Head TypeStandard
Valve Stem Seals IncludedNo
Intake Valve Diameter2.072 in (52.629 mm)
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)106
Exhaust Port LocationStandard
Valve Guide MaterialManganese bronze
TypeBare
Combustion Chamber Volume (Cc)77
Machined For O-RingNo
PreparationRequires Professional Preparation (Bare)
Steam Holes DrilledNo
Rocker Arm Studs IncludedNo
Cylinder Head StyleBare
Part FitmentSemi Universal
Valve Cover Mounting StylePerimeter bolt
Intake Runner Volume (Cc)188
Cnc-Machined Exhaust RunnerNo
Cnc-Machined Combustion ChamberNo
Exhaust Valve Diameter1.68 in (42.672 mm)
Vendor Part Number60529
Package Qty1
Package TypeEA
