This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
- 1986-Earlier Small Block Chevy
- Valve Springs for Hydraulic Flat Tappet Camshaft
- Port Volumes: 185cc/65cc
- Valve Size: 2.02"/1.90"
- 70cc Combustion Chamber
- Max Lift: .575"
- Complete Head, Sold Individually
- Polished
Combustion Chamber Volume: 64cc or 70cc Intake Runner Volume: 185cc Exhaust Runner Volume: 65cc Intake Valve Diameter: 2.02' Exhaust Valve Diameter: 1.60' Valve Stem Diameter: 11/32' Valve Guides: Manganese Bronze Deck Thickness: 5/8' Valve Spring Diameter: 1.46' Valve Spring Maximum Lift: 0.575' Rocker Stud: 3/8' Guideplate: Hardened Steel Pushrod Diameter: 5/16' Valve Angle: 23° Exhaust Port Location: Stock Spark Plug Fitment: 14mm x 3/4' Reach,
Gasket SeatValve Lift Intake Exhaust .100' 63 51 .200' 124 94 .300' 181 128 .400' 227 146 .500' 253 157 .600' 253 163 .700' N/A N/A Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28' H2O
Installation Notes: When using stock rockers on S/B Chevy Performer & Performer RPM heads, .100' longer than stock pushrods are required. Due to valve-to-cylinder bore interference, SB-Chevy heads may not be used on engines with less than 4' bore (262, 265, 283, 305, 307 c.i.d.) except with camshafts having less than .450' valve lift. Requires hardened pushrods.Tech Tip: To gain more spark plug clearance, Edelbrock recommends using Champion RC Series plugs such as the RC12YC (P/N 192-49776). They are 0.230' shorter than a conventional spark plug and have a 5/8' hex for easier access.
Heat crossover is machined for 50-state emissions legal performance.
Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

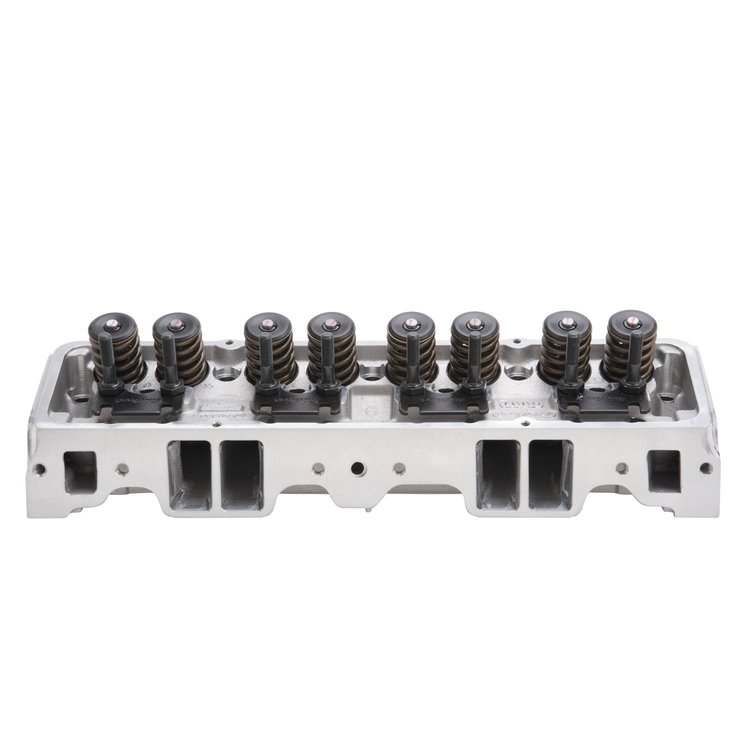

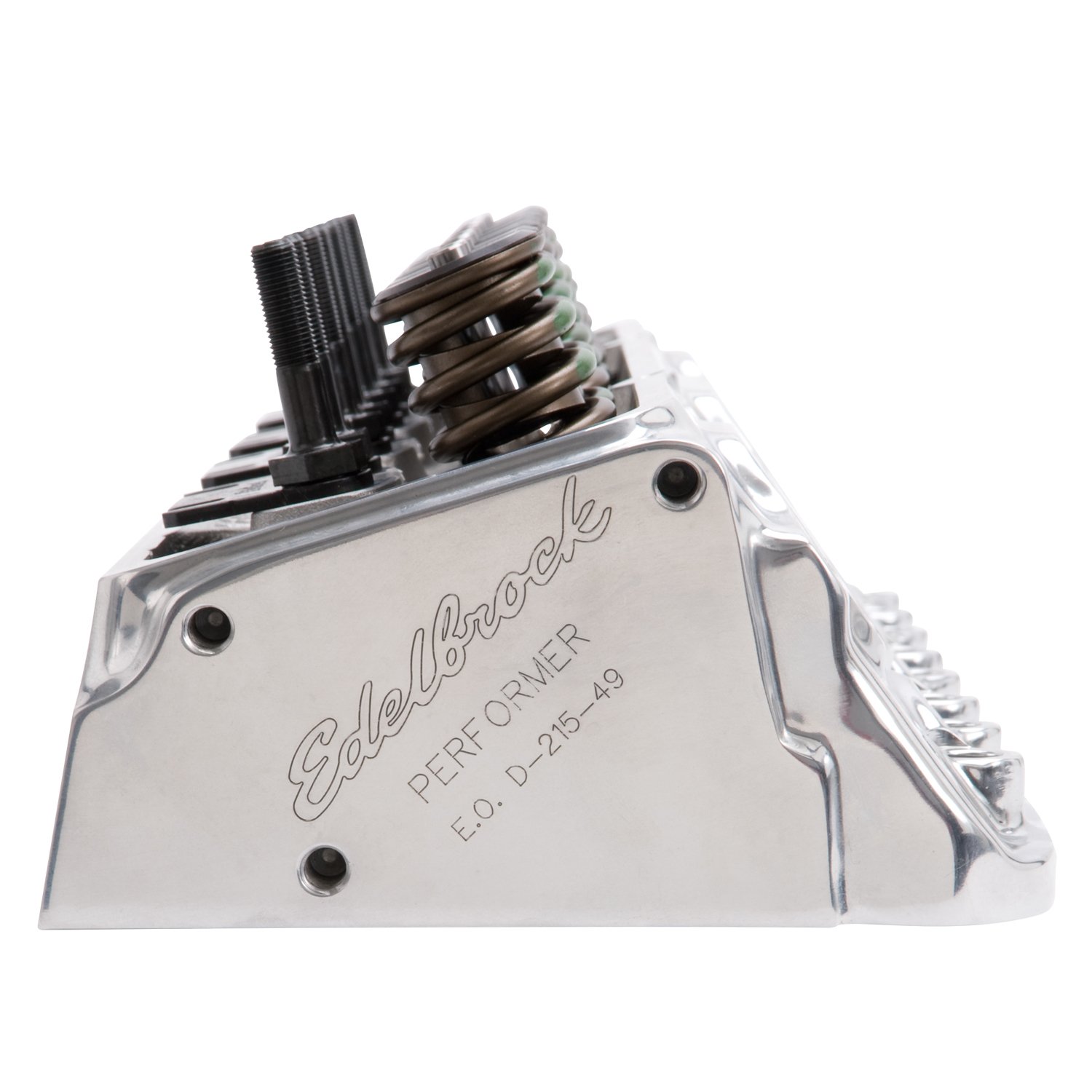

Edelbrock Performer Aluminum Cylinder Heads are designed, cast and manufactured in the USA for unsurpassed quality. The top quality features incorporated into these heads include: highly effecient port design, state-of-the-art combustion chamber shapes, manganese-bronze valve guides, and threaded inserts in the exhaust bolt holes and rocker stud holes for strength and durability. They provide great torque and horsepower up to 5500 rpm and are 50 state emissions legal to fit emissions controlled engines, E.O. Number D-215-49!Items You Need
