Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

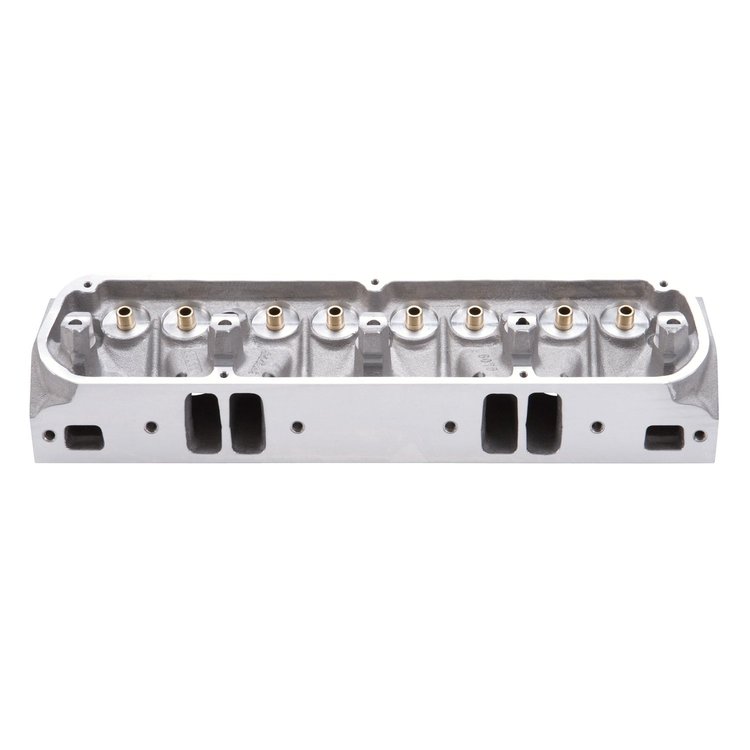

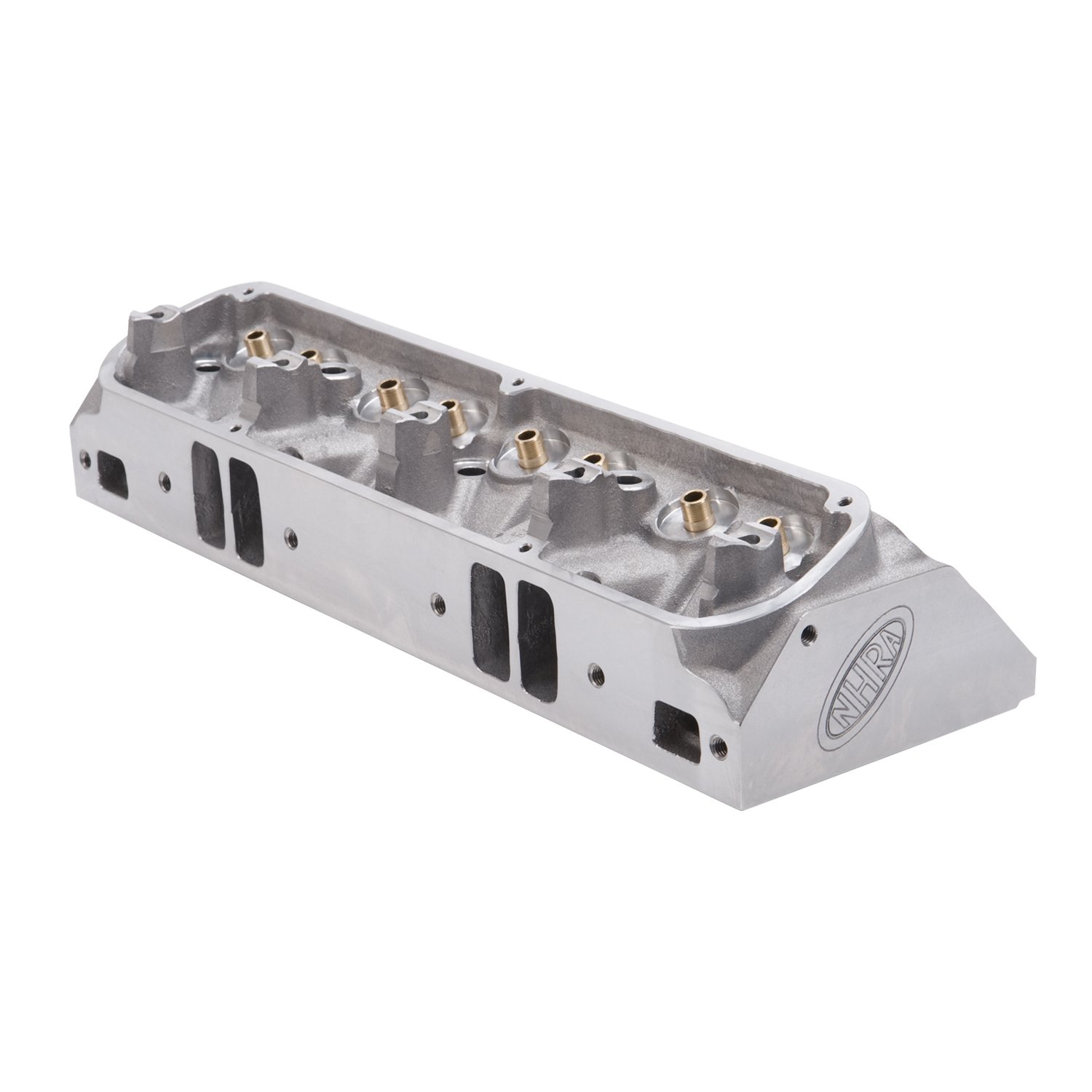

Chrysler
- NHRA Stock/Super Stock Legal Cylinder Head
- 1967-1991 Small Block Chrysler 318-360ci
- Port Volume: 171cc/77cc
- 63cc Combustion Chambers
- Bare, Sold Individually
Chamber Volume: 63cc
Deck Height: 5/8"
Intake Volume: 171cc
Exhaust Port Volume: 77cc
Valve Sizes Int./Exh.: 2.02 / 1.65
Valve Guide Included: Yes
The special valvetrain in the 1970 340 T/A is not compatible with these cylinder heads.
Part TypeCylinder Head
BrandEDELBROCK
Package Height8.5
Package Width11.0
Package Length11.0
Weight27.45 PG
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake Port LocationStandard
EmissionN/A
Exhaust Valves IncludedNo
Locks IncludedNo
Engine Make/SizeMopar 318-360
Retainers IncludedNo
Guideplates IncludedNo
Rocker Arms IncludedNo
Oiling StyleThrough head
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Valve Seats MachinedNo
Intake Valve Angle18
Valve Seat MaterialDuctile iron
Heat CrossoverNo
FinishCast Aluminum
Valve Springs IncludedNo
UsageRacing
Damper Spring IncludedNo
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedNo
QuantitySold individually
Cylinder Head TypeStandard
Valve Stem Seals IncludedNo
Intake Valve Diameter2.02 in (51.308 mm)
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)77
Exhaust Port LocationStandard
Valve Guide MaterialManganese bronze
TypeBare
Combustion Chamber Volume (Cc)63
Machined For O-RingNo
PreparationRequires Professional Preparation (Bare)
Steam Holes DrilledNo
Rocker Arm Studs IncludedNo
Cylinder Head StyleBare
Valve Cover Mounting StylePerimeter bolt
Intake Runner Volume (Cc)171
Cnc-Machined Exhaust RunnerNo
Cnc-Machined Combustion ChamberNo
Exhaust Valve Diameter1.6 in (40.64 mm)
Vendor Part Number60767
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
