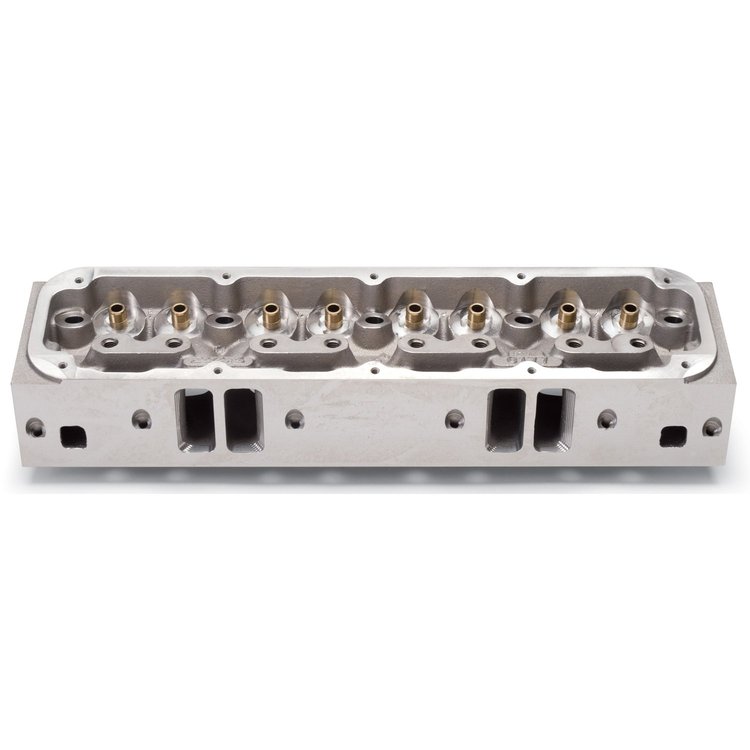

Performer RPM Cylinder Head for Small Block Chrysler

Name: Performer RPM Cylinder Head for Small Block Chrysler
Brand: EDELBROCK
SKU: 350-60769
Price: 852.95 USD
Availability: InStock

^$852⁹⁵

4 left in stock

Ships Tomorrow

Lowest Price Guarantee

Small Block Chrysler Performer RPM 63cc Aluminum Cylinder Heads

1967-1991 Small Block Chrysler 318-360ci
Port Volume: 171cc/77cc
63cc Combustion Chambers

Bare, Sold Individually

Designed for outstanding performance in non-emission 1967-1991 Chrysler 318-340-360 engines. For compatibility with aftermarket parts, these heads use the stock location for intake and exhaust bolt holes and flanges, spark plugs, and valve cover rails. The special valvetrain in the 1970 340 T/A is not compatible with these cylinder heads.

Tech Tip
To gain more spark plug clearance, Edelbrock recommends using Champion RC Series plugs, such as the RC12YC (P/N 192-49776). They are 0.230' shorter than conventional spark plugs and have a 5/8' hex for easier access.

Combustion Chamber Volume:	63cc
Intake Runner Volume:	171cc
Exhaust Runner Volume:	77cc
Intake Valve Diameter:	2.02'
Exhaust Valve Diameter:	1.60'
Valve Stem Diameter:	11/32'
Valve Guides:	Manganese Bronze
Deck Thickness:	5/8'
Valve Spring Diameter:	1.46'
Valve Spring Maximum Lift:	0.575'
Rocker Stud:	N/A
Guideplate:	Hardened Steel
Pushrod Diameter:	5/16'
Valve Angle:	18°
Exhaust Port Location:	Stock
Spark Plug Fitment:	14mm x 3/4' Reach, Gasket Seat

Valve Lift	Intake	Exhaust
.100'	69	64
.200'	129	108
.300'	188	142
.400'	232	171
.500'	249	183
.600'	251	190
.700'	N/A	N/A
Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28' H2O

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

Performer RPM Chrysler heads deliver outstanding performance in 1967-1991 318/340/360ci, 1968-1973 340ci and modern 2003-2018 5.7L/6.1L/6.2L/6.4L HEMI engines. All Edelbrock Cylinder Heads are manufactured in the USA for unsurpassed quality.

Part TypeCylinder Head

Product LineEdelbrock Small Block Chrysler Performer RPM Cylinder Heads

BrandEDELBROCK

Package Height9.0

Package Width11.1

Package Length26.1

Weight27.2 PG

Part CategoryPerformance Parts

Cylinder Head MaterialAluminum

Intake Port LocationStandard

EmissionNon-Emissions

Exhaust Valves IncludedNo
