This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
- 1958-1965 Chevy "W" Series Big Block
- Port Volumes: 220cc/115cc
- 16cc Combustion Chamber
- Bare Head, Sold Individually
Installation Notes - Original port locations and valve angles for bolt-on convenience
- Hardened spring cups, screw-in rocker studs and hardened guideplates
- Valve lift must be less than .550" on 348 engines.
- Will only fit 1958-1965 348 if using Edelbrock 350-5409, 350-7159, or stock large port 409 intake manifolds.
- 1958 348 c.i.d. applications will require modifications to cylinder head (contact Edelbrock tech department for detailed information)
- Proper cylinder wall notching must be checked to ensure exhaust valve to cylinder clearance.
Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

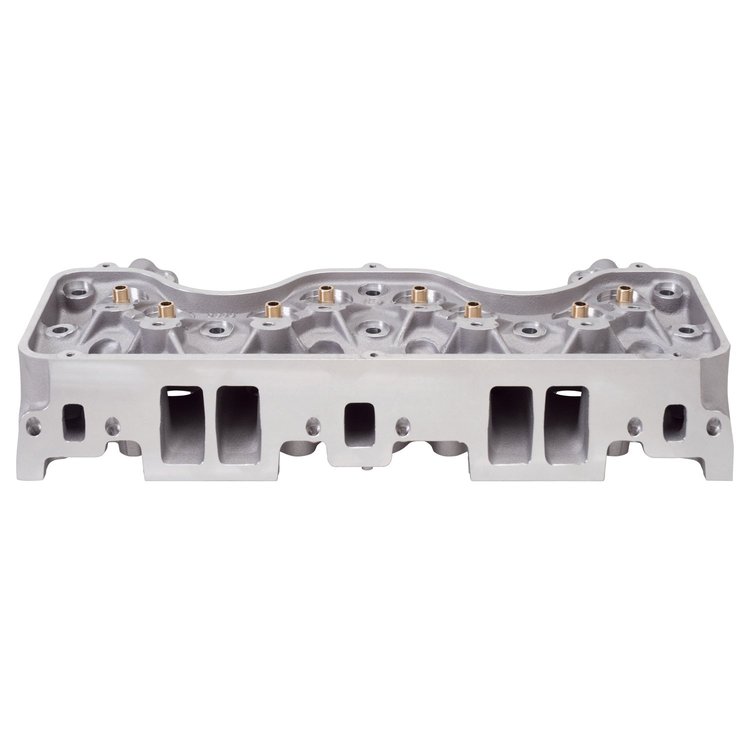

Designed for 1961-65 Chevrolet "W" series 348/409 big blocks engines. These heads have improved port design for more performance, original port locations and valve angles for bolt-on convenience; CNC port match 220cc intake and 115cc exhaust ports for optimum flow and power, hardened spring cups, screw-in rocker studs an hardened guide plates. Made In The USA!
Features:
- Intake Runner Volume: 215cc
- Exhaust Runner Volume: 115cc
Show More
- Intake Valve Diameter: 2.19"
- Exhaust Valve Diameter: 1.72"
- Valve Stem Diameter: 11/32"
- Valve Guides: Manganese Bronze
- Deck Thickness: 9/16"
- Valve Spring Diameter: 1.55"
- Vavle Spring Maximum Lift: .600"
- Rocker Stud: 7/16"
- Guideplate: Hardened Steel
- Pushrod Diameter: 3/8"
- Valve Angle: 0
- Exhaust Port Location: Stock
- Spark Plug Fitment: 14mm x 3/4 Reach, Gasket Seat
