Product Discontinued
EDELBROCKPART NUMBER: 350-60849

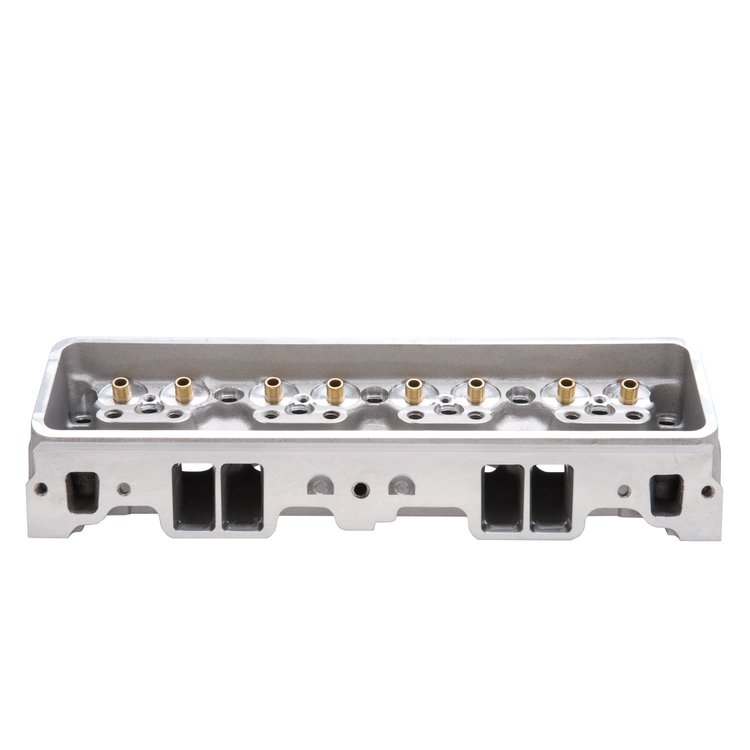

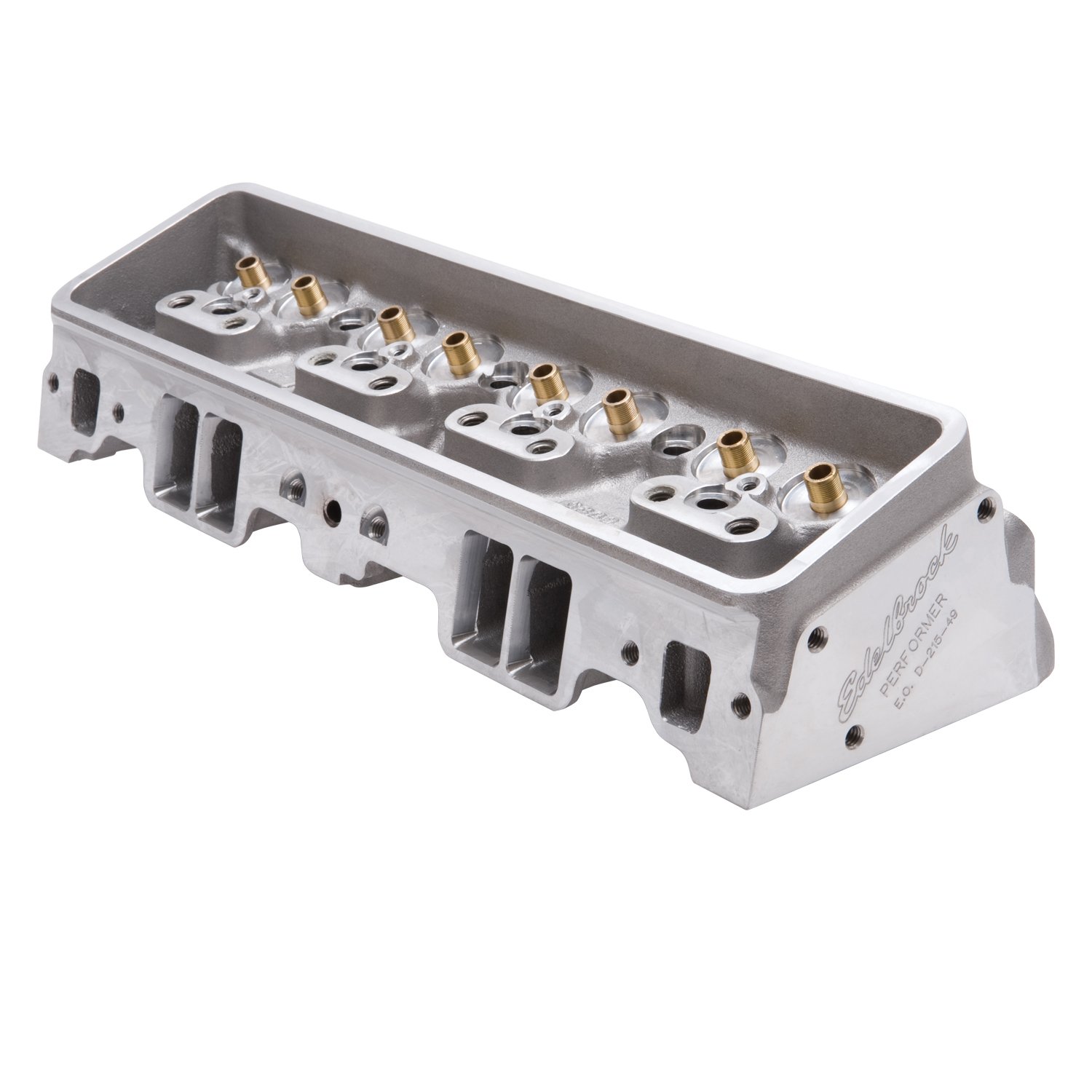

Performer Aluminum Cylinder Heads for 1987-1995 Small Block Chevy Bare
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
1987-95 Small Block Chevy
- 1987-1995 Small Block Chevy (Centerbolt Valve Covers)
- Port Volumes: 165cc/65cc
- 60cc Combustion Chamber
- Bare Head, Sold Individually
Technical Notes: - Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat.
- Requires hardened pushrods. Recommend Edelbrock 350-9629 for flat tappet cams only
- If using stock rockers, use .100" longer than stock pushrods.
- Can not be used on engines with less than a 4" bore except with cams having less than .450" lift.
- Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using.
Combustion Chamber Volume: 60cc Intake Runner Volume: 165cc Exhaust Runner Volume: 65cc Intake Valve Diameter: 2.02' Exhaust Valve Diameter: 1.60' Valve Stem Diameter: 11/32' Valve Guides: Manganese Bronze Deck Thickness: 5/8' Valve Spring Diameter: 1.46' Valve Spring Maximum Lift: 0.575' Rocker Stud: 3/8' Guideplate: Hardened Steel Pushrod Diameter: 5/16' Valve Angle: 23° Exhaust Port Location: Stock Spark Plug Fitment: 14mm x 3/4' Reach,
Gasket SeatValve Lift Intake Exhaust .100' 64 54 .200' 122 96 .300' 177 124 .400' 217 147 .500' 229 166 .600' 232 175 .700' N/A N/A Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28' H2O
Part TypeCylinder Head
BrandEDELBROCK
Package Height8.7
Package Width11.3
Package Length26.1
Weight24.55 PG
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake Port LocationStandard
Emission50 State Legal
Exhaust Valves IncludedNo
Locks IncludedNo
Engine Make/SizeChevy Small Block (262-400)
Retainers IncludedNo
Guideplates IncludedNo
Rocker Arms IncludedNo
Oiling StyleThrough pushrod
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Valve Seats MachinedNo
Intake Valve Angle23
Valve Seat MaterialPowdered metal
Heat CrossoverYes
FinishCast Aluminum
Valve Springs IncludedNo
Spark Plug StyleStraight
UsageStreet/Performance
Damper Spring IncludedNo
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedNo
QuantitySold individually
Cylinder Head TypeCenter Bolt (87-95)
Valve Stem Seals IncludedNo
Intake Valve Diameter2.02 in (51.308 mm)
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)65
Exhaust Port LocationStandard
Valve Guide MaterialManganese bronze
TypeBare
Combustion Chamber Volume (Cc)60
Machined For O-RingNo
PreparationRequires Professional Preparation (Bare)
Steam Holes DrilledNo
Rocker Arm Studs IncludedNo
Cylinder Head StyleBare
Valve Cover Mounting StyleCenterbolt
Intake Runner Volume (Cc)165
Cnc-Machined Exhaust RunnerNo
Cnc-Machined Combustion ChamberNo
Exhaust Valve Diameter1.6 in (40.64 mm)
Vendor Part Number60849
Package Qty1
Package TypeEA
