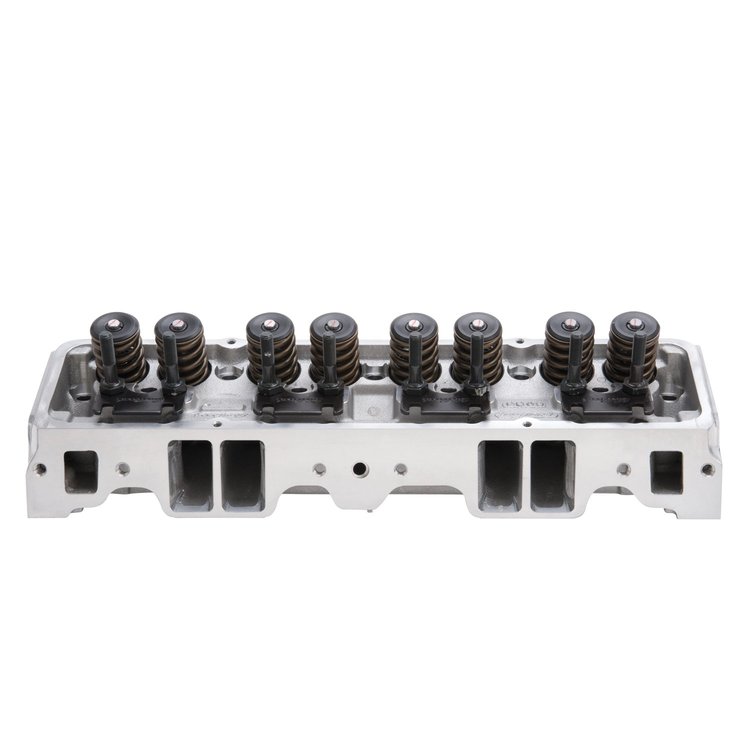

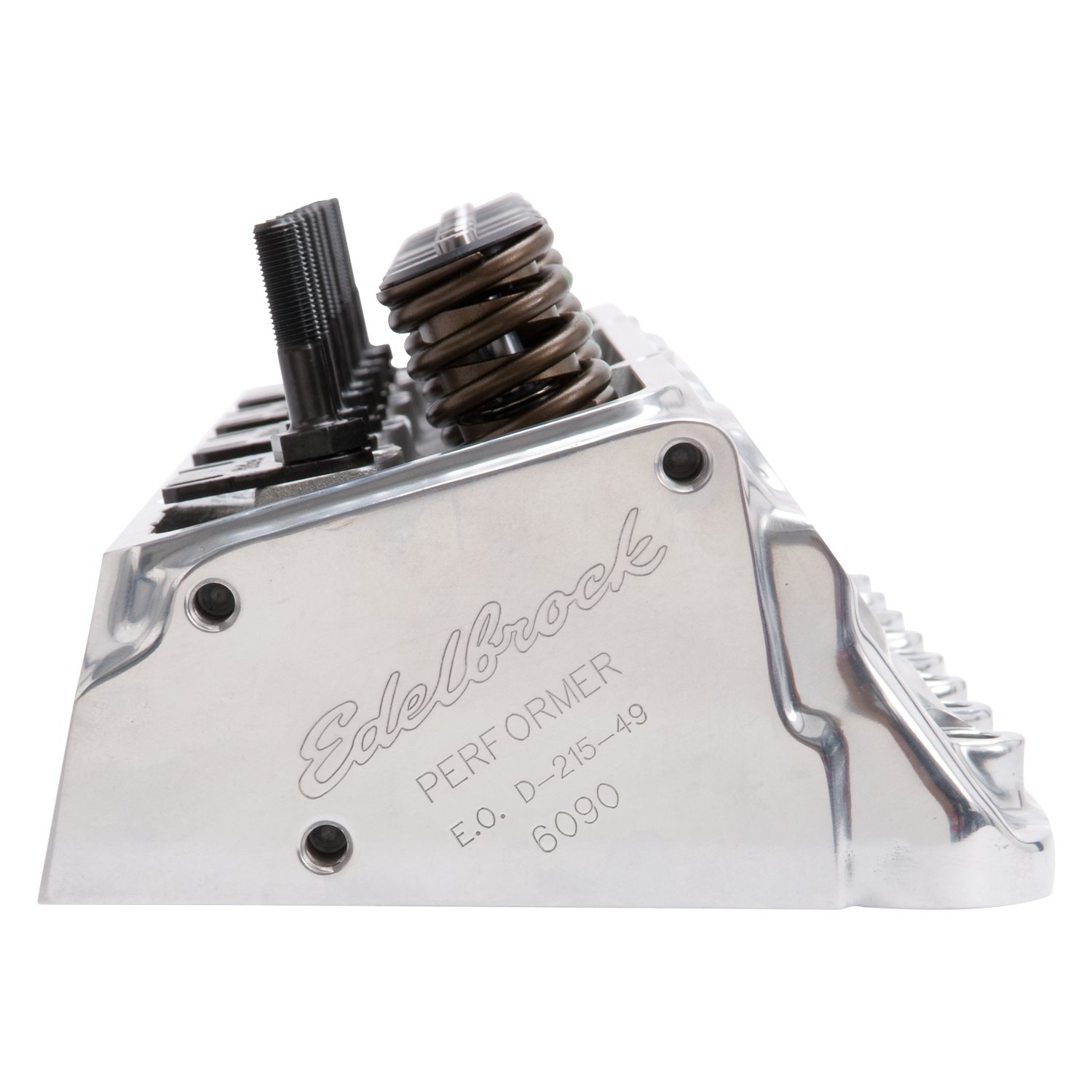

Performer Polished Aluminum Cylinder Head for Small Block Chevy

Name: Performer Polished Aluminum Cylinder Head for Small Block Chevy
Brand: EDELBROCK
SKU: 350-609019
Price: 927.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

1986-Earlier Small Block Chevy

1986-Earlier Small Block Chevy
Valve Springs for Hydraulic Flat Tappet Camshaft
Port Volumes: 185cc/65cc
Valve Size: 2.02"/1.90"
64cc Combustion Chamber
Max Lift: .575"
Complete Head, Sold Individually

Polished

Combustion Chamber Volume:	64cc or 70cc
Intake Runner Volume:	185cc
Exhaust Runner Volume:	65cc
Intake Valve Diameter:	2.02'
Exhaust Valve Diameter:	1.60'
Valve Stem Diameter:	11/32'
Valve Guides:	Manganese Bronze
Deck Thickness:	5/8'
Valve Spring Diameter:	1.46'
Valve Spring Maximum Lift:	0.575'
Rocker Stud:	3/8'
Guideplate:	Hardened Steel
Pushrod Diameter:	5/16'
Valve Angle:	23°
Exhaust Port Location:	Stock
Spark Plug Fitment:	14mm x 3/4' Reach, Gasket Seat

Valve Lift	Intake	Exhaust
.100'	63	51
.200'	126	97
.300'	180	129
.400'	227	148
.500'	250	158
.600'	249	165
.700'	N/A	N/A
Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28' H2O

Installation Notes: When using stock rockers on S/B Chevy Performer & Performer RPM heads, .100' longer than stock pushrods are required. Due to valve-to-cylinder bore interference, SB-Chevy heads may not be used on engines with less than 4' bore (262, 265, 283, 305, 307 c.i.d.) except with camshafts having less than .450' valve lift. Requires hardened pushrods.

Tech Tip: To gain more spark plug clearance, Edelbrock recommends using Champion RC Series plugs such as the RC12YC (P/N 192-49776). They are 0.230' shorter than a conventional spark plug and have a 5/8' hex for easier access.

Heat crossover is machined for 50-state emissions legal performance.

Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

Part TypeCylinder Head

Product LineEdelbrock Small Block Chevy Performer Aluminum Cylinder Heads

BrandEDELBROCK

Package Height8.7

Package Width11.3

Package Length25.9

Weight30.2 PG

Part CategoryPerformance Parts

Maximum Valve Lift0.575 in (14.605 mm)

Part FitmentSemi Universal

Vendor Part Number609019

Package Qty1
