Made in USA

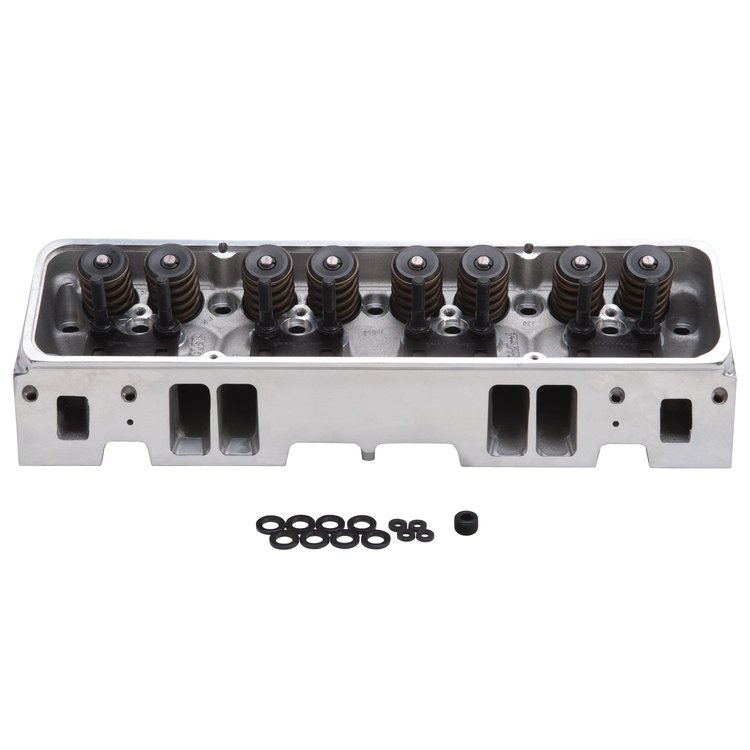

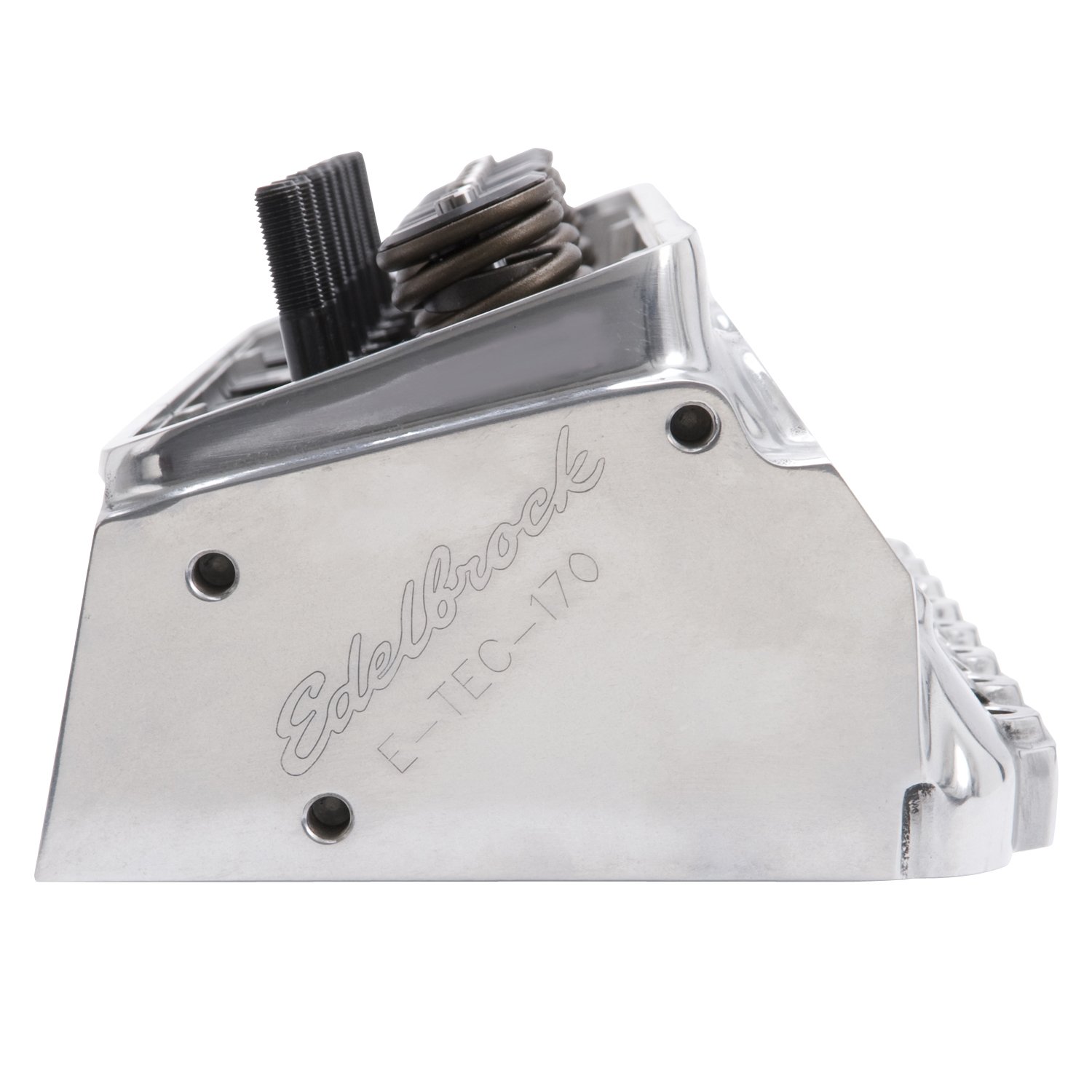

E-TEC 170 Cylinder Head Polished for Small Block Chevy
Product Discontinued
EDELBROCKPART NUMBER: 350-609719

E-TEC 170 Cylinder Head Polished for Small Block Chevy

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

E-TEC 170 Aluminum Cylinder Heads
  • Small Block Chevy 302-400ci
  • Equipped With Springs For Hydraulic Flat Tappet Camshaft
  • Port Volumes: 170cc/70cc
  • Valve Size: 1.94"/1.55"
  • Combustion Chamber Size: 64cc
  • Assembled, Sold Individually
  • Polished Finish

    Edelbrock E-Tec heads are replacements for 302, 327, 350 & 400 c.i.d. S/B Chevy engines with 'Vortec-style' manifolds. They feature an LT1-style raised runner intake port design for increased air-flow and ultimate performance. A unique combustion chamber design positions the spark plug closer to the center of the cylinder, promoting a more efficient combustion resulting in more power. These heads include an adjustable rocker stud and guide plate set-up for use with adjustable rockers or washers to properly position the stud height to accommodate factory style self-aligning rocker arms. They have 20% more exhaust flow than cast iron Vortec heads, great performance up to 6000 rpm and can produce 9.5:1 compression with stock pistons in 350 cubic-inch engines. RPM E-Tec heads are dual-drilled and will accept 1987-95 centerbolt and/or 1986 & prior perimeter flange mount valve covers and most stock exhaust manifolds. E-Tec 170 heads are 50-state street legal.

    Installation Note: To use stock rockers on S/B Chevy heads, .100' longer than stock pushrods are required. S/B Chevy heads may not be used on engines with less than 4" bore (262, 265, 283, 305, 307 c.i.d.) except with cams having less than .450' valve lift.

    Tech Tip: To gain more spark plug clearance, Edelbrock recommends using Champion RC Series plugs such as the RC12YC. They are 0.230' shorter than a conventional spark plug and have a 5/8' hex for easier access.

    Combustion Chamber Volume:64cc
    Intake Runner Volume:170cc
    Exhaust Runner Volume:70cc
    Intake Valve Diameter:1.94'
    Exhaust Valve Diameter:1.55'
    Valve Stem Diameter:11/32'
    Valve Guides:Manganese Bronze
    Deck Thickness:5/8'
    Valve Spring Diameter:1.46'
    Valve Spring Maximum Lift:0.575'
    Rocker Stud:3/8'
    Guideplate:Hardened Steel
    Pushrod Diameter:5/16'
    Valve Angle:23°
    Exhaust Port Location:Stock
    Spark Plug Fitment:14mm x 3/4' Reach,
    Gasket Seat

    Valve LiftIntakeExhaust
    .100'6454
    .200'130104
    .300'186140
    .400'220169
    .500'232183
    .600'238190
    .700'N/AN/A
    Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28' H2O

Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

Engineered to greatly increase performance and efficiency, E-TEC heads fit Small Block Chevy 302-400ci engines with ''Vortec'' style intake manifolds. These powerful heads incorporate Edelbrock's high-quench combustion chamber which promotes a more uniform atomization of the air/fuel mixture for more power. Spark plugs have been positioned closer to the center of the cylinder for more efficient combustion. Swirl-polished stainless steel valves provide maximum flow. They accept center bolt or standard valve covers, work with most stock exhaust manifolds and have intake and exhaust ports that are .200'' taller than typical Small Block Chevy heads. Match these heads with an Edelbrock Vortec intake manifold for the best results.

Show More

E-Tec heads are dual-drilled and will accept 1987-95 centerbolt and/or 1986 & prior perimeter flange mount valve covers and most stock exhaust manifolds.

Performer RPM E-TEC 170

  • 20% more exhaust flow than cast iron Vortec heads, good power up to 6,000 RPM
  • 64cc combustion chambers produce 9.5:1 compression with stock pistons on a 350ci engine
  • E-Tec 170 heads are 50-state street legal, E.O. Number D-215-49Performer RPM E-TEC 200
  • Outflow similar aluminum heads by 10% on the intake and 17% on the exhaust side
  • Make power up to 6,500 RPM
  • 64cc combustion chambers produce 10.2:1 compression with flat-top pistons in 350ci engines
  • CARB E.O. number pending
    Performer RPM E-TEC Aluminum Cylinder Head Specifications
    Performer RPM E-Tec:170200
    Combustion Chamber Volume64cc
    *Intake Runner Volume170cc200cc
    *Exhaust Runner Volume70cc80cc
    *Intake Valve Diameter1.94"2.02"
    *Exhaust Valve Diameter1.55"1.60"
    Valve Stem Diameter11/32"
    Valve GuidesManganese Bronze
    Deck Thickness5/8"
    Valve Spring Diameter1.46"
    Valve Spring Maximum Lift0.575"
    Rocker Stud3/8"
    GuideplateHardened Steel
    Pushrod Diameter5/16"
    Valve Angle23°
    Exhaust Port LocationStock
    Spark Plug Fitment14mm x 3/4" reach, gasket seat
    Made InUSA
    *Differences Between The 170 & 200 Heads
Part TypeCylinder Head
Product LineEdelbrock E-TEC Aluminum Cylinder Heads for Small Block Chevy
BrandEDELBROCK
Package Height8.18
Package Width10.43
Package Length24.75
Weight30.8 PG
Part CategoryPerformance Parts
UsageStreet/Performance
TypeComplete
PreparationBolt On (Not Required)
Emission50 State Legal
Cylinder Head TypeStandard
Part FitmentSemi Universal
FinishPolished
Engine Make/SizeChevy Small Block (262-400)
Vendor Part Number609719
Package Qty1
Package TypeEA
