Vehicle Info NeededEDELBROCKPART NUMBER: 350-61175

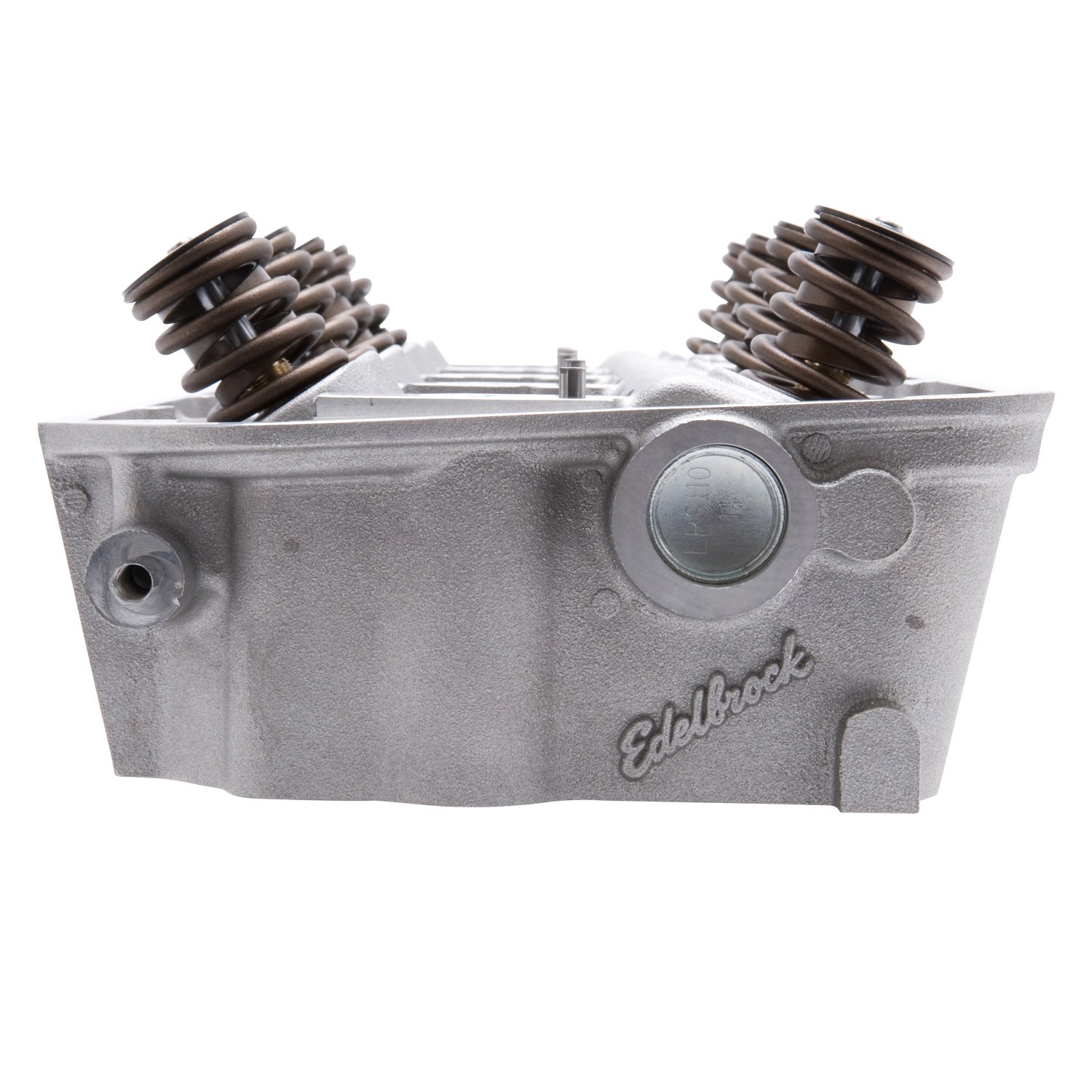

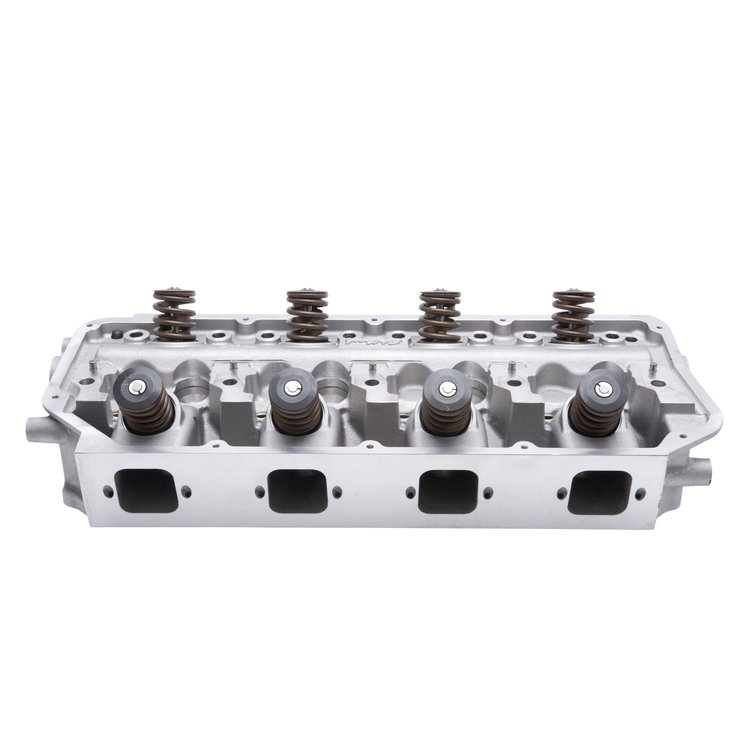

Victor Jr. CNC Cylinder Head for Chrysler HEMI
$1,92595
More than 10 available
Ships Today
Lowest Price Guarantee- Chysler 426-572 Hemi
- Valve Springs for Hydraulic Roller
- Port Volume: 245cc/105cc
- Valve Size: 2.32"/1.94"
- 170cc Combustion Chambers
- Max Lift: .700"
- Assmebled, Sold Individually
Victor Jr. Cylinder Heads are designed for high output 650+ hp Chrysler 426-572 HEMI® engines. They feature fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. These cylinder heads also feature a revised exhaust valve angle to accommodate larger intake valves. Brass tubes are installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion.
Specifications: - Combustion Chamber: 170cc
- Intake Runner Volume: 245cc
- Exhaust Runner Volume: 105cc
- Intake Valve Diameter: 2.32"
- Exhaust Valve Diameter: 1.94"
- Valve Stem Diameter: 5/16"
- Valve Guides: Maganese Bronze
- Deck Thickness: 5/8"
- Valve Spring Diameter:1.54"
- Valve Spring Maximum Lift:.700"
- Pushrod Diameter: 5/16" or 3/8"
- Valve Angle: Intake (stock) / Exhaust tipped 1.5° - 21.5°
- Exhaust Port Location: Stock
- Spark Plug Type: 14mm x 3/4", gasket seat
- Required Head Bolt Kit: Edelbrock p/n 350-8513
- Recommended Head Gasket: Edelbrock p/n 350-7347
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCylinder Head
BrandEDELBROCK
Package Height8.75
Package Width11.13
Package Length26.25
Weight35.05 PG
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake Port LocationStandard
EmissionNon-Emissions
Exhaust Valves IncludedYes
Locks IncludedYes
Engine Make/SizeMopar 426-572 Hemi
Retainers IncludedYes
Guideplates IncludedNo
Rocker Arms IncludedNo
Oiling StyleThrough pushrod
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Valve Seats MachinedYes
Maximum Valve Lift0.7 in (17.78 mm)
Heat CrossoverNo
FinishCast Aluminum
Number Of Springs Per ValveSingle
Valve Springs IncludedYes
Spark Plug StyleStraight
UsageRacing
Damper Spring IncludedYes
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedYes
QuantitySold individually
Cylinder Head TypeRectangular Port
Valve Stem Seals IncludedYes
Intake Valve Diameter2.32 in (58.928 mm)
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)105
Exhaust Port LocationStandard
Valve Guide MaterialManganese bronze
TypeComplete
Outside Diameter Of Outer Spring1.54 in (39.1 mm)
Combustion Chamber Volume (Cc)170
Machined For O-RingNo
PreparationFactory CNC Ported
Steam Holes DrilledNo
Rocker Arm Studs IncludedNo
Cylinder Head StyleAssembled
Part FitmentSemi Universal
Intake Runner Volume (Cc)245
Cnc-Machined Exhaust RunnerNo
Cnc-Machined Combustion ChamberYes
Exhaust Valve Diameter1.94 in (49.276 mm)
Vendor Part Number61175
Package Qty1
Package TypeEA
