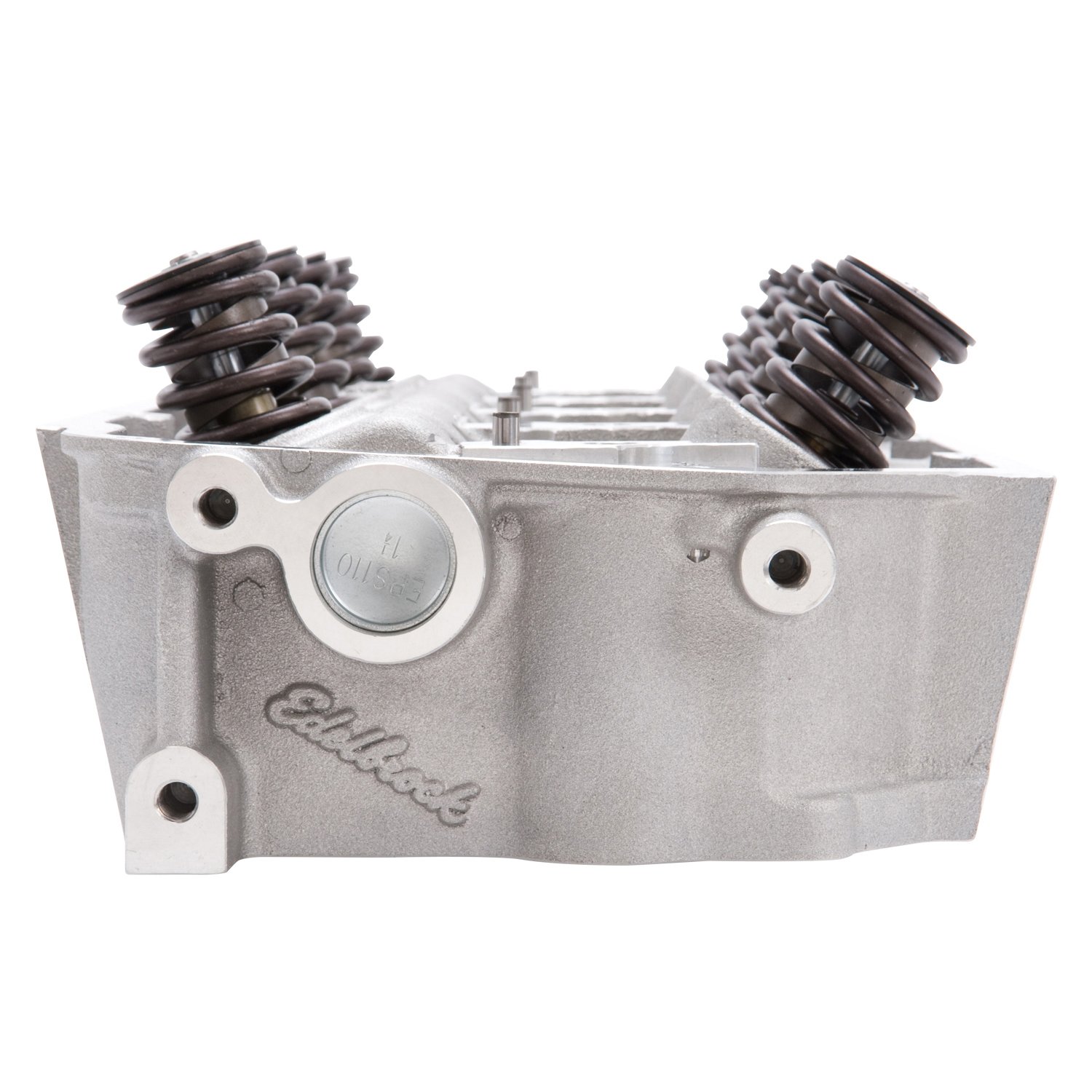

Victor Jr. Cylinder Heads are designed for high output 650+ hp Chrysler 426-572 HEMI® engines. They feature fully CNC combustion chambers and CNC blended seats for optimal airflow performance. These cylinder heads also feature a revised exhaust valve angle to accommodate larger intake valves. Brass tubes are installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion.

• Combustion Chamber: 170cc

• Intake Runner Volume: 245cc

• Exhaust Runner Volume: 105cc

• Intake Valve Diameter: 2.32"

• Exhaust Valve Diameter: 1.94"

• Valve Stem Diameter: 5/16"

• Valve Guides: Manganese Bronze

• Deck Thickness: 5/8"

• Valve Spring Diameter:1.54"

• Valve Spring Maximum Lift:.700"

• Pushrod Diameter: 5/16" or 3/8"

• Valve Angle: Intake (stock) / Exhaust tipped 1.5° - 21.5°

• Exhaust Port Location: Stock

• Spark Plug Type: 14mm x 3/4", gasket seat

• Required Head Bolt Kit: Edelbrock p/n 350-8513

• Recommended Head Gasket: Edelbrock p/n 350-7347

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
