Victor Jr. CNC Cylinder Head for Chrysler HEMI
InfoVehicle Info Needed
EDELBROCKPART NUMBER: 350-61189

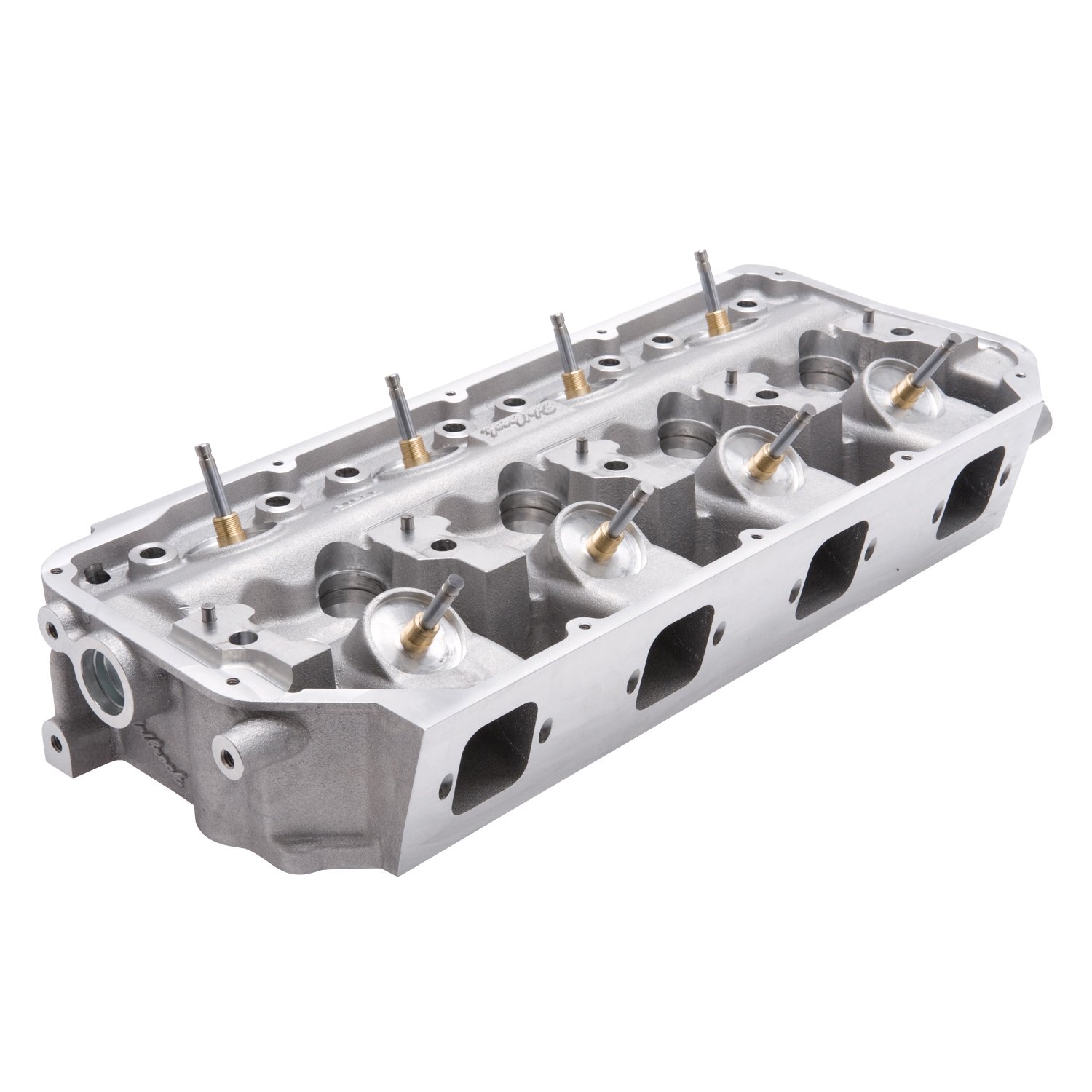

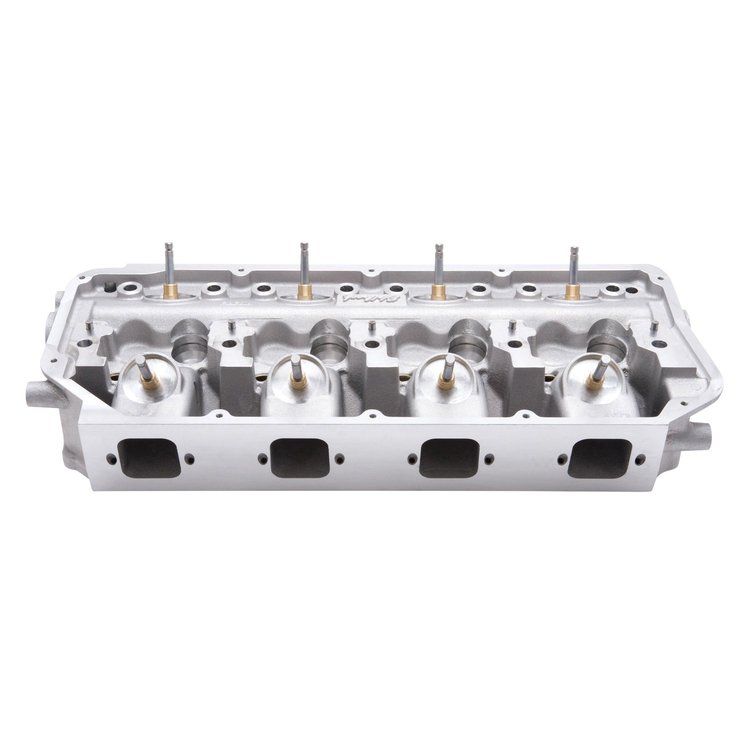

Victor Jr. CNC Cylinder Head for Chrysler HEMI

$1,73695
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

  • Chysler 426-572 Hemi
  • 245cc Intake Ports
  • 105cc Exhaust Ports
  • 170cc Combustion Chambers
  • Valve Size: 2.32"/1.94"
  • Bare with Valves, Sold Individually

    Victor Jr. Cylinder Heads are designed for high output 650+ hp Chrysler 426-572 HEMI® engines. They feature fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. These cylinder heads also feature a revised exhaust valve angle to accommodate larger intake valves. Brass tubes are installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion. These heads come with reamed and machined valve stem guides, as well as a valve job to match the included intake and exhaust valves (valves not installed).

    Specifications:
  • Combustion Chamber: 170cc
  • Intake Runner Volume: 245cc
  • Exhaust Runner Volume: 105cc
  • Intake Valve Diameter: 2.32"
  • Exhaust Valve Diameter: 1.94"
  • Valve Stem Diameter: 5/16"
  • Valve Guides: Maganese Bronze
  • Deck Thickness: 5/8"
  • Valve Spring Diameter: N/A
  • Valve Spring Maximum Lift: N/A
  • Pushrod Diameter: 5/16" or 3/8"
  • Valve Angle: Intake (stock) / Exhaust tipped 1.5° - 21.5°
  • Exhaust Port Location: Stock
  • Spark Plug Type: 14mm x 3/4", gasket seat
  • Required Head Bolt Kit: Edelbrock p/n 350-8513
  • Recommended Head Gasket: Edelbrock p/n 350-7347

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCylinder Head
BrandEDELBROCK
Package Height7.38
Package Width10.44
Package Length22.25
Weight24.85 PG
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake Port LocationStandard
EmissionNon-Emissions
Exhaust Valves IncludedYes
Locks IncludedNo
Engine Make/SizeMopar 426-572 Hemi
Retainers IncludedNo
Guideplates IncludedNo
Rocker Arms IncludedNo
Oiling StyleThrough pushrod
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Valve Seats MachinedNo
Heat CrossoverNo
FinishCast Aluminum
Valve Springs IncludedNo
Spark Plug StyleStraight
UsageRacing
Damper Spring IncludedNo
Valve Guides IncludedNo
Cnc-Machined Intake RunnerNo
Intake Valves IncludedNo
QuantitySold individually
Cylinder Head TypeRectangular Port
Valve Stem Seals IncludedNo
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)105
Exhaust Port LocationStandard
TypeValves Only
Combustion Chamber Volume (Cc)170
Machined For O-RingNo
PreparationRequires Professional Preparation (Bare)
Steam Holes DrilledNo
Rocker Arm Studs IncludedNo
Cylinder Head StyleBare
Part FitmentSemi Universal
Intake Runner Volume (Cc)245
Cnc-Machined Exhaust RunnerNo
Cnc-Machined Combustion ChamberYes
Vendor Part Number61189
Package Qty1
Package TypeEA
