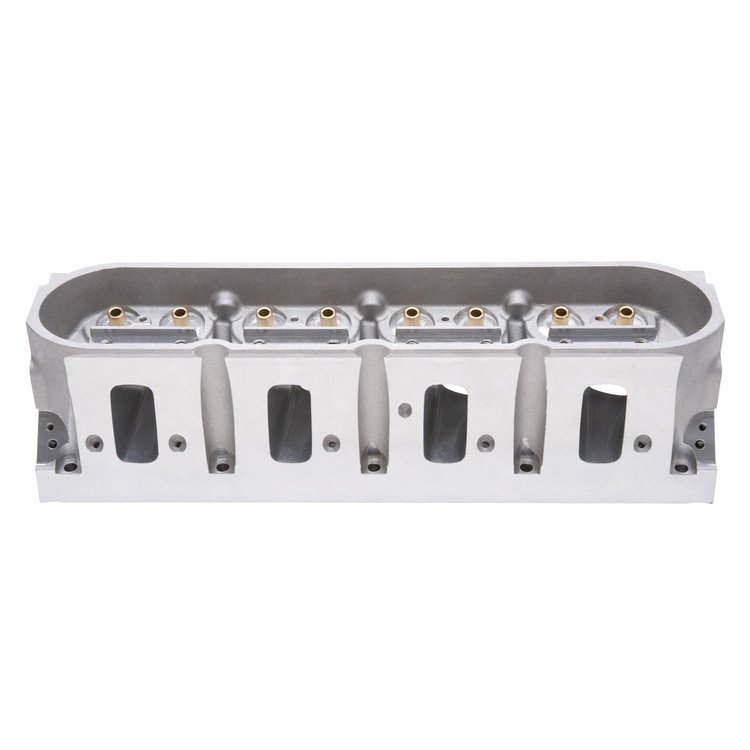

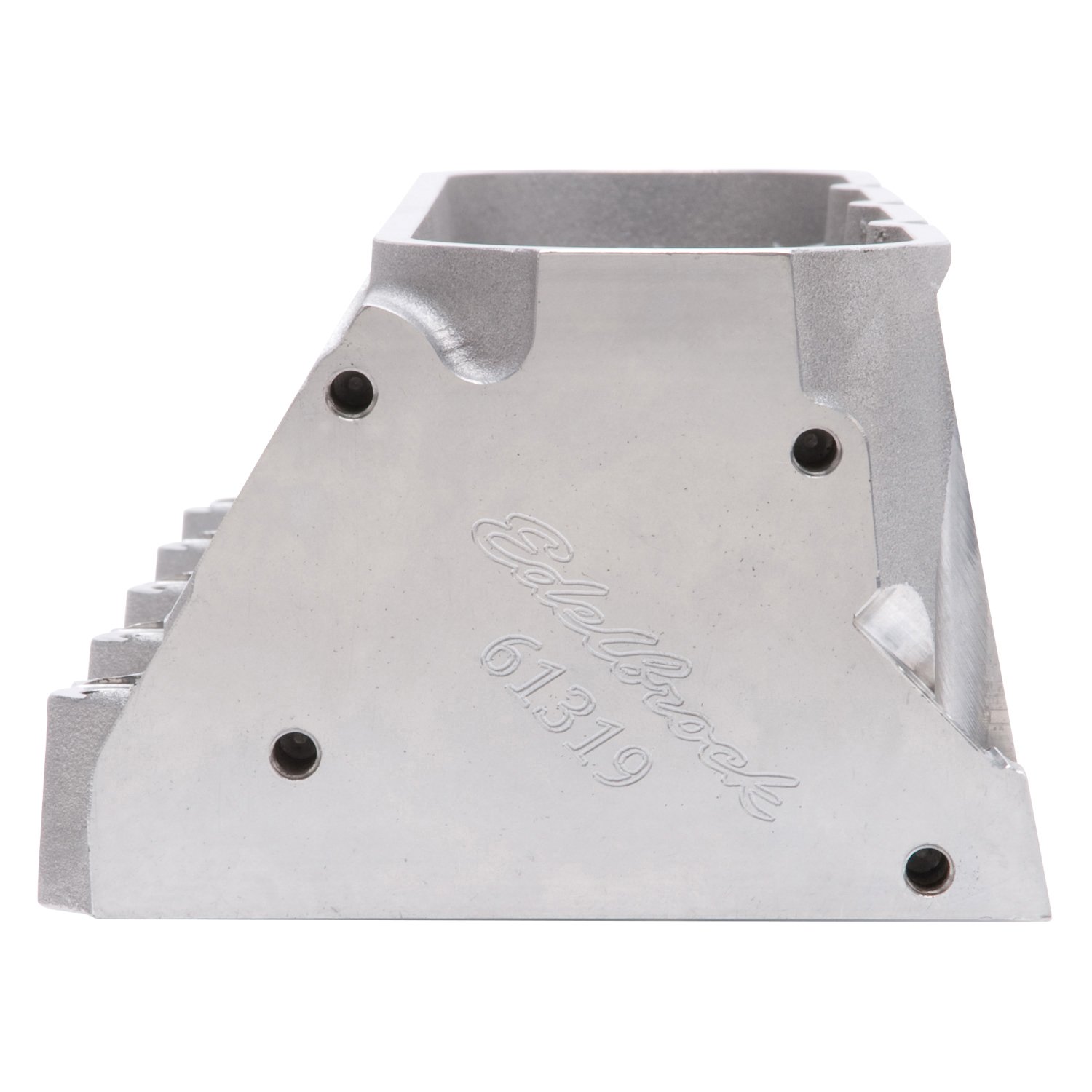

E-CNC 230 Cylinder Head for Chevy LS3
- Standard LS Gen III & Gen IV Small Blocks
- Rectangle Port
- Port Volumes: 230cc/80cc
- Valve Size: 2.135"/1.55"
- 69cc Combustion Chambers
- Max Lift: 680"
- Assembled, Sold Individually
E-CNC LS3 Cylinder Heads are a great general-purpose high performance cylinder head for any street- strip LS engine. These cylinder heads have a high velocity port compared to stock LS3 cylinder heads, making them an ideal upgrade for any cathedral port or 3.89" bore LS application. They feature an improved design and casting that gives cylinder head porters more material to work with compared to stock heads. Like all of our other E-CNC cylinder heads, these feature fully CNC'd intake ports, combustion chambers and exhaust ports for improved performance. Compatible with stock style rocker arms.
Combustion Chamber Volume: 69cc Intake Runner Volume: 230cc Exhaust Runner Volume: 80cc Intake Valve Diameter: 2.135' Exhaust Valve Diameter: 1.55' Valve Stem Diameter: 8mm Valve Guides: Manganese Bronze Deck Thickness: 5/8' Valve Spring Diameter: 1.30' Valve Spring Maximum Lift: 0.680' Rocker Stud: N/A Guideplate: N/A Pushrod Diameter: 5/16' Valve Angle: 13.25° Exhaust Port Location: 0.125" Raised Spark Plug Fitment: 14mm x .708' Reach,
Tapered Seat (OE-style)Valve Lift Intake Exhaust .100' 68 48 .200' 142 101 .300' 217 150 .400' 268 186 .500' 304 206 .600' 326 215 .700' 298 220 Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28' H2O
