Vehicle Info NeededEDELBROCKPART NUMBER: 350-61419

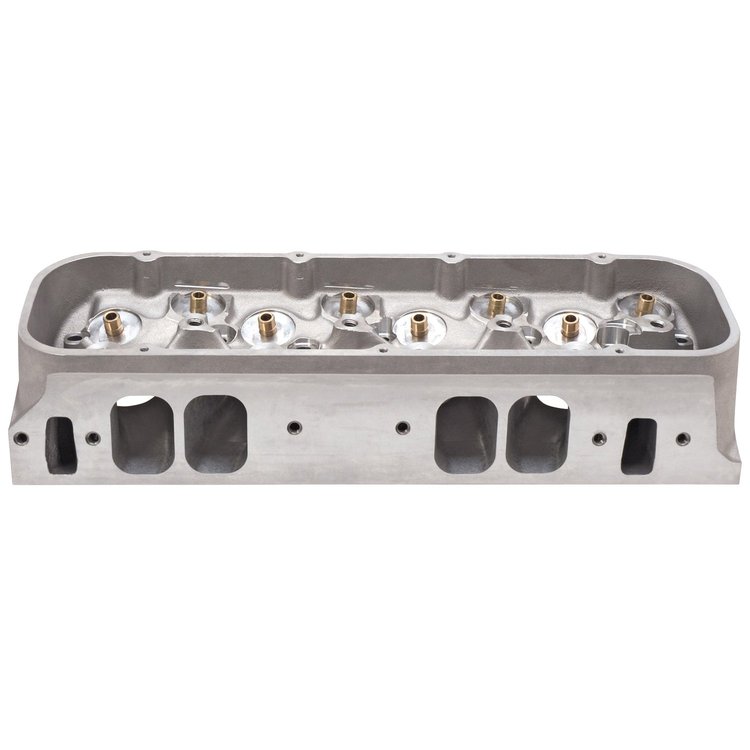

Musi Victor 24° CNC Aluminum Cylinder Head for Big Block Chevy
$2,31895
Ships on 09/15/2026
Lowest Price GuaranteeMusi Victor 24° CNC Aluminum Cylinder HeadsIntake Ports: 367cc Left, 377cc Right
- Big Block Chevy 396-502ci
- Intake Volume: (LH) 367cc (RH) 377cc
- Exhaust Volume: 128cc
- 119cc Combustion Chamber
- Bare Head, Sold Individually
- Designed by Edelbrock and Pat Musi Performance
- Fully CNC-machined combustion chambers and intake/exhaust ports
- A356 aluminum casting heat treated to T6 specifications
- Extra thick deck and extra material in the spring pockets for use with high-lift camshaft and heavy spring combinations
- Exhaust port exits are raised .534" to greatly improve exhaust flow and power
Combustion Chamber Volume: 119cc Intake Runner Volume: 367cc (L), 377cc (R) Exhaust Runner Volume: 128cc Deck Thickness: 9/16' Pushrod Diameter: 3/8' Valve Angle: 24° Exhaust Port Location: Raised .534' Spark Plug Fitment: 14mm x 3/4' Reach,
Gasket SeatValve Lift Intake Exhaust .200' 149 122 .300' 227 164 .400' 301 196 .500' 351 225 .600' 385 248 .700' 405 268 .600' 409 284 .900' 414 297 Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28' H2O Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCylinder Head
BrandEDELBROCK
Package Height8.25
Package Width10.44
Package Length24.75
Weight40.55 PG
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake Port LocationStandard
Rocker Arm Nut Thread Size (In.)7/16"-20
EmissionNon-Emissions
Exhaust Valves IncludedNo
Locks IncludedNo
Engine Make/SizeChevy Big Block (396-502)
Retainers IncludedNo
Guideplates IncludedNo
Rocker Arms IncludedNo
Oiling StyleThrough pushrod
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Valve Seats MachinedNo
Intake Valve Angle24
Valve Seat MaterialDuctile iron
Heat CrossoverNo
FinishCast Aluminum
Valve Springs IncludedNo
UsageCompetition
Damper Spring IncludedNo
Valve Guides IncludedYes
Cnc-Machined Intake RunnerYes
Intake Valves IncludedNo
QuantitySold individually
Cylinder Head TypeRectangular Port
Valve Stem Seals IncludedNo
Intake Valve Diameter2.3 in (58.42 mm)
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)128
Exhaust Port LocationRaised
Valve Guide MaterialManganese bronze
TypeBare
Combustion Chamber Volume (Cc)119
Machined For O-RingNo
PreparationRequires Professional Preparation (Bare)
Steam Holes DrilledNo
Rocker Arm Studs IncludedNo
Cylinder Head StyleBare
Part FitmentSemi Universal
Valve Cover Mounting StylePerimeter bolt
Intake Runner Volume (Cc)367cc/377
Cnc-Machined Exhaust RunnerYes
Cnc-Machined Combustion ChamberYes
Exhaust Valve Diameter1.9 in (48.26 mm)
Vendor Part Number61419
Package Qty1
Package TypeEA
