Made in USA

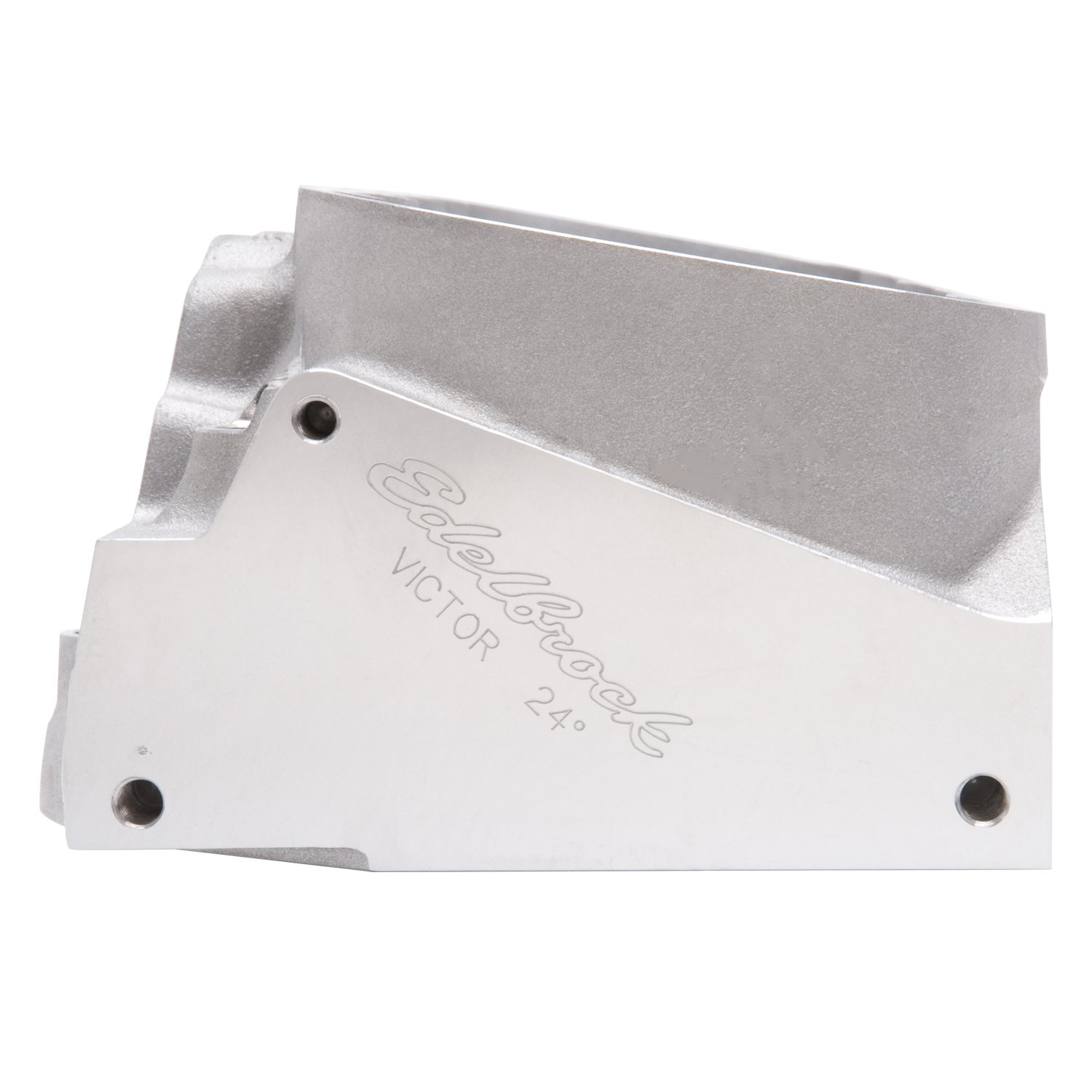

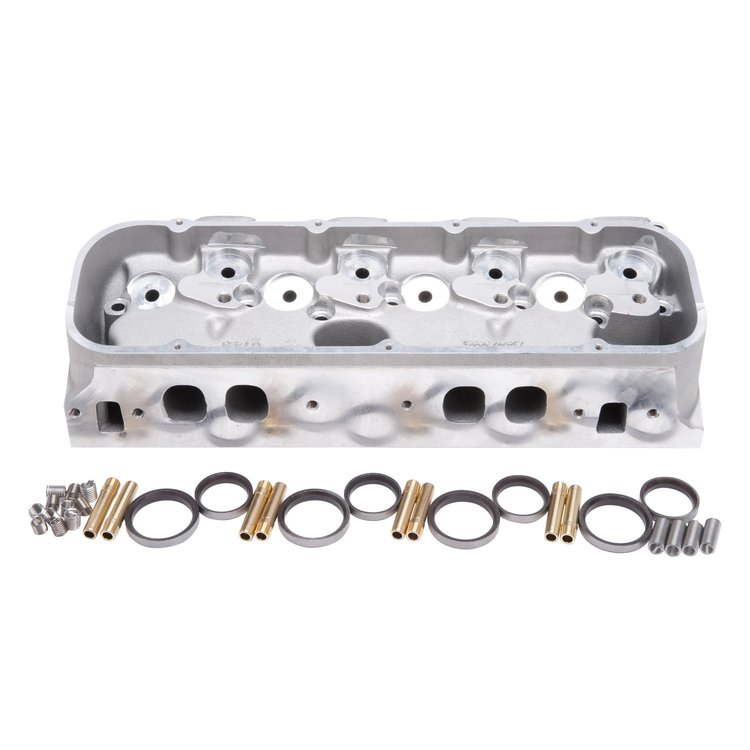

Pro-Port Raw Victor 24 Degree Gen III Cylinder Head for Big Block Chevy
Product Discontinued
EDELBROCKPART NUMBER: 350-614369

Pro-Port Raw Victor 24 Degree Gen III Cylinder Head for Big Block Chevy

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Victor 24° Pro-Port Cylinder Heads
  • Designed for Professional Head Porters
  • Machine Work Required
    • Gen III Victor 24 Degree Pro-Port Cylinder Head
    • Big Block Chevy
    • Rectangular Intake Port
    • Semi-Finished
    • 38cc Combustion Chamber
    • HIP Process
    • Valve Size: 2.45"/1.96"
    • Sold Individually



        Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

        Victor Pro-Port Raw Big Block Chevy Cylinder Heads for Professional Head Porters

        Edelbrock has designed the perfect head for a professional cylinder head porter and engine builder. These heads are unported versions of Edelbrock's race-winning Victor series heads. The Victor Pro-Port cylinder heads are a semi-finished casting that gives the professional cylinder head porter the ideal starting point to design their own hand or CNC port. To allow for custom porting, the ports and chambers are un-machined and manganese-bronze valve guides and valve seats are available with certain heads. The Pro-Port heads are cast right here in the USA at Edelbrock's state-of-the-art facility.

        Show More

        NOTE: These heads can not be used without professional head preparation.

        HIP Process HIGH-TECH PROCESS DELIVERS STRONGER CASTINGS
        Heads are available with a technique called Hot Isostatic Pressing (HIP). This aerospace process takes raw castings up to 900° F in a pressurized chamber (up to 30,000 psi) and compresses the casting. The results: an incredibly strong, super dense sand casting that has three times the fatigue life and nearly the consistency of billet aluminum.

      Part TypeCylinder Head
      Product LineEdelbrock Big Block Chevy Victor Pro-Port Cylinder Heads
      BrandEDELBROCK
      Package Height8.5
      Package Width11.0
      Package Length26.0
      Weight48.5 PG
      Part CategoryPerformance Parts
      Cylinder Head MaterialAluminum
      EmissionNon-Emissions
      Exhaust Valves IncludedNo
      Locks IncludedNo
      Engine Make/SizeChevy Big Block (396-502)
      Retainers IncludedNo
      Guideplates IncludedNo
      Rocker Arms IncludedNo
      Oiling StyleThrough pushrod
      Rocker Arm Nuts IncludedNo
      Cylinder Head FinishNatural
      Valve Seats MachinedNo
      Intake Valve Angle24
      Valve Seat MaterialDuctile iron
      Heat CrossoverNo
      FinishCast Aluminum
      Valve Springs IncludedNo
      UsageCompetition
      Damper Spring IncludedNo
      Valve Guides IncludedYes
      Cnc-Machined Intake RunnerNo
      Intake Valves IncludedNo
      QuantitySold individually
      Cylinder Head TypeStandard
      Valve Stem Seals IncludedNo
      Intake Valve Diameter2.45 in (62.23 mm)
      Accessory Bolt Holes DrilledYes
      Valve Guide MaterialManganese bronze
      TypeBare
      Combustion Chamber Volume (Cc)38
      Machined For O-RingNo
      PreparationRequires Professional Preparation (Bare)
      Steam Holes DrilledNo
      Rocker Arm Studs IncludedNo
      Cylinder Head StyleBare
      Valve Cover Mounting StylePerimeter bolt
      Cnc-Machined Exhaust RunnerNo
      Cnc-Machined Combustion ChamberNo
      Exhaust Valve Diameter1.96 in (49.784 mm)
      Vendor Part Number614369
      Package Qty1
      Package TypeEA
