Made in USA
Performer D-Port Cylinder Head for Pontiac V8
Product Discontinued
EDELBROCKPART NUMBER: 350-61589

Performer D-Port Cylinder Head for Pontiac V8

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

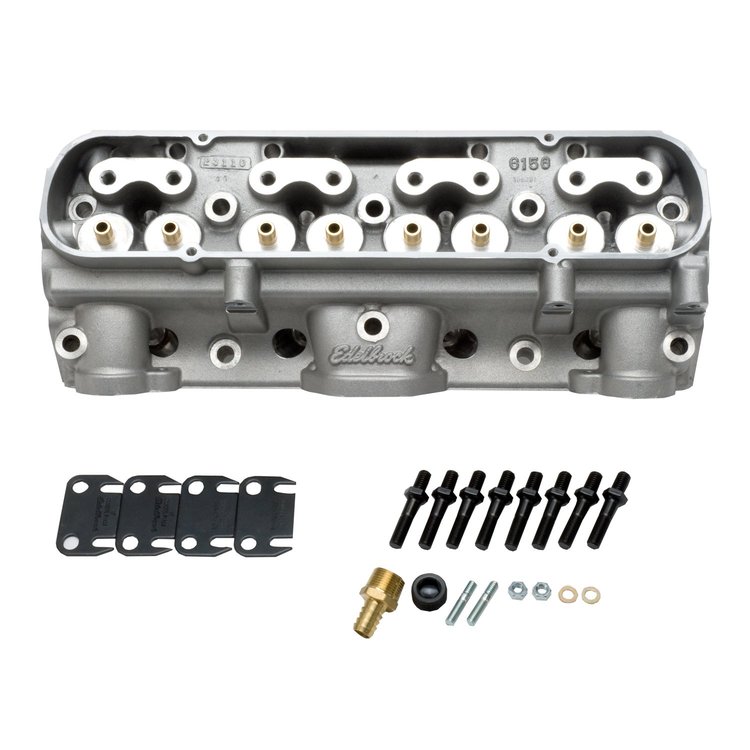

Performer Pontiac 72cc D-Port Cylinder Heads
    Performer Cylinder Head
  • 1962-1979 Pontiac 389-455ci
  • Port Volume: 204cc/145cc
  • 72cc Combustion Chambers
  • 7/16" Rocker Studs
  • 50 State Legal
  • Bare, Sold Each

    Performer Pontiac heads utilize a D-Port exhaust port configuration for use with standard D-port exhaust systems. They are designed for 1962-79 389, 400, 421, 428 and 455 cid V8 Pontiac engines with a 4.060' or larger bore. They feature optimized oil return passages for increased oil flow. These heads are available in three heart shaped combustion chamber sizes, including 65cc, 72cc and 87cc. The 65cc combustion chambers are as-cast while the 72cc and 87cc chambers are fully CNC'd to provide a 9.5:1 compression ratio when used with flat-top pistons. The spark plug has been relocated closer to the exhaust valve for improved performance. These heads are cast with extra thick port walls and a compact port size, making them ideal for CNC and hand porting. Complete heads include guide plates, rocker studs and high quality valvetrain for direct bolt-on application. Heat crossover is machined for 50-state emissions legal performance.

    Combustion Chamber Volume:87cc
    Intake Runner Volume:204cc
    Exhaust Runner Volume:145cc
    Intake Valve Diameter:2.11' (Valve not included)
    Exhaust Valve Diameter:1.66' (Valve not included)
    Valve Guide Diameter:11/32'
    Valve Guides:Manganese Bronze
    Deck Thickness:5/8'
    Valve Spring Diameter:N/A
    Valve Spring Maximum Lift:N/A
    Rocker Stud:7/16
    Guideplate:Hardened Steel
    Pushrod Diameter:5/16'
    Valve Angle:14°
    Exhaust Port Location:D-Port (Stock Location)
    Spark Plug Fitment:14mm x 3/4' Reach,
    Gasket Seat


    Valve LiftIntakeExhaust
    .100'6552
    .200'136103
    .300'199130
    .400'237145
    .500'255151
    .600'262157
    .700'263159
    Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28' H2O
Part TypeCylinder Head
BrandEDELBROCK
Package Height8.5
Package Width11.5
Package Length26.0
Weight31.4 PG
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Carb Eo NumberD-215-49 (pdf)
Intake Port LocationStandard
Emission50 State Legal
Exhaust Valves IncludedNo
Locks IncludedNo
Engine Make/SizePontiac 400
Retainers IncludedNo
Guideplates IncludedNo
Rocker Arms IncludedNo
Oiling StyleThrough pushrod
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Valve Seats MachinedYes
Intake Valve Angle14
Valve Seat MaterialDuctile iron
Heat CrossoverYes
FinishCast Aluminum
Valve Springs IncludedNo
Spark Plug StyleAngled
UsageStreet/Performance
Valve Seat Machine Style3-angle
Damper Spring IncludedNo
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedNo
Combustion Chamber StyleHeart
QuantitySold individually
Cylinder Head TypePontiac D-Port
Valve Stem Seals IncludedNo
Intake Valve Diameter2.11 in (53.594 mm)
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)145
Exhaust Port LocationStandard
Valve Guide MaterialManganese bronze
TypeBare
Combustion Chamber Volume (Cc)72
Machined For O-RingNo
PreparationRequires Professional Preparation (Bare)
Steam Holes DrilledNo
Rocker Arm Studs IncludedNo
Cylinder Head StyleBare
Valve Cover Mounting StylePerimeter bolt
Intake Runner Volume (Cc)204
Cnc-Machined Exhaust RunnerNo
Cnc-Machined Combustion ChamberYes
Exhaust Valve Diameter1.66 in (42.164 mm)
Vendor Part Number61589
Package Qty1
Package TypeEA
