This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Features:
- Complete heads feature stainless steel 2.19' intake and 1.760' exhaust 'tulip-head' valves with 11/32' stems in Serdi-machined ductile iron seats, heavy-duty 1.550' valve springs that can handle valve lift up to .700', guideplates, steel retainers, keepers and bronze valve guides.
- Victor Jr. 460 CJ heads include titanium retainers and roller cam valve springs.
- 75cc combustion chambers that yield 9.5:1 compresson on Ford SVO 514 CJ crate engine for 624hp potential on the street with 92 octane gas.
- Port matched intake ports deliver optimum flow and are in the stock location for compatibility with standard manifolds.
- High-flow, port matched exhaust ports are in the stock location.
- Rocker stud mounting holes and exhaust bolt holes are heli-coiled for strength.
- 5/8' thick deck surface for maximum gasket retention.
- Made of A356 aluminum and heat treated to a T-6 spec.
Tech Tip: To gain more spark plug clearance, Edelbrock recommends using Champion RC Series plugs such as the RC12YC (P/N 192-49776). They are 0.230' shorter than a conventional spark plug and have a 5/8' hex for easier access.
Valve Lift Intake Exhaust .100' 76 67 .200' 140 118 .300' 207 153 .400' 260 180 .500' 300 200 .600' 319 207 .700' 326 207 Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28' H2O
Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

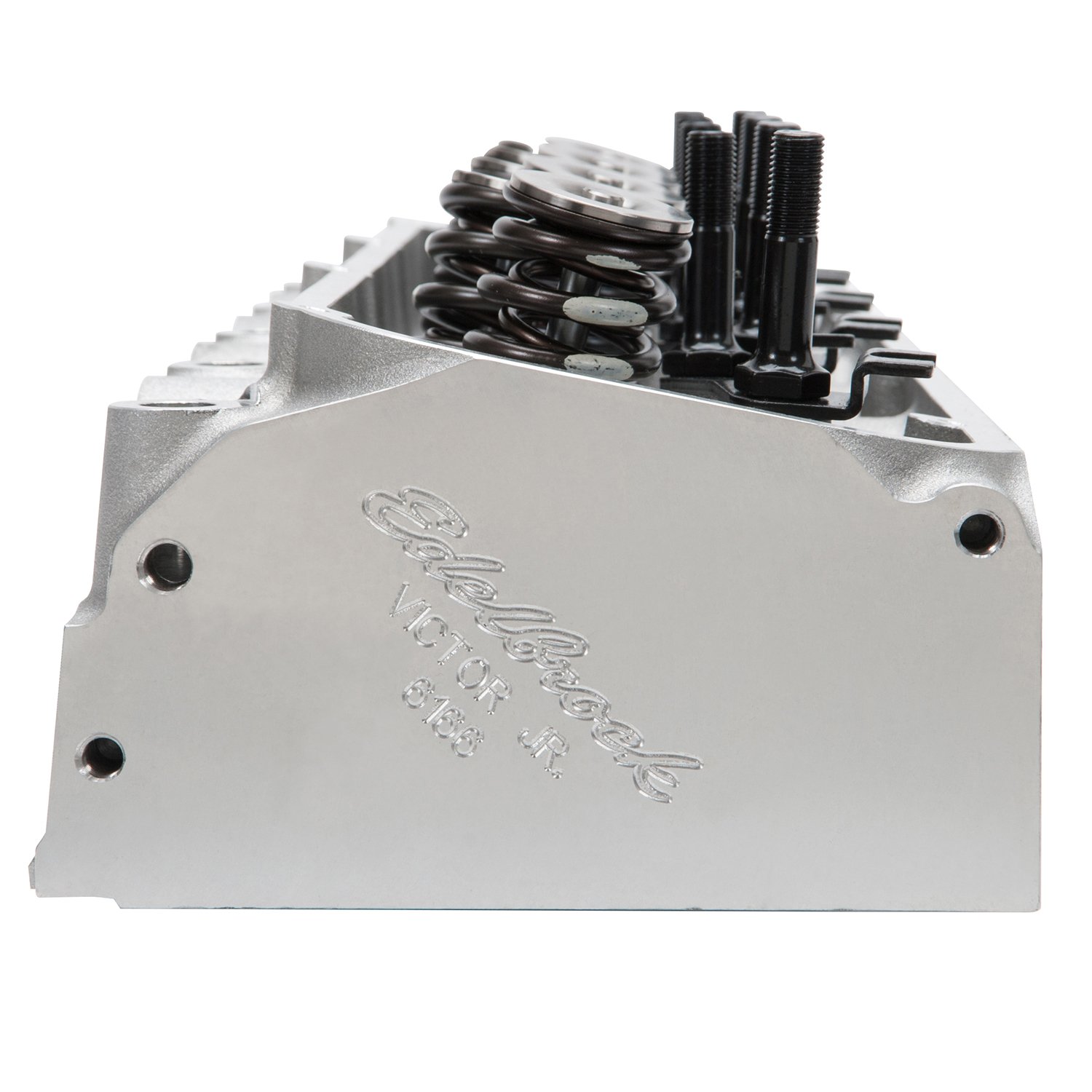

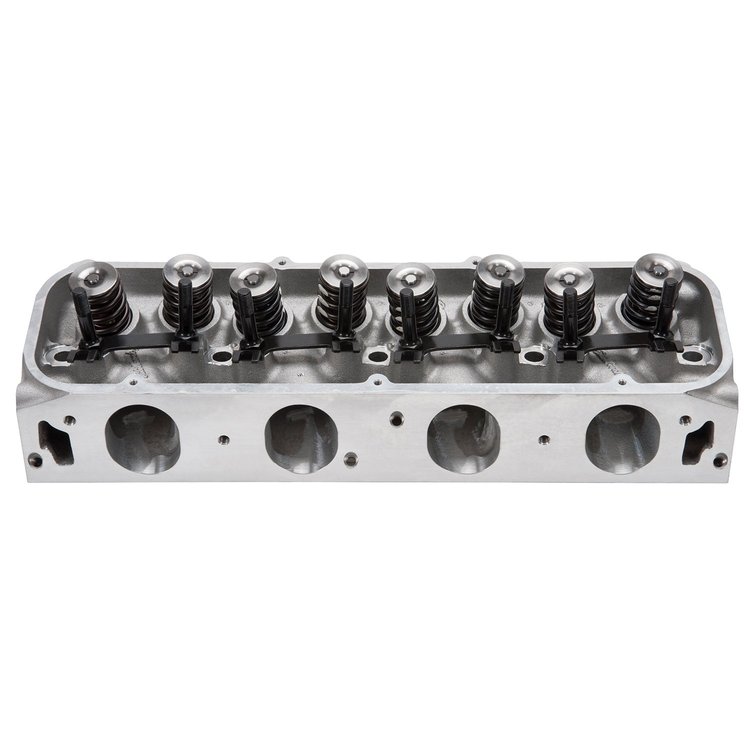

Designed for 1968-87 429/460ci Fords and the SVO 514 engine. These 460 CJ heads feature 75cc combustion chambers and machined profile Cobra-Jet style intake port entries.
The Victor Jr. heads are sold complete with titanium retainers and high-quality valve springs suitable for use with solid roller camshafts. Match Victor Jr. 460 CJ heads with an Edelbrock Victor Series intake for maximum power. Made In The USA!
Show More
Features:
- Combustion Chamber Volume: 75cc
- Intake Runner Volume: 310cc
- Exhaust Runner Volume: 100cc
- Intake Valve Diameter: 2.19"
- Exhaust Valve Diameter: 1.76"
- Valve Stem Diameter: 11/32"
- Valve Guides: Manganese Bronze
- Deck Thickness: 5/8"
- Valve Spring Diameter: 1.55"
- Valve Spring Maximum Lift: .700"
- Rocker Stud: 7/16"
- Guideplate: Hardened Steel
- Pushrod Diameter: 3/8"
- Exhaust Port Location: Stock
- Spark Plug Fitment: 14mm x 3/4 Reach, Gasket Seat
- Made In The USA!
