This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
- 1967-1991 Small Block Chrysler 318-360ci
- Fully CNC Ported
- Port Volume: 225cc/77cc
- 58cc Combustion Chambers
- Bare, Sold Individually

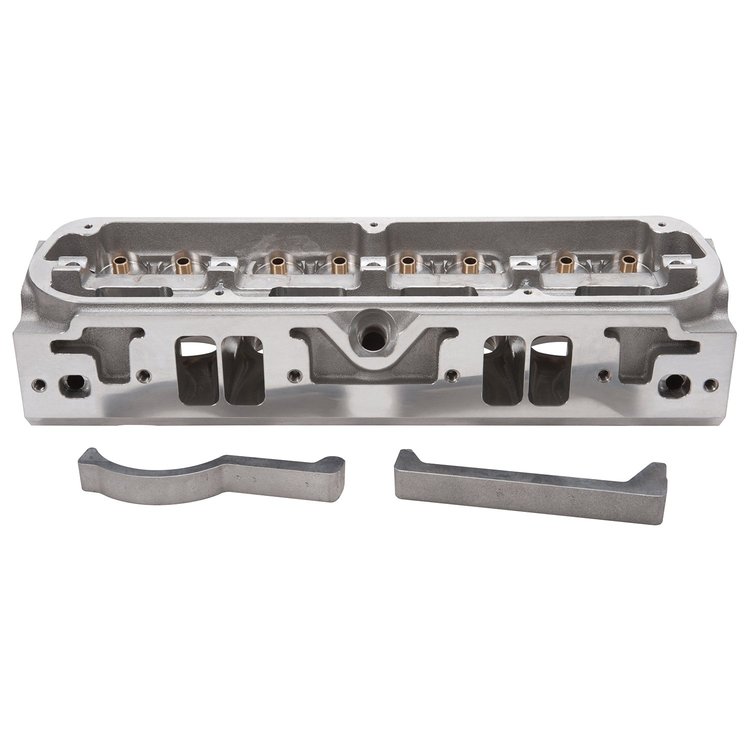

These cylinder heads are for use on 1967-1991, 318-360 c.i.d. Chrysler LA engines. They feature fully CNC ported 58cc combustion chambers and have an intake port volume of 225cc. These cylinder heads are an in-line valve design incorporating a 16° valve angle (stock is 18°) for improved air flow and increased power levels over heavily ported stock versions. They also feature the Chrysler W5 bolt pattern and have raised exhaust ports. The intake port has also been raised approximately 3/4" and the flange has also been extended to accommodate a stock (race) intake manifold such as the Super Victor 350-2815. Finally, a 5.56" overall length valve (+0.600" from stock) and raised rocker cover permit larger port cross-sections than in the stock head. End-seal spacers are provided.
Combustion Chamber Volume: 58cc Intake Runner Volume: 225cc Exhaust Runner Volume: 62cc Intake Valve Diameter: 2.15' Exhaust Valve Diameter: 1.60' Valve Stem Diameter: 11/32' Valve Guides: Manganese Bronze Deck Thickness: 5/8' Valve Spring Diameter: 1.55' Valve Spring Maximum Lift: 0.650' Rocker Stud: N/A Guideplate: N/A Pushrod Diameter: 5/16' Valve Angle: 16° Exhaust Port Location: Raised Spark Plug Fitment: 14mm x 3/4' Reach,
Gasket Seat - Technical Note:These heads are designed to accomodate stock Big Block Mopar Wedge Rocker arm assemblies (.150" minimum intake offset).
Valve Lift Intake Exhaust .100' 68 58 .200' 143 116 .300' 219 164 .400' 278 202 .500' 311 220 .600' 325 227 .700' N/A N/A .800' 345 237 .700' 350 241 Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28' H2O
Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.
Edelbrock has redesigned the Small Block Chrysler cylinder head for bracket racers and serious street enthusiasts. This 318-360ci Chrysler LA engine cylinder head features 100% CNC-ported 58cc combustion chamber, intake and exhaust ports. The first design enhancement is with an in-line valve design incorporating a 16° valve angle (stock is 18°) for improved air flow and increased power levels over heavily ported stock versions. This head also uses a 5.56" overall length valve (+0.600" from stock) and raised rocker cover permit larger port cross-sections than in the stock head.
Show More
The 225cc intake ports have been raised approximately .750'' while the flange was extended to accommodate a stock (race) intake manifold such as the Edelbrock Super Victor (p/n 350-2815). It also features raised exhaust ports with the Chrysler W5 bolt pattern. Intake end-seal spacers are also provided. *Please Note: These heads are designed to accommodate stock Big Block Mopar Wedge Rocker arm assemblies (.150'' minimum intake offset). Sold Individually, 1/pkg.
Features:
- Chrysler W5 bolt pattern
- Extended intake flange
- 5.56" overall length valve (+0.600" from stock) and raised rocker cover permit larger port cross-sections
- Available for hydraulic roller/flat tappet or solid roller camshaft applications
Specifications: - Combustion chamber volume: 58cc
- Intake runner volume: 225cc
- Exhaust runner volume: 62cc
- Intake valve diameter: 2.15"
- Exhaust valve diameter: 1.60"
- Valve stem diameter: 11/32"
- Valve guides: Manganese bronze
- Deck thickness: 5/8"
- Valve spring diameter: 1.55"
- Valve spring maximum lift: .650"
- Pushrod diameter: 5/16"
- Valve angle: 16°
- Exhaust port location: Raised
- Spark plug fitment: 14mm x 3/4 reach, gasket seat
