Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

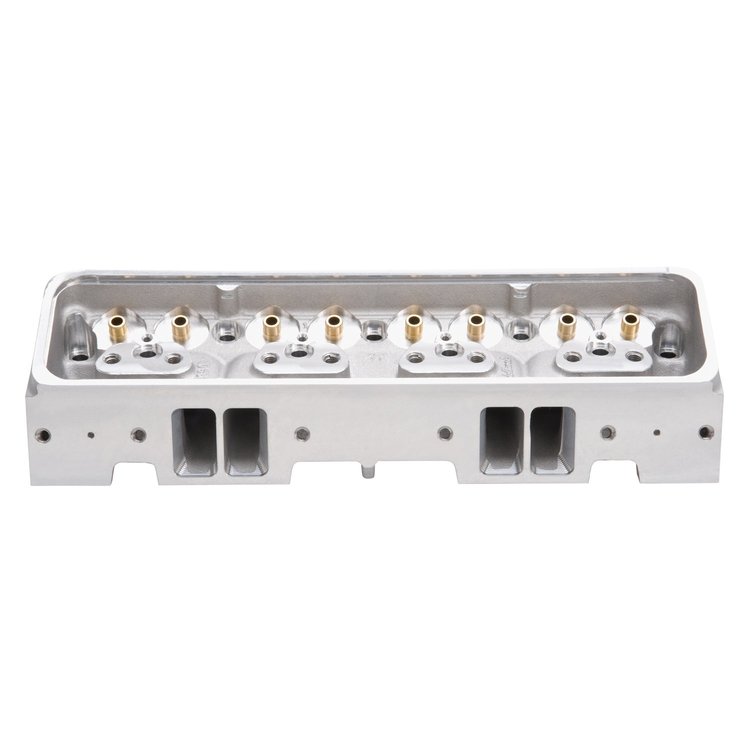

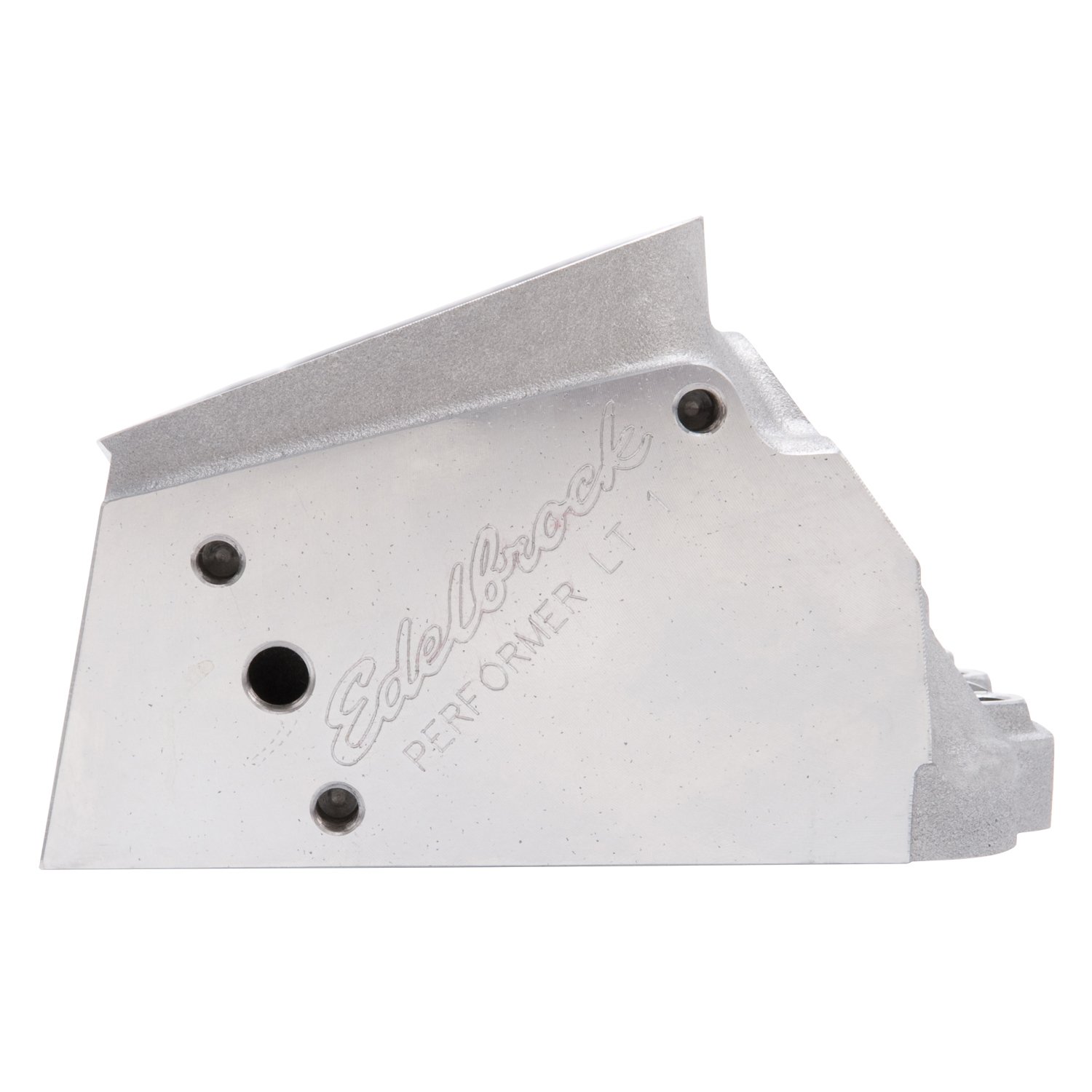

1992-97 LT1 Small Block Chevy
- 1992-97 LT1 Gen II Small Block Chevy
- Port Volumes: 170cc/60cc
- 54cc Combustion Chamber
- Bare Head, Sold Individually
Specifications: - Combustion chamber volume: 54cc.
- Intake runner volume: 170cc.
- Exhaust runner volume: 60cc.
- Valve guides: Maganese Bronze.
- Deck thickness: 5/8"
- Rocker stud: 3/8"
- Pushrod diameter: 5/16"
- Valve angle: 23°
- Exhaust port location: Stock.
- Spark plug fitment: 14mm x .750 reach, gasket seat.
Valve Lift Intake Exhaust .100' 61 52 .200' 117 100 .300' 174 140 .400' 220 167 .500' 242 184 .600' 232 192 .700' N/A N/A Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28' H2O
Technical Notes: Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat.
Part TypeCylinder Head
BrandEDELBROCK
Package Height8.8
Package Width11.1
Package Length25.9
Weight26.35 PG
Part CategoryPerformance Parts
Vendor Part Number61919
Package Qty1
Package TypeEA
