Made in USA

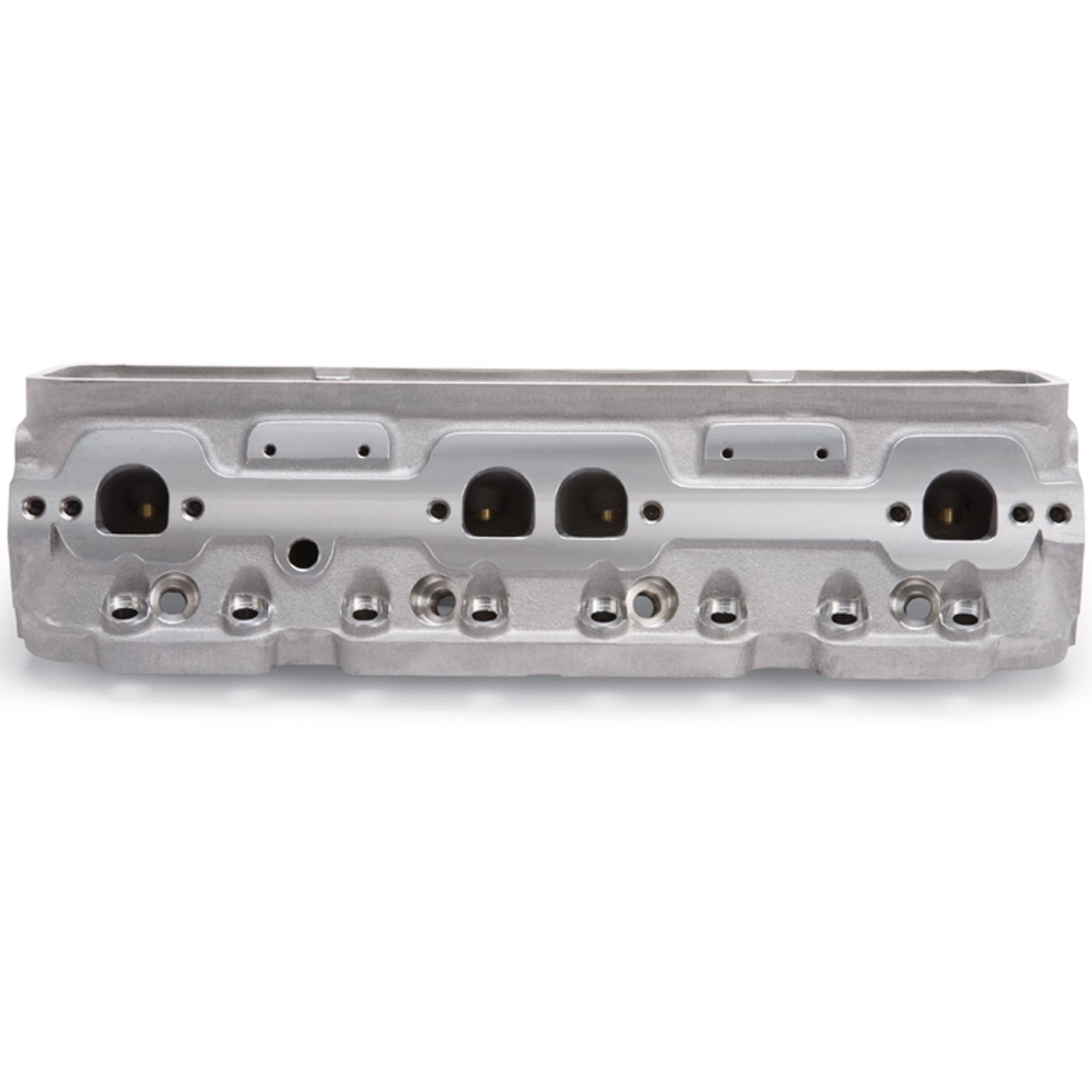

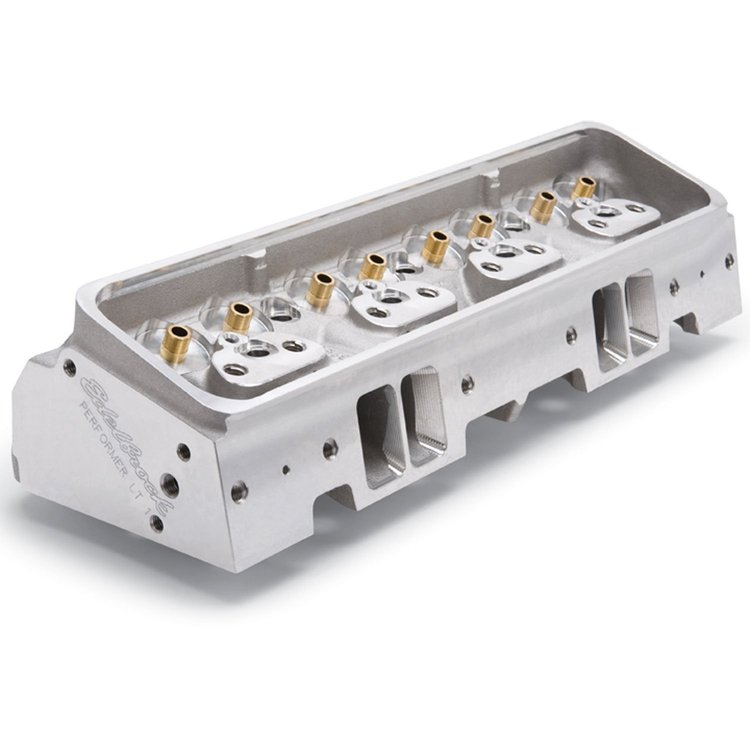

RPM LT4 Chevy Aluminum Cylinder Head
Product Discontinued
EDELBROCKPART NUMBER: 350-61929

RPM LT4 Chevy Aluminum Cylinder Head

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Chevy RPM Xtreme Cylinder Heads
  • 1992-97 LT1 and 1996 LT4 Gen II Small Block Chevy
  • Port Volumes: 195cc/75cc
  • 54cc Combustion Chamber
  • Bare Head, Sold Individually

    Designed for 1996 LT4 (or) 1992-97 LT1 small-block Chevy engines, RPM Xtreme LT4 cylinder heads are CNC ported in critical areas for improved airflow and peak performance. Features include high-quality 8mm stem stainless steel intake and exhaust valves that feed the high flow intake and exhaust ports. The highvelocity intake and exhaust runners are CNC ported in the bowl area and the intake entries and exhaust exits are CNC profiled for increased air-flow. Combustion chambers are fully CNC machined for absolute consistency and combustion. High-quality conical beehive springs are secured with titanium retainers and valve locks for performance up to .600" valve lift. RPM Xtreme LT4 heads are equipped with guide plates and 8mm stem valves, adjustable (non self-aligning) rocker arms are required. Match with RPM Air-Gap intake 350-7109, throttle body 350-5210 and camshaft 350-2108 for the Total Power Package combo.

    Specs:

  • Deck Thickness: 5/8"
  • Rocker Stud Diameter: 3/8"
  • Recommended Pushrod Diameter: 5/16"
  • Maximum Valve Lift: .600"
  • Bolt Torque: 65 ft.lbs.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

    For the ultimate performance, Xtreme heads are CNC ported for added hp and torque over standard Performer & Performer RPM models.

    RPM Xtreme cylinder heads give you the best combination of as-cast port design and custom CNC technology by blending the affordability of as-cast ports with custom CNC porting in the critical areas (combustion chambers, intake entry, exhaust exit and intake/exhaust bowls) for improved air flow and overall performance. This proven combination provides you with a powerful cylinder head at a lower cost than a typical fully CNC'd cylinder head.

    Edelbrock Xtreme heads are ideal for high-performance street and entry-level race applications. These heads are sold complete (unless noted) with high-quality springs, stainless steel valves and have heli-coil inserts installed in the exhaust flange and rocker stud bosses. Made In The USA.

Part TypeCylinder Head
Product LineEdelbrock LT4 Performer RPM Cylinder Heads
BrandEDELBROCK
Package Height8.25
Package Width10.44
Package Length24.75
Weight29.0 PG
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake Port LocationStandard
Emission50 State Legal
Exhaust Valves IncludedNo
Locks IncludedNo
Engine Make/SizeGM LT4
Retainers IncludedNo
Guideplates IncludedNo
Rocker Arms IncludedNo
Oiling StyleThrough pushrod
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Valve Seats MachinedNo
Intake Valve Angle23
Valve Seat MaterialDuctile iron
Heat CrossoverNo
FinishCast Steel
Valve Springs IncludedNo
Spark Plug StyleAngled
UsageStreet/Performance
Damper Spring IncludedNo
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedNo
QuantitySold individually
Cylinder Head TypeLT4
Valve Stem Seals IncludedNo
Intake Valve Diameter2.02 in (51.308 mm)
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)75
Exhaust Port LocationStandard
Valve Guide MaterialManganese bronze
TypeBare
Combustion Chamber Volume (Cc)54
Machined For O-RingNo
PreparationRequires Professional Preparation (Bare)
Steam Holes DrilledNo
Rocker Arm Studs IncludedNo
Cylinder Head StyleBare
Part FitmentSemi Universal
Valve Cover Mounting StyleCenterbolt
Intake Runner Volume (Cc)195
Cnc-Machined Exhaust RunnerNo
Cnc-Machined Combustion ChamberYes
Exhaust Valve Diameter1.57 in (39.878 mm)
Vendor Part Number61929
Package Qty1
Package TypeEA
