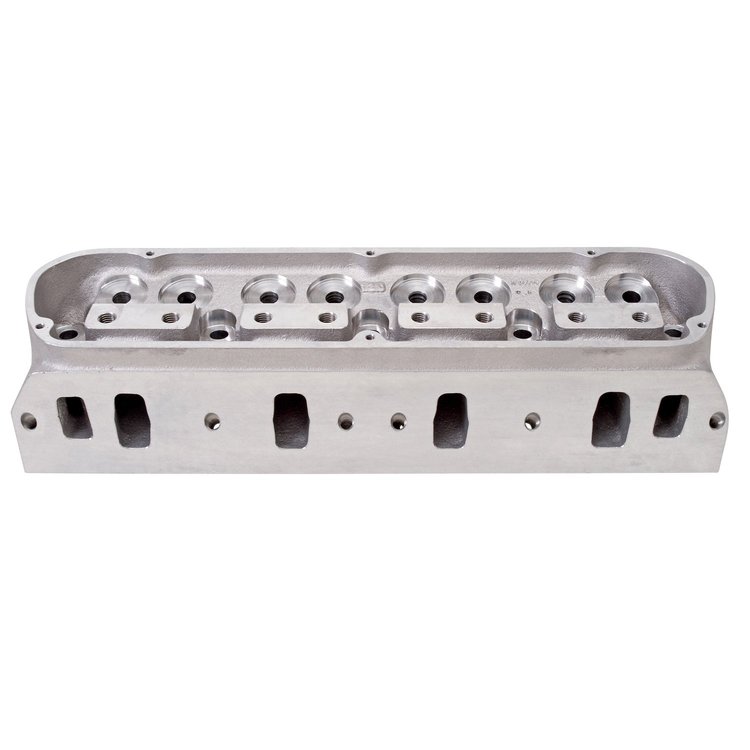

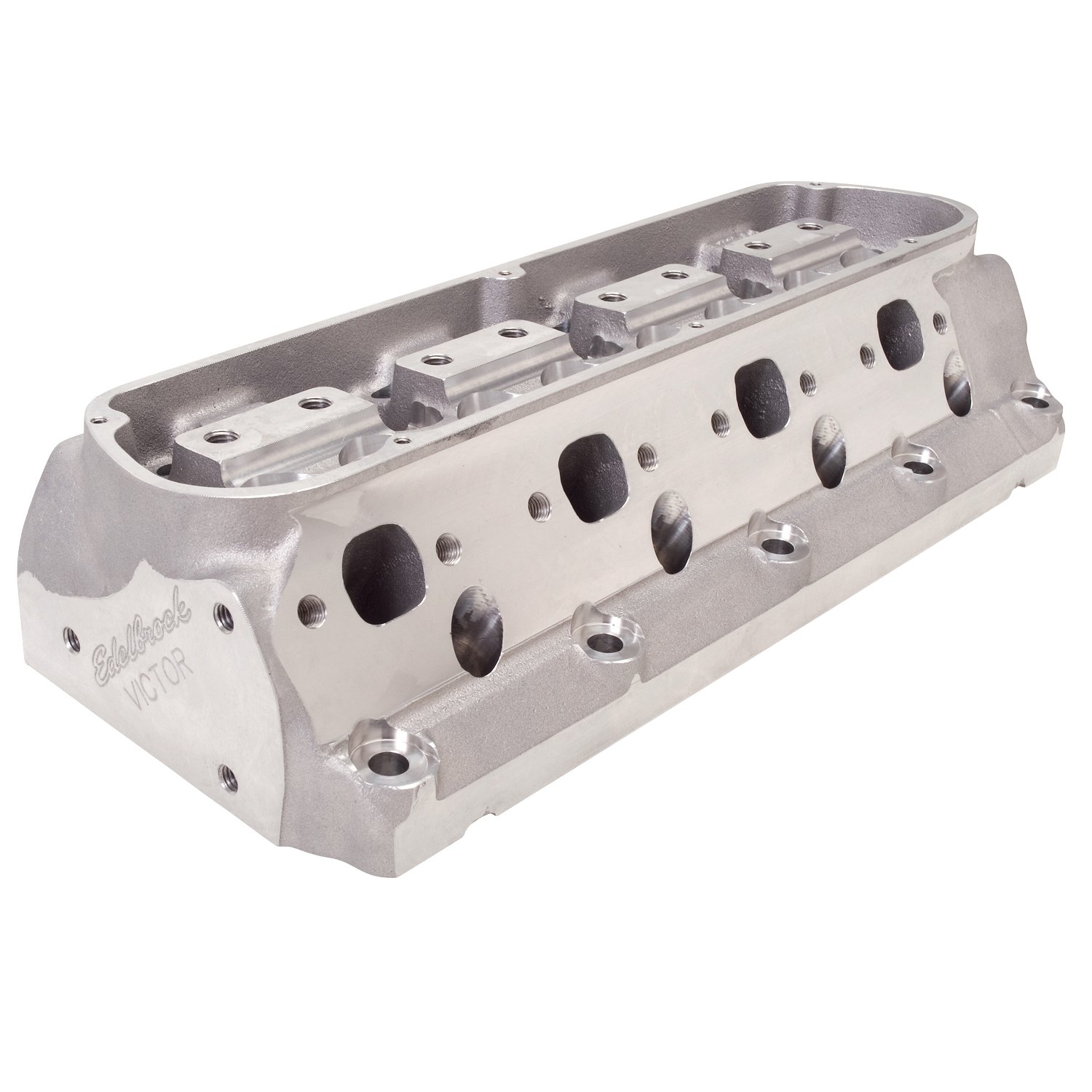

Pro Port Raw Victor Cylinder Head for Small Block Ford

Product Discontinued

EDELBROCKPART NUMBER: 350-770869

Pro Port Raw Victor Cylinder Head for Small Block Ford

Name: Pro Port Raw Victor Cylinder Head for Small Block Ford
Brand: EDELBROCK
SKU: 350-770869
Price: 902.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Victor Aluminum Cylinder Heads

Small Block Ford
Semi-Finished
HIP Process
1.00" x 1.85" Intake Port
1.33" x 1.24" Exhast Port
36cc Combustion Chambers
Valve Size: 2.18"/1.64"
Sold Individually

Sold Each

Important Note: This is a semi-machined version and must be finished by a professional cylinder head porting specialist.p>


Exhaust Port Exit:	1.33' x 1.24'
Valve Sizes:	2.18' Intake / 1.64' Exhaust (These are the maximum allowable size for each valve; these maximum sizes may not be used together)
Valve Pierce Points (X, Y):	-0.805",-0.006' Intake 1.130', -0.006' Exhaust Coordinates provided are cylinders 1, 3, 6, 8. Invert 'X' value for cylinders 2, 4, 5, 7.
Valve Spacing:	1.935'
Valve Guides:	Included
Valve Seats:	Included
Valve Angle:	15°
HIP Processed:	Yes

Part TypeCylinder Head

BrandEDELBROCK

Package Height8.0

Package Width11.0

Package Length26.0

Weight33.0 PG

Part CategoryPerformance Parts

Cylinder Head MaterialAluminum

Intake Port LocationStandard

EmissionNon-Emissions

Exhaust Valves IncludedNo

Locks IncludedNo

Engine Make/SizeFord 302-351W

Retainers IncludedNo

Guideplates IncludedNo

Rocker Arms IncludedNo

Rocker Arm Nuts IncludedNo

Cylinder Head FinishNatural

Valve Seats MachinedNo

Intake Valve Angle15

Valve Seat MaterialDuctile iron

Heat CrossoverNo

FinishCast Steel

Valve Springs IncludedNo

UsageCompetition

Damper Spring IncludedNo

Valve Guides IncludedYes

Cnc-Machined Intake RunnerNo

Intake Valves IncludedNo

QuantitySold individually

Cylinder Head TypeStandard

Valve Stem Seals IncludedNo

Intake Valve Diameter2.18 in (55.372 mm)

Accessory Bolt Holes DrilledYes

Exhaust Port LocationRaised

Valve Guide MaterialManganese bronze

TypeBare

Combustion Chamber Volume (Cc)36

Machined For O-RingNo

PreparationRequires Professional Preparation (Bare)

Steam Holes DrilledNo

Rocker Arm Studs IncludedNo

Cylinder Head StyleBare

Valve Cover Mounting StylePerimeter bolt

Cnc-Machined Exhaust RunnerNo

Cnc-Machined Combustion ChamberNo

Exhaust Valve Diameter1.64 in (41.656 mm)

Vendor Part Number770869

Package Qty1

Package TypeEA
