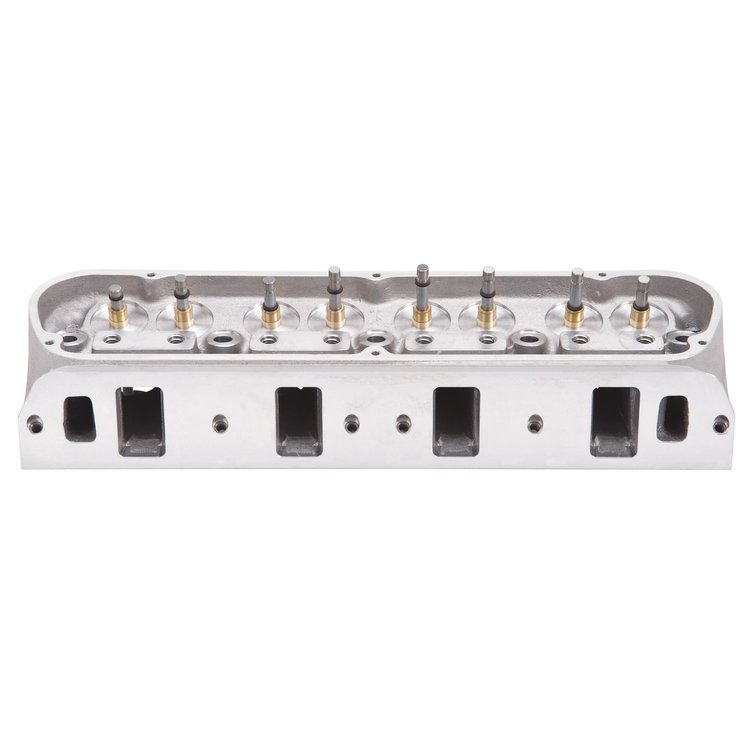

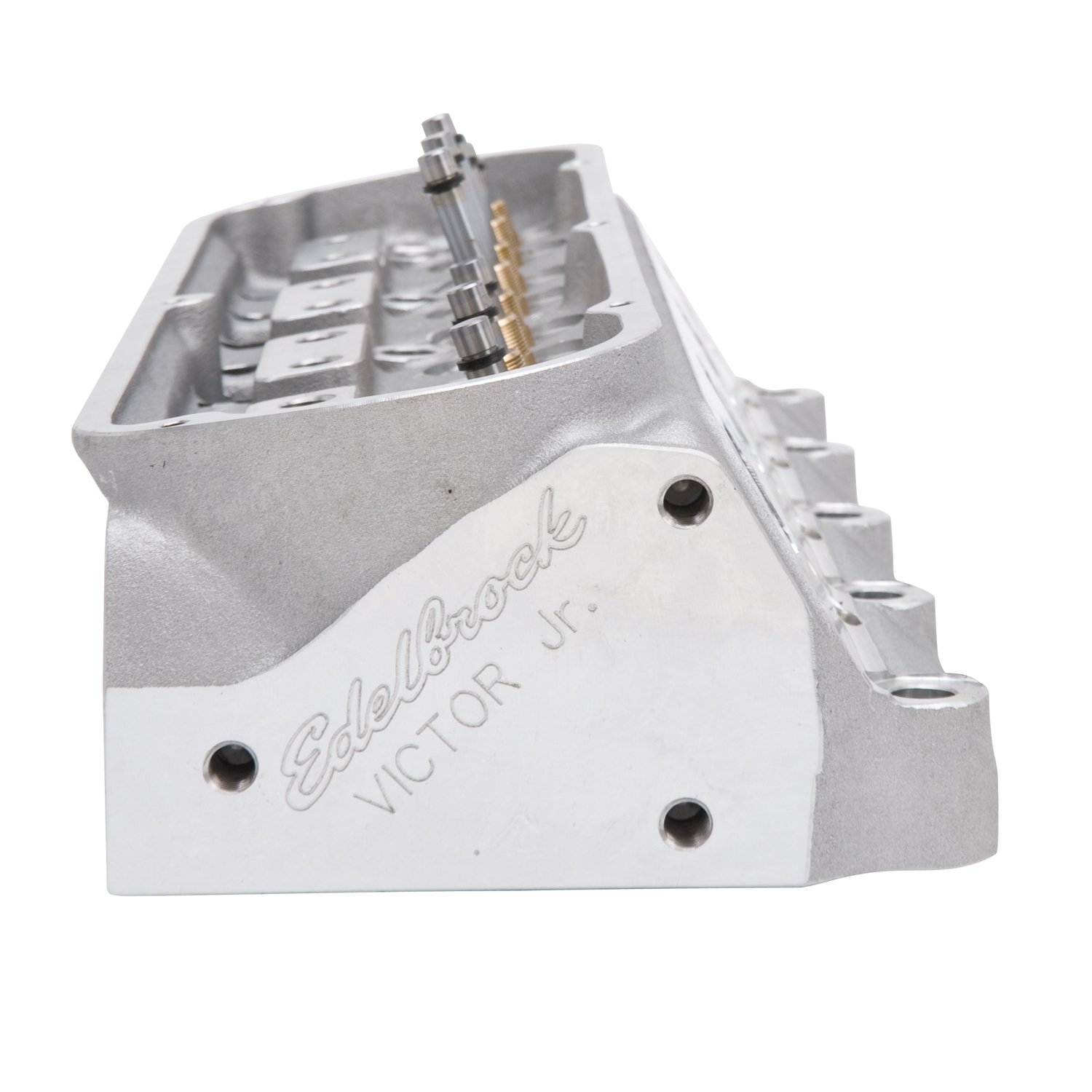

Victor Jr. 20° Aluminum Cylinder Head for Small Block Ford
InfoVehicle Info Needed
EDELBROCKPART NUMBER: 350-77169

Victor Jr. 20° Aluminum Cylinder Head for Small Block Ford

$85895
ShippingShips Today
Lowest PriceLowest Price Guarantee

Victor Jr. Aluminum Cylinder Heads
    Victor Jr. 20° Aluminum Cylinder Head
  • Small Block Ford 289-351W
  • Port Volume: 210cc/75cc
  • 60cc Combustion Chambers
  • Bare Head, Sold Individually

    The all-new Victor Jr. Ford heads have a 500+ horsepower potential, out-of-the-box, for an affordable, race-winning set-up. They feature large volume, high-flowing 210cc intake ports and .130' raised 75cc exhaust ports. Designed to work with standard port location manifolds and headers, these heads have CNC gasket-matched port entries and exits with blended valve bowls. The spark plug holes and valves are in the stock location with a valve cover rail that1s raised .150'. Complete heads come with stainless steel, 1-piece, swirl-polished, under-cut stem valve (2.05' intake/1.60' exhaust) as well as phosphor bronze valve guides.

    Note: Aftermarket 289/302 heads including Brodix, Edelbrock, Ford Motorsport and World Products with 1/2' bolt hole diameters (block is 7/16' bolt hole), except 397-M-6049-P303 ('P' style head). Require 350-9680 inserts with 350-8552 head bolt or 350-9680 insert with 070-154-3601. If head studs are desired use 070-154-4005 (includes inserts).

    Tech Tip: To gain more spark plug clearance, Edelbrock recommends using Champion RC Series plugs such as the RC12YC (P/N 192-49776). They are 0.230' shorter than a conventional spark plug and have a 5/8' hex for easier access.

    Valve LiftIntakeExhaust
    .100'6454
    .200'127108
    .300'186140
    .400'234167
    .500'268189
    .600'291195
    .700'285199
    Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28' H2O

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

    Victor Jr. Series Heads are perfect for OE-Performance engines with stock valve train and pistons for bolt-on performance. Available as a complete head which includes valves, springs & retainers or as a bare head so the valve springs can be matched with recommendations from the camshaft manufacturer.

    Victor & Victor CNC Series Heads are designed for use in racing applications. Some of the best racers in the country rely on Edelbrock's Victor and Victor CNC series heads to help them win the race. These heads feature raised runners, revised combustion chambers and relocated valves for all-out performance in competition engines./p>

    Show More
    Cylinder Head Specifications
     Victor Jr. 20°Victor 15°
    Combustion Chamber Colume60cc / 70cc47cc
    Intake Runner Volume210cc240cc
    Exhaust Runner Volume75cc80cc
    Intake Valve Diameter2.05"2.125" (Recommended; Not Included)
    Exhaust Valve Diameter1.60"1.625" (Recommended; Not Included)
    Valve Stem Diameter11/32"11/32"
    Valve GuidesManganese BronzeManganese Bronze
    Deck Thickness5/8"5/8"
    Valve Spring Diameter1.55"N/A
    Valve Spring Maximum Lift.650 (Hyd Roller) / .670 (Mech Roller)N/A
    Rocker Stud7/16"N/A
    GuideplateHardended SteelN/A
    Pushrod Diameter5/16"N/A
    Valve Angle20°15°
    Exhaust Port LocationRaised .130"2.5" Spread; Raised .520"
    Spark Plug Fitment14mm x 3/4 reach, gasket seat14mm x 3/4 reach, gasket seat



    Made In The USA!

Part TypeCylinder Head
Product LineEdelbrock Small Block Ford Victor & Victor Jr. Cylinder Heads
BrandEDELBROCK
Package Height8.8
Package Width11.0
Package Length26.1
Weight25.9 PG
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake Port LocationStandard
EmissionNon-Emissions
Exhaust Valves IncludedNo
Locks IncludedNo
Engine Make/SizeFord 260-302
Retainers IncludedNo
Guideplates IncludedNo
Rocker Arms IncludedNo
Oiling StyleThrough pushrod
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Valve Seats MachinedNo
Intake Valve Angle20
Valve Seat MaterialDuctile iron
Heat CrossoverNo
FinishCast Aluminum
Valve Springs IncludedNo
UsageCompetition
Damper Spring IncludedNo
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedNo
QuantitySold individually
Cylinder Head TypeStandard
Valve Stem Seals IncludedNo
Intake Valve Diameter2.05 in (52.07 mm)
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)75
Exhaust Port LocationRaised
Valve Guide MaterialManganese bronze
TypeBare
Combustion Chamber Volume (Cc)60
Machined For O-RingNo
PreparationRequires Professional Preparation (Bare)
Steam Holes DrilledNo
Rocker Arm Studs IncludedNo
Cylinder Head StyleBare
Part FitmentSemi Universal
Valve Cover Mounting StylePerimeter bolt
Intake Runner Volume (Cc)210
Cnc-Machined Exhaust RunnerNo
Cnc-Machined Combustion ChamberNo
Exhaust Valve Diameter1.6 in (40.64 mm)
Vendor Part Number77169
Package Qty1
Package TypeEA
