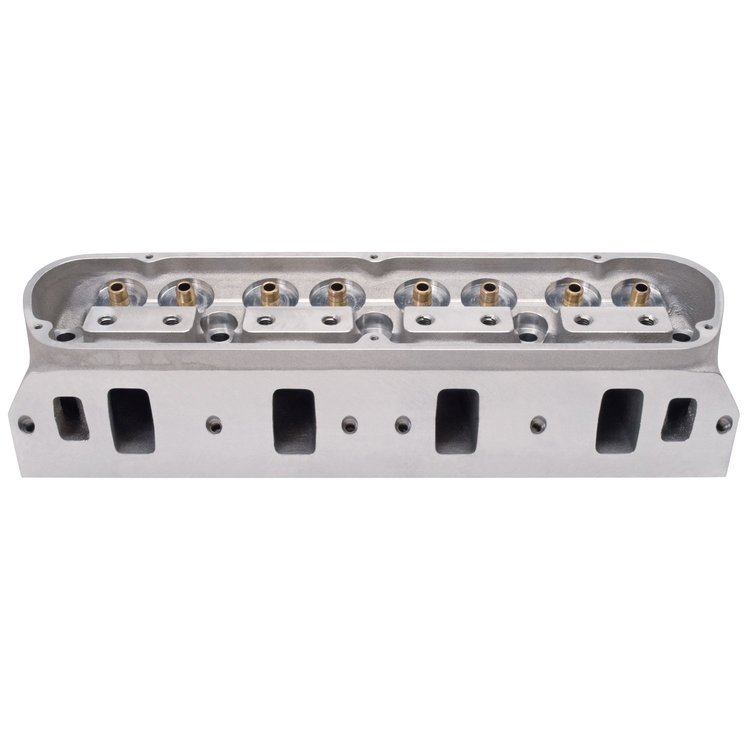

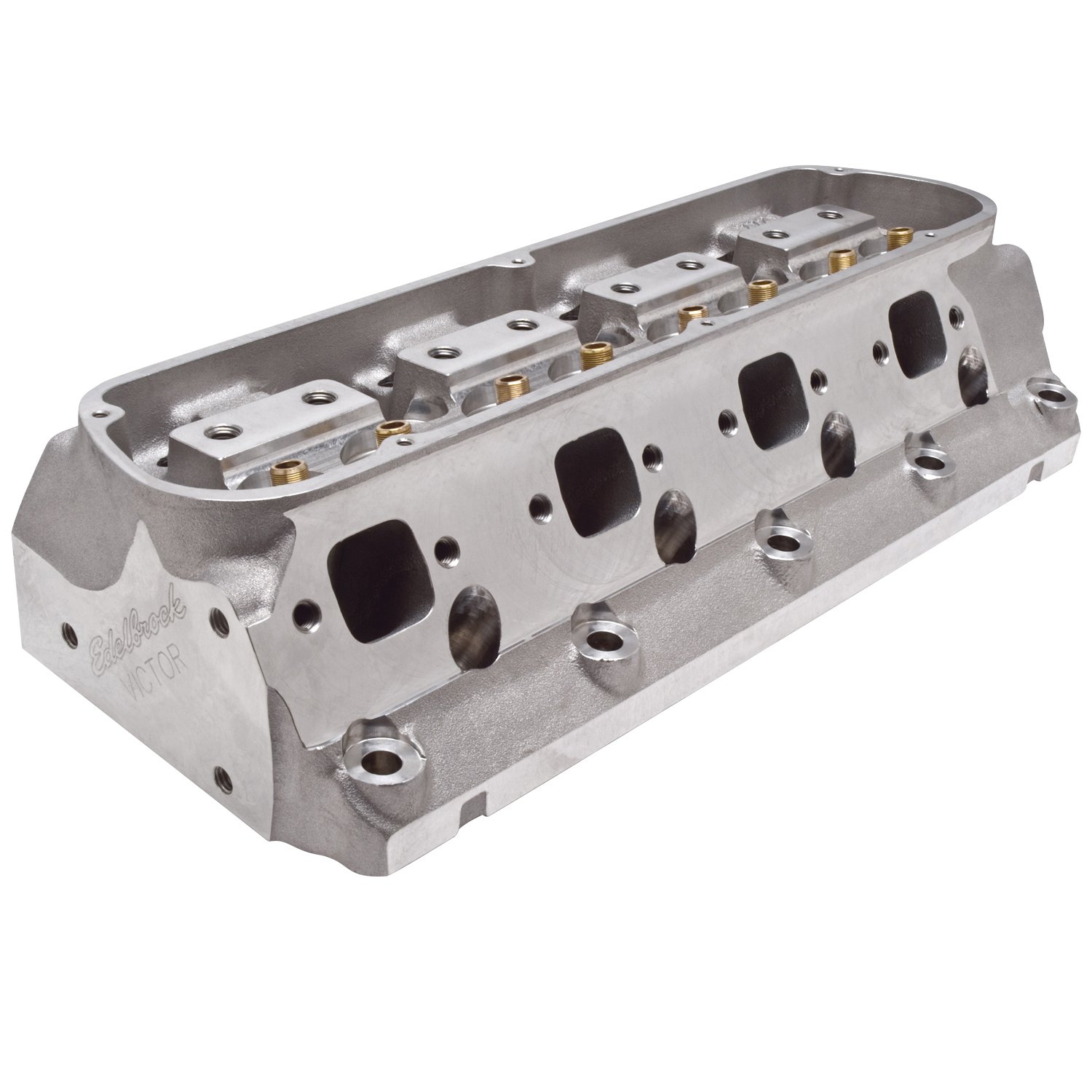

Victor 15° Aluminum Cylinder Head for Small Block Ford
InfoVehicle Info Needed
EDELBROCKPART NUMBER: 350-77219

Victor 15° Aluminum Cylinder Head for Small Block Ford

$85895
1 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Victor Aluminum Cylinder Head
    Victor 15° Aluminum Cylinder Head
  • Small Block Ford 289-351W
  • 240cc Intake Runners
  • 80cc Exhaust Runners
  • 47cc Combustion Chamber
  • Bare Head, Sold Individually

    This cylinder head is designed for maximum effort competition racing on 289-351+ cubic inch based engines. The inline valve configuration features a 15° valve angle and a modern combustion chamber design allows for high compression without large piston domes. The intake ports are raised .380"; however the intake flange has been extended to maintain proper port alignment with standard intake manifolds. The exhaust ports are patterned with a 2.50" spacing and raised .520" for high flow potential. This head requires shaft mounted rockers; please contact Jesel or T&D for details. Features include 47cc combustion chambers, ductile iron interlocking valve seats, manganese-bronze valve guides and requires professional preparation. Edelbrock recommends 2.125" intake valves and 1.625" exhaust valves with 5.45" overall length.

    Emissions Note:

    This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

    CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

    Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

    Victor Jr. Series Heads are perfect for OE-Performance engines with stock valve train and pistons for bolt-on performance. Available as a complete head which includes valves, springs & retainers or as a bare head so the valve springs can be matched with recommendations from the camshaft manufacturer.

    Victor & Victor CNC Series Heads are designed for use in racing applications. Some of the best racers in the country rely on Edelbrock's Victor and Victor CNC series heads to help them win the race. These heads feature raised runners, revised combustion chambers and relocated valves for all-out performance in competition engines./p>

    Show More
    Cylinder Head Specifications
     Victor Jr. 20°Victor 15°
    Combustion Chamber Colume60cc / 70cc47cc
    Intake Runner Volume210cc240cc
    Exhaust Runner Volume75cc80cc
    Intake Valve Diameter2.05"2.125" (Recommended; Not Included)
    Exhaust Valve Diameter1.60"1.625" (Recommended; Not Included)
    Valve Stem Diameter11/32"11/32"
    Valve GuidesManganese BronzeManganese Bronze
    Deck Thickness5/8"5/8"
    Valve Spring Diameter1.55"N/A
    Valve Spring Maximum Lift.650 (Hyd Roller) / .670 (Mech Roller)N/A
    Rocker Stud7/16"N/A
    GuideplateHardended SteelN/A
    Pushrod Diameter5/16"N/A
    Valve Angle20°15°
    Exhaust Port LocationRaised .130"2.5" Spread; Raised .520"
    Spark Plug Fitment14mm x 3/4 reach, gasket seat14mm x 3/4 reach, gasket seat



    Made In The USA!

Part TypeCylinder Head
Product LineEdelbrock Small Block Ford Victor & Victor Jr. Cylinder Heads
BrandEDELBROCK
Package Height7.0
Package Width10.6
Package Length22.4
Weight30.23 PG
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake Port LocationRaised
Emission50 State Legal
Exhaust Valves IncludedNo
Locks IncludedNo
Engine Make/SizeFord 302-351W
Retainers IncludedNo
Guideplates IncludedNo
Rocker Arms IncludedNo
Oiling StyleThrough pushrod
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Valve Seats MachinedNo
Intake Valve Angle15
Valve Seat MaterialDuctile iron
Heat CrossoverNo
FinishCast Aluminum
Valve Springs IncludedNo
UsageCompetition
Damper Spring IncludedNo
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedNo
QuantitySold individually
Cylinder Head TypeStandard
Valve Stem Seals IncludedNo
Intake Valve Diameter2.125 in (53.975 mm)
Accessory Bolt Holes DrilledYes
Exhaust Runner Volume (Cc)80
Exhaust Port LocationRaised
Valve Guide MaterialManganese bronze
TypeBare
Combustion Chamber Volume (Cc)47
Machined For O-RingNo
PreparationRequires Professional Preparation (Bare)
Steam Holes DrilledNo
Rocker Arm Studs IncludedNo
Cylinder Head StyleBare
Part FitmentSemi Universal
Valve Cover Mounting StylePerimeter bolt
Intake Runner Volume (Cc)240
Cnc-Machined Exhaust RunnerNo
Cnc-Machined Combustion ChamberNo
Exhaust Valve Diameter1.625 in (41.275 mm)
Vendor Part Number77219
Package Qty1
Package TypeEA
