This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

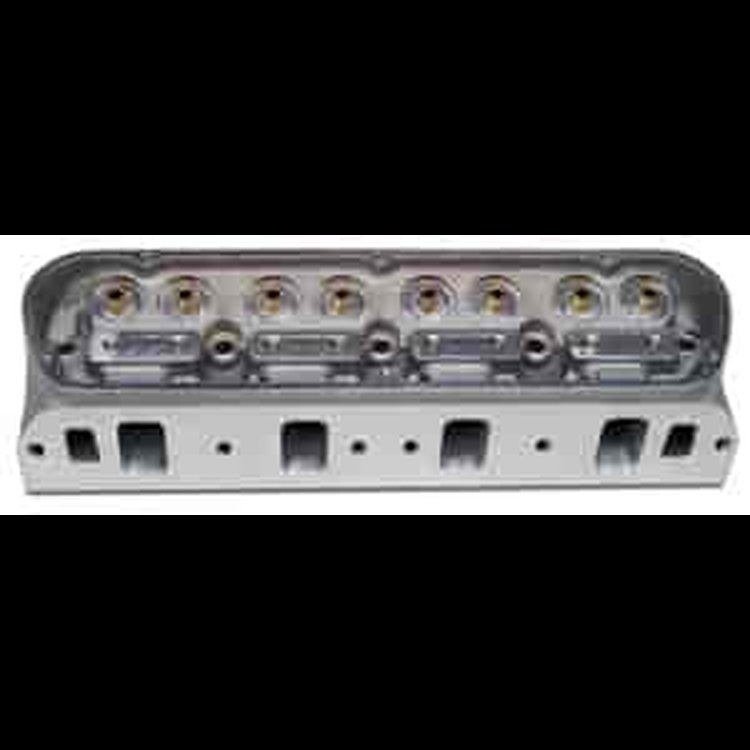

- Bare with End Seal Spacers, 50cc (each)
Designed for ultra high-performance and large displacement small-block Fords, the new Victor CNC heads are a CNC-ported version of the powerful Victor #350-7721 heads. Machined by Mike Chapman, features include: a 5/8' thick deck surface for maximum strength and positive head gasket retention, ductile iron valve seats, phosphor-bronze valve guides and end seal spacers included with heads.
Note: These heads require shaft-mounted rocker arms available from Jesel Components (#KRA14377) or T&D Machine (#7350). They also require special aftermarket pistons, such as available from JE Pistons (Job #93751, 714-898-9763). These heads will fit 351-C with modifications.
- Performer & Performer RPM Heads for Street Legal and Street High-Performance
- Combustion chamber volume 60cc / 70cc
- Intake runner volume 210cc
- Exhaust runner volume 75cc
- Intake valve diameter 2.05"
- Exhaust valve diameter 1.60"
- Valve stem diameter 11/32"
- Valve guides Manganese bronze
- Deck thickness 5/8"
- Valve spring diameter 1.55"
- Valve spring maximum lift .650 (flat-tappet) / .670 (roller)
- Rocker stud 7/16"
- Guideplate Hardended steel
- Pushrod diameter 5/16"
- Valve angle 20°
- Exhaust port location Raised .130"
- Spark plug fitment 14mm x 3/4 reach, gasket seat
- Made In USA!
These street high-performance heads provide out of the box, bolt-on performance with no additional porting required. They offer improved power throughout the rpm range for great throttle response and top-end horsepower. The intake and exhaust runners are CNC-profiled for superior flow and performance. Standard port location allows the use of Edelbrock Performer, Performer RPM, Torker II and Victor Jr. intakes as well as others of a similar design. Stock location of the exhaust flange allows the use of stock exhaust or headers. Other features include hand blended intake and exhaust bowls and hardened interlocking valve seats for use with leaded or unleaded fuel. All Performer and Performer RPM heads are assembled with these high-quality components: stainless steel, 1-piece swirl-polished intake and exhaust valves with under-cut stems; 2-ring positive oil control seals; rocker studs; hardened steel guideplates; valve springs, retainers and keepers. In most cases, these heads are directly interchangeable with the factory heads.
Performer heads have provisions for all exhaust emissions related components and are street legal, while the Performer RPM heads are for non-emission vehicles.
Victor Jr. and Victor Series Heads
Victor Jr. and Victor Series heads are designed for maximum horsepower. Victor Jr. heads are ideal for many types of competition and ultra-high performance street machines. Victor Series heads are one step above for even greater gains in horsepower. All these heads feature reinforced rocker stud bosses, high-flow intake/exhaust ports and specially contoured combustion chambers. Extra thick deck surfaces provide maximum head gasket retention with high-compression ratios. Use head bolt kit #350-8552 or 350-8553.
