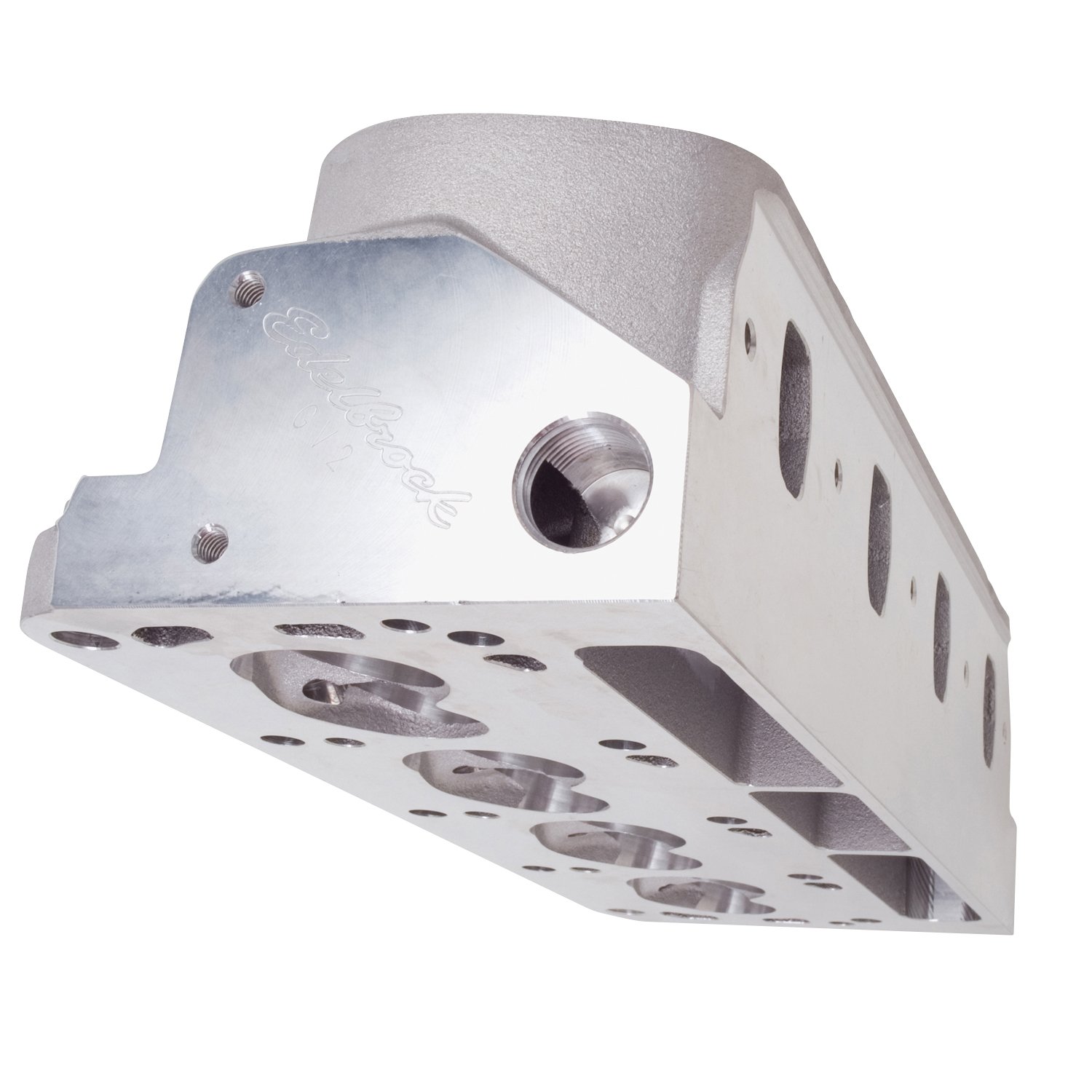

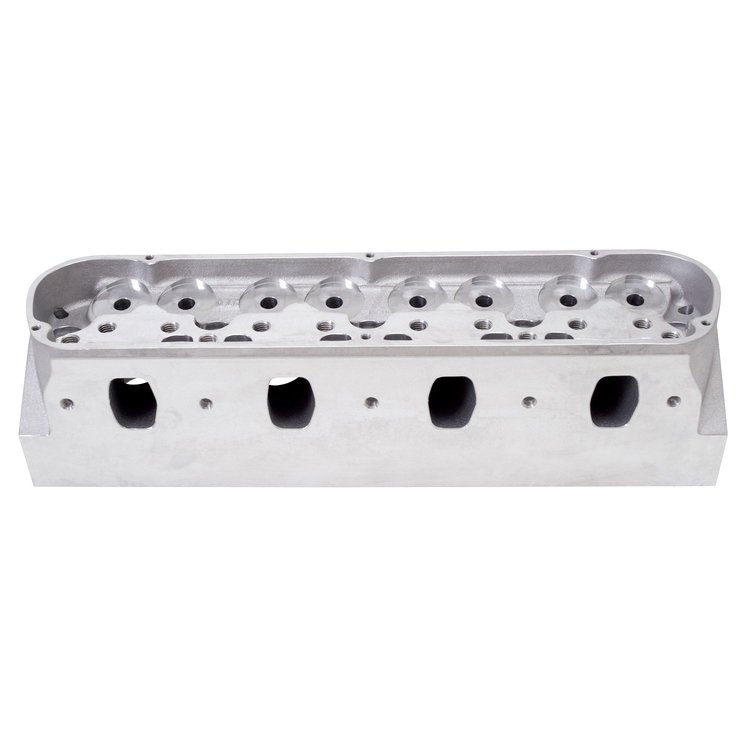

Pro Port Raw Glidden Victor II Cylinder Head for Small Block Ford

Vehicle Info Needed

EDELBROCKPART NUMBER: 350-77319

Pro Port Raw Glidden Victor II Cylinder Head for Small Block Ford

Name: Pro Port Raw Glidden Victor II Cylinder Head for Small Block Ford
Brand: EDELBROCK
SKU: 350-77319
Price: 1420.95 USD
Availability: InStock

^$1,420⁹⁵

Ships Tomorrow

Lowest Price Guarantee

Glidden Victor II Aluminum Cylinder Heads

Small Block Ford
Semi-Finished
HIP Process
1.34" x 1.77" Intake Port
1.66" x 1.43" Exhast Port
24cc Combustion Chambers
Valve Size: 2.24"/1.64"
Sold Individually
Designed For Classes Requiring In-Line Valves
But Not Restricted To OEM Port Location
Extended Intake Flange
Raised Runners
Work With Yates-Style Manifolds

Without pushrod hole clearance.

Important Note: This is a semi-machined version and must be finished by a professional cylinder head porting specialist.


Exhaust Port Exit:	1.66' x 1.43'
Valve Sizes:	2.24' Intake / 1.64' Exhaust (These are the maximum allowable size for each valve; these maximum sizes may not be used together)
Valve Pierce Points (X, Y):	-0.760",-0.000' Intake 1.170', 0.000' Exhaust Coordinates provided are cylinders 1, 3, 6, 8. Invert 'X' value for cylinders 2, 4, 5, 7.
Valve Spacing:	1.930'
Valve Guides:	Included
Valve Seats:	Included
Valve Angle:	11.3°
HIP Processed:	No

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.

CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeCylinder Head

BrandEDELBROCK

Package Height9.0

Package Width11.0

Package Length26.0

Weight34.05 PG

Part CategoryPerformance Parts

Cylinder Head MaterialAluminum

Intake Port LocationRaised

Emission50 State Legal

Exhaust Valves IncludedNo

Locks IncludedYes

Engine Make/SizeFord 260-302

Retainers IncludedNo

Guideplates IncludedNo

Rocker Arms IncludedNo

Oiling StyleThrough pushrod

Rocker Arm Nuts IncludedNo

Cylinder Head FinishNatural

Valve Seats MachinedNo

Intake Valve Angle11.3

Valve Seat MaterialDuctile iron

Heat CrossoverNo

FinishCast Aluminum

Valve Springs IncludedNo

UsageCompetition

Damper Spring IncludedNo

Valve Guides IncludedYes

Cnc-Machined Intake RunnerNo

Intake Valves IncludedNo

QuantitySold individually

Cylinder Head TypeStandard

Valve Stem Seals IncludedNo

Intake Valve Diameter2.24 in (56.896 mm)

Accessory Bolt Holes DrilledYes

Exhaust Port LocationRaised

Valve Guide MaterialManganese bronze

TypeBare

Combustion Chamber Volume (Cc)24

Machined For O-RingNo

PreparationRequires Professional Preparation (Bare)

Steam Holes DrilledNo

Rocker Arm Studs IncludedNo

Cylinder Head StyleBare

Part FitmentSemi Universal

Valve Cover Mounting StylePerimeter bolt

Cnc-Machined Exhaust RunnerNo

Cnc-Machined Combustion ChamberNo

Exhaust Valve Diameter1.64 in (41.656 mm)

Vendor Part Number77319

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
