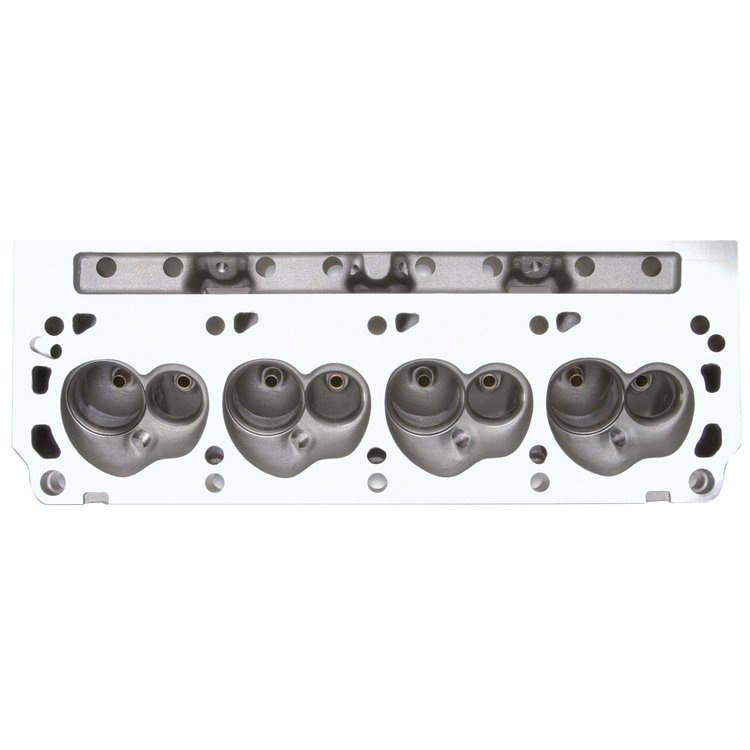

Victor Jr. Aluminum Cylinder Heads
- Victor Jr. 20° Aluminum Cylinder Head
- Small Block Ford 289-351W
- Port Volume: 210cc/75cc
- 70cc Combustion Chambers
- Bare Head, Sold Individually
With 500+ HP potential out-of-the-box, these heads have the same competition proven features as the Victor Jr. Ford heads but with 70cc combustion chambers. The 70cc combustion chambers are ideal for turbocharged and supercharged applications that require a lower staic compression ratio. Other feautre include CNC gasket-matched port entries and exits with blended valve bowls. The spark plug holes and valves are in the stock location with .150' raised valve cover rail. A groove in the deck surface allows most roller lifters to be changed without removing the heads.Tech Tip: To gain more spark plug clearance, Edelbrock recommends using Champion RC Series plugs such as the RC12YC (P/N 192-49776). They are 0.230' shorter than a conventional spark plug and have a 5/8' hex for easier access.
Valve Lift Intake Exhaust .100' 64 54 .200' 127 108 .300' 186 140 .400' 234 167 .500' 268 189 .600' 291 195 .700' 285 199 Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28' H2O
Part TypeCylinder Head
BrandEDELBROCK
Package Height9.0
Package Width11.0
Package Length26.0
Weight26.6 PG
Part CategoryPerformance Parts
Cylinder Head MaterialAluminum
Intake Port LocationStandard
EmissionNon-Emissions
Exhaust Valves IncludedNo
Locks IncludedNo
Engine Make/SizeFord 260-302
Retainers IncludedNo
Guideplates IncludedNo
Rocker Arms IncludedNo
Oiling StyleThrough pushrod
Rocker Arm Nuts IncludedNo
Cylinder Head FinishNatural
Valve Seats MachinedNo
Intake Valve Angle20
Valve Seat MaterialDuctile iron
Heat CrossoverNo
FinishCast Aluminum
Valve Springs IncludedNo
UsageCompetition
Damper Spring IncludedNo
Valve Guides IncludedYes
Cnc-Machined Intake RunnerNo
Intake Valves IncludedNo
QuantitySold individually
Cylinder Head TypeStandard
Valve Stem Seals IncludedNo
Intake Valve Diameter2.05 in (52.07 mm)
Accessory Bolt Holes DrilledNo
Exhaust Runner Volume (Cc)75
Exhaust Port LocationRaised
Valve Guide MaterialManganese bronze
TypeBare
Combustion Chamber Volume (Cc)70
Machined For O-RingNo
PreparationRequires Professional Preparation (Bare)
Steam Holes DrilledNo
Rocker Arm Studs IncludedNo
Cylinder Head StyleBare
Intake Runner Volume (Cc)210
Cnc-Machined Exhaust RunnerNo
Cnc-Machined Combustion ChamberNo
Exhaust Valve Diameter1.6 in (40.64 mm)
Vendor Part Number77389
Package Qty1
Package TypeEA
