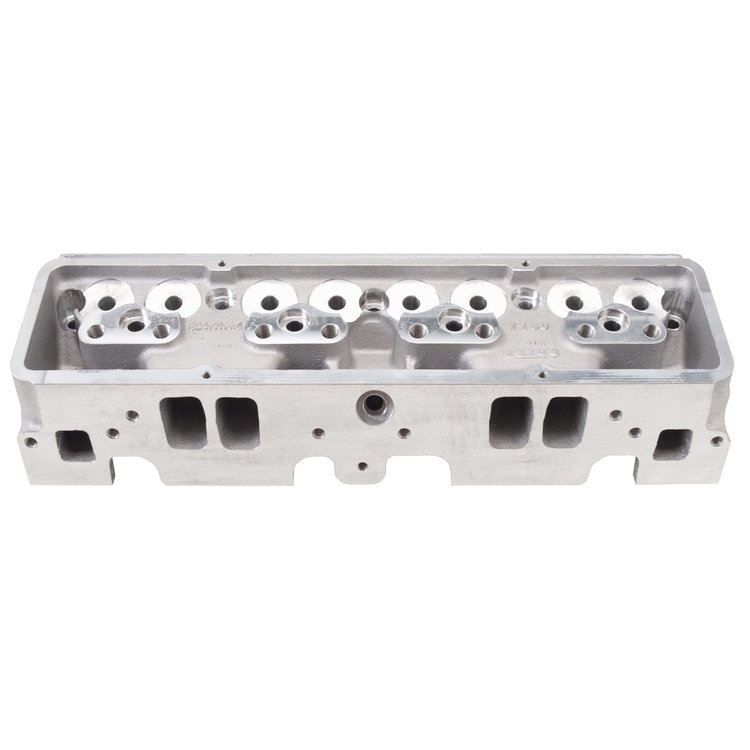

Pro Port Raw Victor 18° Cylinder Head for Small Block Chevy

Product Discontinued

EDELBROCKPART NUMBER: 350-775369

Pro Port Raw Victor 18° Cylinder Head for Small Block Chevy

Name: Pro Port Raw Victor 18° Cylinder Head for Small Block Chevy
Brand: EDELBROCK
SKU: 350-775369
Price: 695.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Victor Semi-Finished Cylinder Heads

Small Block Chevrolet
36cc Combustion Chamber
Valve Size: 2.24"/1.65"
HIP Process

Sold Individually

Combustion Chamber Size:	36cc (Unfinished Size)
Intake Port Entry:	1.18" x 1.77"
Exhaust Port Exit:	1.50"x 1.34"
Valve Sizes:	2.24' Intake / 1.68' Exhaust (These are the maximum allowable size for each valve; these maximum sizes may not be used together)
Valve Pierce Points (X, Y):	-0.805", -0.026" Intake 1.130', -0.026' Exhaust Coordinates provided are cylinders 1, 3, 6, 8. Invert 'X' value for cylinders 2, 4, 5, 7.
Valve Spacing:	1.935"
Valve Guides:	None
Valve Seats:	None
Valve Angle:	18°
HIP Processed:	Yes

Part TypeCylinder Head

BrandEDELBROCK

Package Height8.7

Package Width11.2

Package Length25.8

Weight30.03 PG

Part CategoryPerformance Parts

Cylinder Head MaterialAluminum

EmissionNon-Emissions

Exhaust Valves IncludedNo

Locks IncludedNo

Engine Make/SizeChevy Small Block (262-400)

Retainers IncludedNo

Guideplates IncludedNo

Rocker Arms IncludedNo

Oiling StyleThrough pushrod

Rocker Arm Nuts IncludedNo

Cylinder Head FinishNatural

Valve Seats MachinedNo

Intake Valve Angle18

Heat CrossoverNo

FinishCast Steel

Valve Springs IncludedNo

UsageCompetition

Damper Spring IncludedNo

Valve Guides IncludedNo

Cnc-Machined Intake RunnerNo

Intake Valves IncludedNo

QuantitySold individually

Cylinder Head TypeStandard

Valve Stem Seals IncludedNo

Intake Valve Diameter2.24 in (56.896 mm)

Accessory Bolt Holes DrilledYes

TypeOEM

Combustion Chamber Volume (Cc)36

Machined For O-RingNo

PreparationRequires Professional Preparation (Bare)

Steam Holes DrilledNo

Rocker Arm Studs IncludedNo

Cylinder Head StyleBare

Valve Cover Mounting StylePerimeter bolt

Cnc-Machined Exhaust RunnerNo

Cnc-Machined Combustion ChamberNo

Exhaust Valve Diameter1.65 in (41.91 mm)

Vendor Part Number775369

Package Qty1

Package TypeEA
