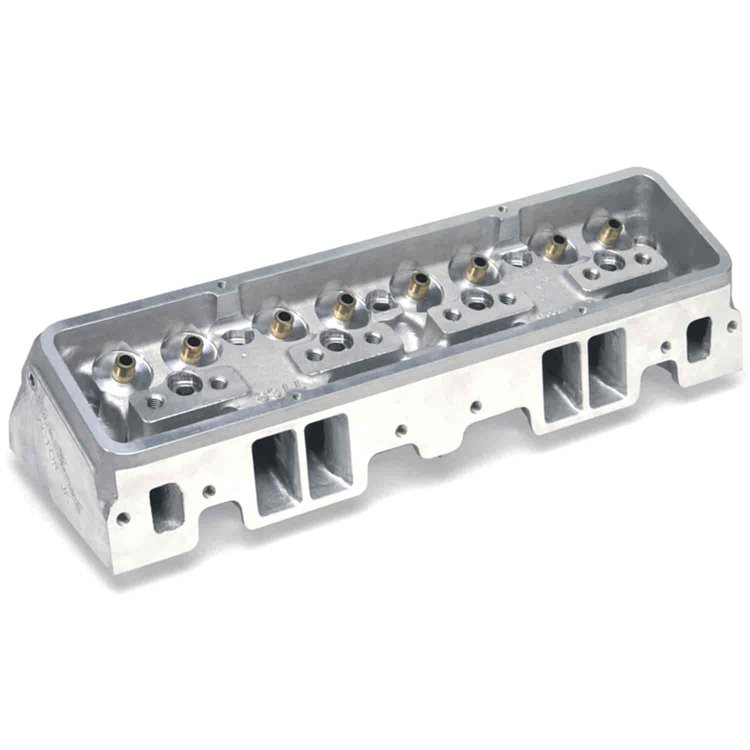

Victor Jr 23° Cylinder Head for Small Block Chevy

Name: Victor Jr 23° Cylinder Head for Small Block Chevy
Brand: EDELBROCK
SKU: 350-77569
Price: 635.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Victor Jr. 64cc Aluminum Cylinder Heads

1986 & Earlier Small Block Chevy 302-400ci
Port Volumes: 215cc/85cc
Combustion Chamber size: 64cc
Angled Spark Plug
Bare Head, Sold Each

These heads have .300' raised exhaust ports and hardened, ductile iron valve seats and phosphor bronze guides. A 9/16' thick deck surface provides superior gasket retention. Valves are 1-piece, stainless steel.
Installation Notes
To gain more spark plug clearance, Edelbrock recommends using Champion RC Series plugs, such as the RC12YC (P/N 192-49776). They are 0.230' shorter than conventional spark plugs and have a 5/8' hex for easier access. Due to valve-to-cylinder bore interference, SB-Chevy heads may not be used on engines with less than 4' bore (262, 265, 283, 305, 307 c.i.d.) except with camshafts having less than .450' valve lift.

Part TypeCylinder Head

BrandEDELBROCK

Package Height8.5

Package Width11.2

Package Length25.9

Weight25.95 PG

Part CategoryPerformance Parts

Vendor Part Number77569

Package Qty1

Package TypeEA
