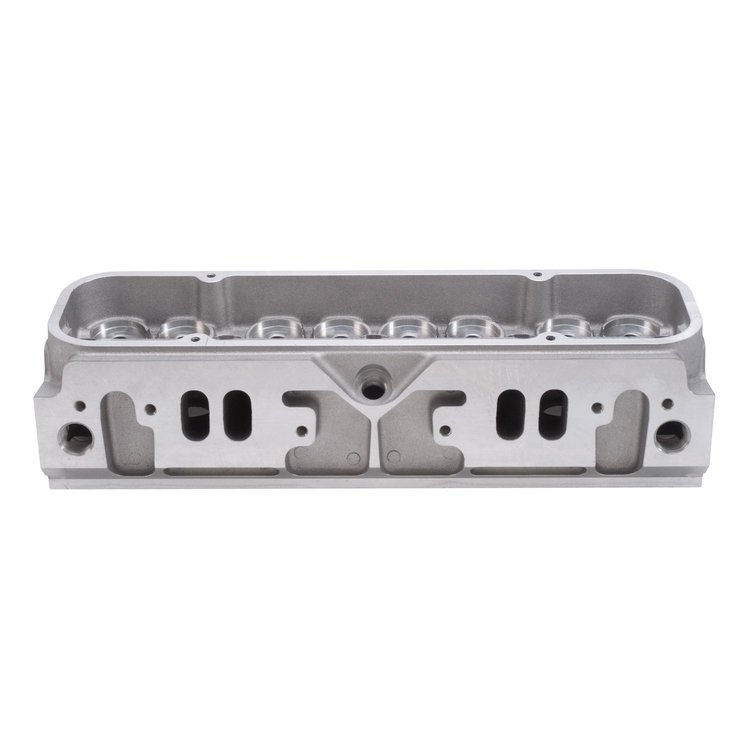

Pro-Port Raw Victor Cylinder Head for Pontiac V8
Product Discontinued
EDELBROCKPART NUMBER: 350-77839

Pro-Port Raw Victor Cylinder Head for Pontiac V8

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

    Pro-Port Victor Pontiac Cylinder Head
  • Semi-Finished; Without Pushrod Holes
  • Unmachined Combustion Chamber
  • 0.83'' x 1.61'' Intake Port Entry
  • 1.00'' x 1.273'' Exhaust Port Exit
  • Valve Sizes: 2.35"/1.72"
  • Valve Angle: 12.6°
  • Sold Each

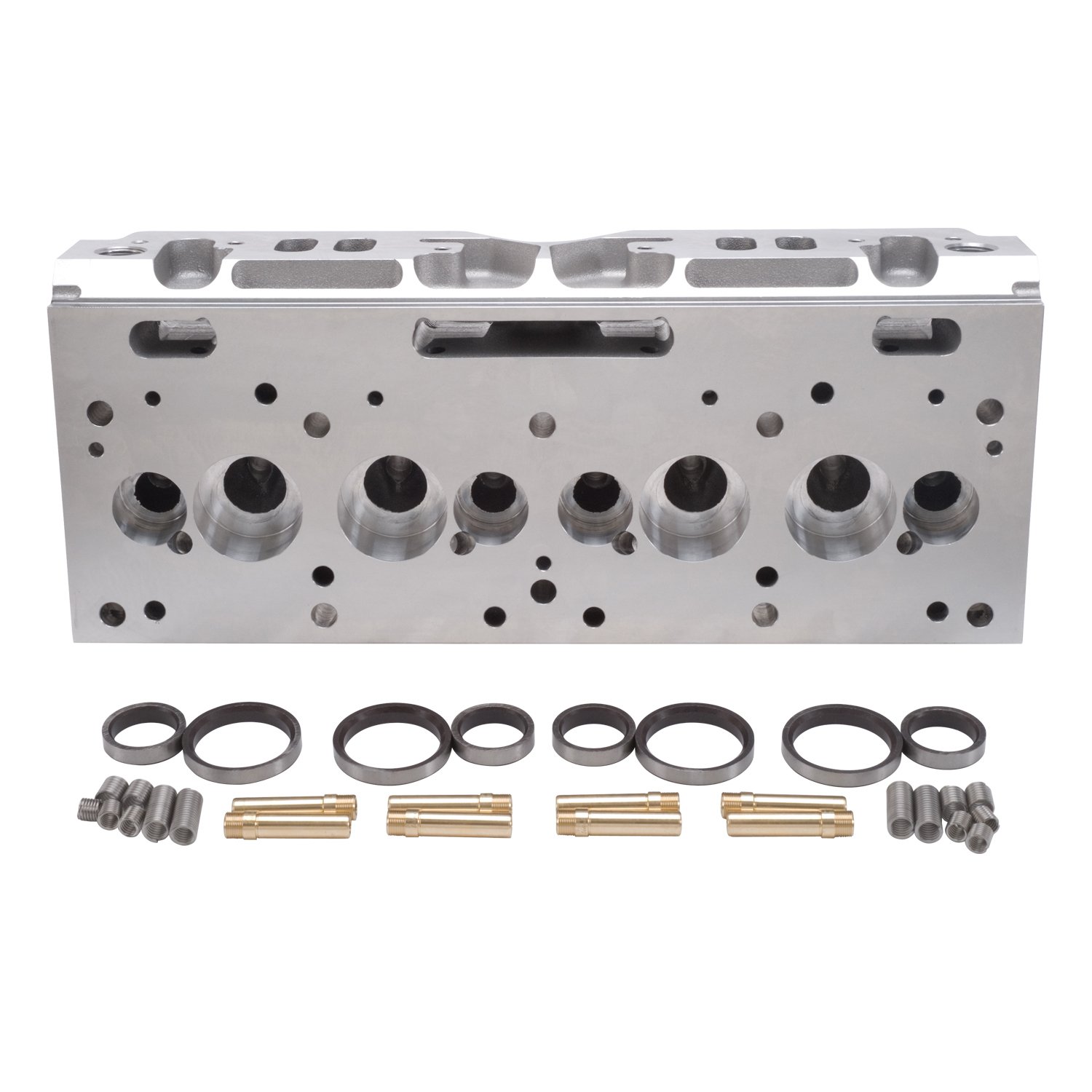

    Important Notes: Semi-machined version must befinished by a professional head porter (includes valveguides and seats installed with no intake pushrod holes).These heads require Ram Air IV (round port) styleexhaust manifolds or headers and Edelbrock head boltkit p/n 350-8549.

      Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

      These heads are the ultimate choice for extreme Pontiac race applications. They feature raised intake port openings and extended intake flanges for improved flow, while retaining the stock location, making them compatible with Victor series manifolds and Ram Air IV style headers. The intake valves have also been moved away from the cylinder wall allowing for improved burn characteristics when used with larger than stock diameter valves. These heads also feature a center water outlet for improved cooling and interlinked rocker stud pad with extra thread engagement for improved valvetrain stability. Finally, they feature raised valve cover rails and spring pads to compliment the improved port design, but still retain the stock bolt pattern. Victor Pro-Port Raw head p/n 350-77819 features 5/8'' raised intake ports and the intake flange has also been extended 5/8'', will fit stock manifolds. Victor Pro-Port Raw head p/n 350-77829 features a 1.25'' raised intake ports and flange. Made In The USA!

    Part TypeCylinder Head
    Product LineEdelbrock Pontiac Victor Pro-Port Raw Cylinder Heads
    BrandEDELBROCK
    Package Height8.75
    Package Width11.0
    Package Length26.0
    Weight44.35 PG
    Part CategoryPerformance Parts
    Cylinder Head MaterialAluminum
    Intake Port LocationRaised
    EmissionNon-Emissions
    Exhaust Valves IncludedNo
    Locks IncludedNo
    Engine Make/SizePontiac 326-455
    Retainers IncludedNo
    Guideplates IncludedNo
    Rocker Arms IncludedNo
    Oiling StyleThrough pushrod
    Rocker Arm Nuts IncludedNo
    Cylinder Head FinishNatural
    Valve Seats MachinedNo
    Intake Valve Angle12.6
    Heat CrossoverNo
    FinishCast Aluminum
    Valve Springs IncludedNo
    UsageRacing
    Damper Spring IncludedNo
    Valve Guides IncludedYes
    Cnc-Machined Intake RunnerNo
    Intake Valves IncludedNo
    QuantitySold individually
    Cylinder Head TypeStandard
    Valve Stem Seals IncludedNo
    Intake Valve Diameter2.35 in (59.69 mm)
    Accessory Bolt Holes DrilledYes
    Exhaust Port LocationStandard
    Valve Guide MaterialDuctile iron
    TypeBare
    Machined For O-RingNo
    PreparationRequires Professional Preparation (Bare)
    Steam Holes DrilledNo
    Rocker Arm Studs IncludedYes
    Cylinder Head StyleBare
    Valve Cover Mounting StylePerimeter bolt
    Cnc-Machined Exhaust RunnerNo
    Cnc-Machined Combustion ChamberNo
    Exhaust Valve Diameter1.72 in (43.688 mm)
    Vendor Part Number77839
    Package Qty1
    Package TypeEA
