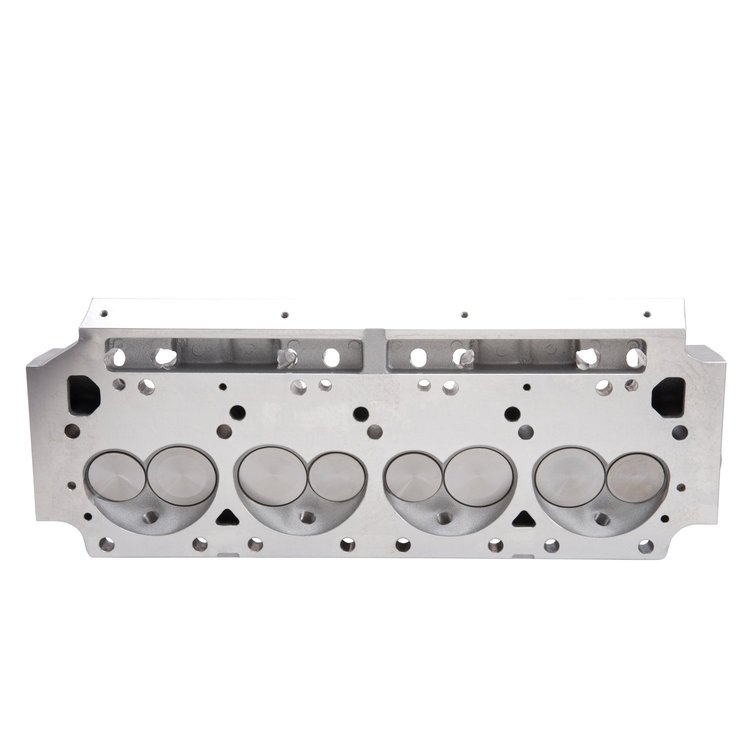

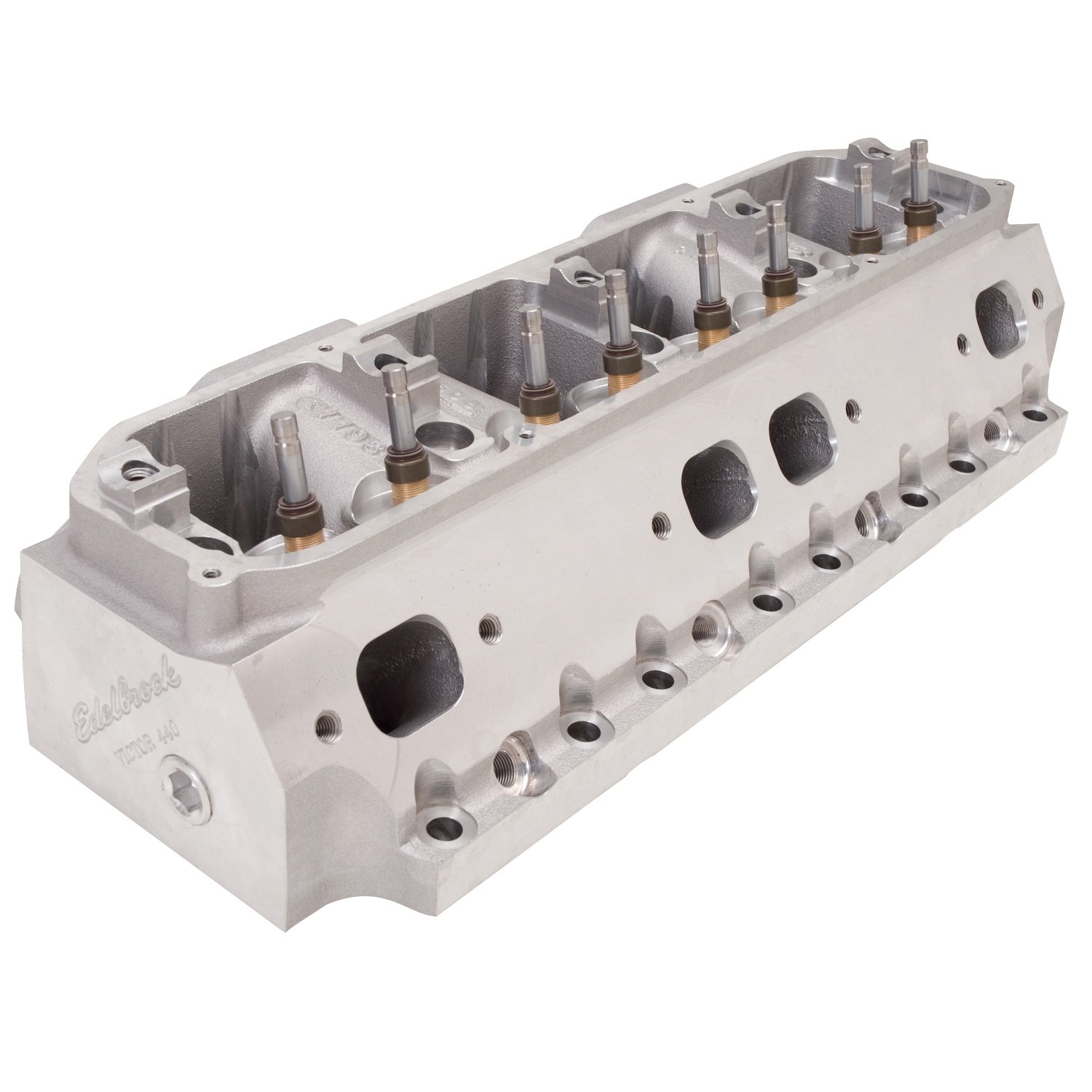

Vehicle Info NeededVictor Max Wedge Cylinder Head for Big Block Chrysler
Ships Today
Lowest Price Guarantee- 1961-1979 361-440ci Wedge Engines
- Port Volume: 290cc/100cc
- 72cc Combustion Chambers
- Valve Size: 2.20"/1.81"
- Bare Head with Valves, Sold Individually
Note: These heads are supplied with valves, reamed and semi-finished valve stem guides, and no valve job. They will require final guide sizing and valve seat finishing before installation. These heads require offset rocker arms for the intake ports and the exhaust side will accept standard-spec rockers. May require additional pushrod hole clearance for some combinations. Will need to use Edelbrock Valley plate kit 350-7798 for RB engines and 350-7799 for B engines.
Combustion Chamber Volume: 72cc Intake Runner Volume: 280cc (Raised .650") Exhaust Runner Volume: 100cc Intake Valve Diameter: 2.20' Exhaust Valve Diameter: 1.81' Valve Stem Diameter: 11/32' Valve Guides: Manganese Bronze Deck Thickness: 5/8' Valve Spring Diameter: N/A Valve Spring Maximum Lift: N/A Rocker Stud: N/A Guideplate: N/A Pushrod Diameter: 3/8' Valve Angle: 15° Exhaust Port Location: Raised .250" Spark Plug Fitment: 14mm x 3/4' Reach,
Gasket Seat
Flow Numbers as tested by Edelbrock's SuperFlo SF-1020 flow bench @ 28" H2OValve Lift .100" .200" .300" .400" .500" .600" .700" Intake 85 150 211 261 298 322 325 Exhaust 73 118 160 189 207 219 226 Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.
For B and RB Max Wedge Big Block Chryslers, these heads offer the proven combination of dedicated engineering and manufacturing.
Made In The USA!
Features:
- A356-T6 Aluminum Casting
- 15° Valve Angle
Show More
- Dual Quench 75cc Combustion Chambers To Increase Compression
- 290cc Intake Ports Raised .650"
- Intake Ports Machined To Match Max Wedge Intake Manifolds
- Intake Flange Extended .950" To Eliminate Need For Spacer Plates
- 100cc Exhaust Ports Raised .250"
- Exhaust Flange Extended .300" (Same As Mopar Stage 6)
- Dry Exhaust Bolt Holes With Helicoil® Thread Inserts
- Raised Valve Cover Rails For Additional Valvetrain Clearance
Note: Sold Without Springs Or Retainers. Use Recommended Springs To Match Your Cam.
