Made in USA

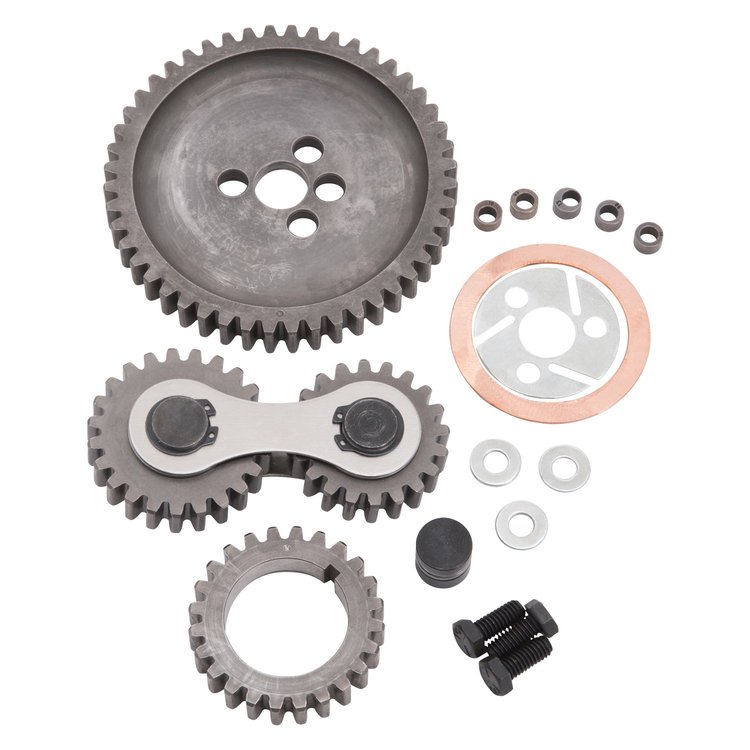

Accu-Drive Camshaft Timing Gear Drive for 1965-1990 Big Block Chevy
InfoVehicle Info Needed
EDELBROCKPART NUMBER: 350-7891

Accu-Drive Camshaft Timing Gear Drive for 1965-1990 Big Block Chevy

$34295
ShippingShips on 09/15/2026
Lowest PriceLowest Price Guarantee

Chevy Gear Drives
    Accu-Drive Gear Drive
  • 1965-1990 Big Block Chevy

    Accu-Drive® Notes:
    On some late-model engine blocks, it will be necessary to check clearance behind cam gear at the engine block at the 12 o'clock position. Make sure gear clears oil galley bosses on block when in the most rearward position. Grind or machine block for clearance. Clean block before assembling. Not applicable to stock Chevy hydraulic roller-lifter cam-equipped engines.

    Features
  • Precision Gear Drive System
  • Accurate Timing Control
  • No Chain To Stretch
  • Smooth Cam Rotation For Precise Valve Timing
  • Accurate and Multiple Cam Timing Settings
  • Compatible With All Standard Camshafts
  • Gears Made From Billet SAE-1144 Steel Induction Hardened Teeth

    Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

    The Accu-Drive camshaft gear drive kit replaces a stock timing chain with a precision gear drive system. Gear drives are easily installed - Just replace the stock crank and camshaft sprockets with Accu-Drive gears and slip in the idler assembly. The Accu-Drive gear drive system transmits power from the crankshaft gear to a full floating main idler which drives the camshaft gear. The unique feature of the Edelbrock Accu-Drive system is the ability of the main idler gear to float to an optimum position between the crankshaft and camshaft gears assuring absolutely equal load sharing between the crankshaft and the camshaft gears. Important Note: Accu-Drive Gear Drives are not recommended for use above 7,000 rpm or on computer-controlled vehicles with knock sensors.

Part TypeTiming Gear
Product LineEdelbrock Accu-Drive Timing Gear Drive
BrandEDELBROCK
Package Height1.75
Package Width6.75
Package Length11.0
Weight4.4 PG
Part CategoryPerformance Parts
NoisyNo
Gaskets IncludedNo
Thrust Bearing IncludedYes
Offset Bushings IncludedNo
Camshaft Gear Attachment3-bolt
Maximum Advance/Retard At Crankshaft2 degree
QuantitySold individually
Maximum Advance/Retard At Camshaft4 degree
Part FitmentSemi Universal
Gear MaterialSteel billet
Gear Drive Idler StyleDual idler
Vendor Part Number7891
Package Qty1
Package TypeEA
