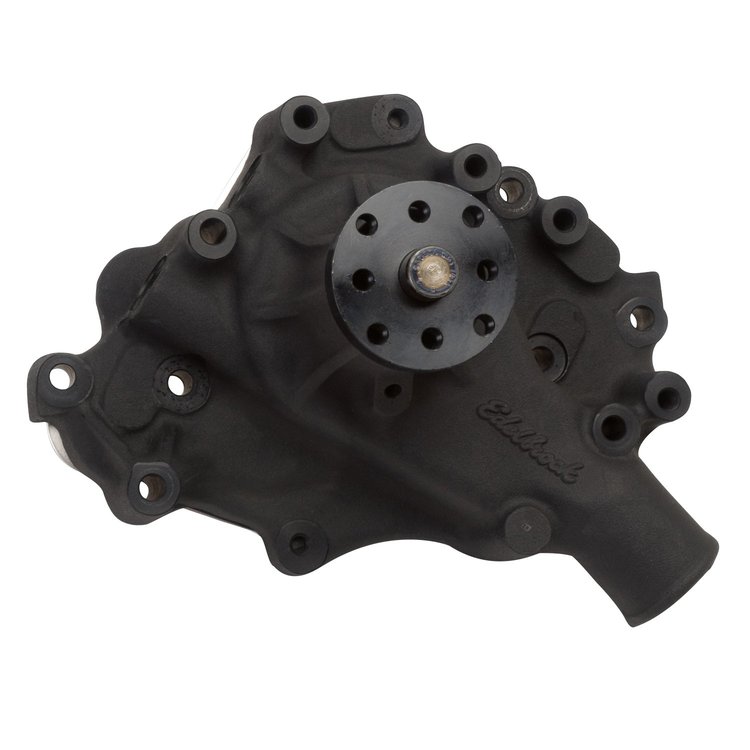

Victor Series Circle Track Aluminum Water Pump Small Block Ford
- Victor Series Circle Track Aluminum Water Pump
- Small Block Ford
- Hard Black Anodized Finish
Fits all Windsor style blocks with Small Block Ford timing cover. Comes with heavy-duty 3/4" ball/roller bearing. Left-hand inlet with back plate. - Dimension from block surface to hub: 5.70"
- Inlet Diameter: 1.78"
- Pilot Shaft: 3/4"
Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.
These competition water pumps are designed for circle track and endurance racing applications. They feature a revised impeller entry, a black anodized finish and .100" thicker rear cover for greater durability. The water pump housing is equipped with auxiliary AN or NPT water outlets to ease fabrication of custom plumbing systems. These water pumps provide maximum cooling with equal (+/- 1%) distribution to both sides of the block. By eliminating hot spots, the engine produces optimum power from every cylinder without detonation and pre-ignition. Other features include billet hub and heavy-duty ball/roller bearings.
Show More
| Circle Track Water Pump Dyno Tests Dyno Tests show that Edelbrock Pumps deliver substantial flow as well as distributing water almost equally to both sides of the engine. | ||
| SMALL-BLOCK CHEVY CIRCLE TRACK PUMP p/n 350-8816 | ||
| Pump RPM | Left Flow (gal/min) | Right Flow (gal/min) |
| 2000 | 14.37 | 14.84 |
| 3000 | 21.95 | 22.40 |
| 4000 | 29.52 | 29.82 |
| 5000 | 37.08 | 36.70 |
| SMALL-BLOCK FORD CIRCLE TRACK PUMP p/n 350-8833 | ||
| Pump RPM | Left Flow (gal/min) | Right Flow (gal/min) |
| 2000 | 16.03 | 16.16 |
| 3000 | 24.07 | 24.11 |
| 4000 | 32.31 | 32.51 |
| 5000 | 40.12 | 40.08 |
