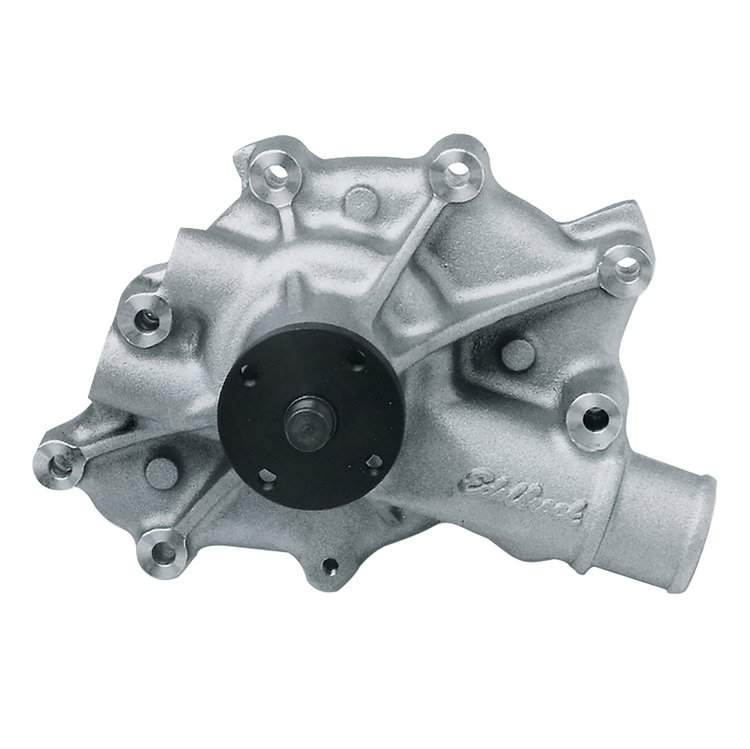

Victor Series Satin Aluminum Water Pump for 1986-1993 Ford 5.0L V8
InfoVehicle Info Needed
EDELBROCKPART NUMBER: 350-8840

Victor Series Satin Aluminum Water Pump for 1986-1993 Ford 5.0L V8

$33995
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Blue RTV, Temperature Resistant up to 500 degrees [3 oz. Tube]

JEGS

Blue RTV, Temperature Resistant up to 500 degrees [3 oz. Tube]

Part Number : 555-28030
$799$8.99
You Save$1.00
Black RTV, Temperature Resistant up to 625 Degrees F [3.8 oz. Tube]

JEGS

Black RTV, Temperature Resistant up to 625 Degrees F [3.8 oz. Tube]

Part Number : 555-28035
$799$8.99
You Save$1.00
Gray RTV Temperature Resistant up to 625 degrees F

JEGS

Gray RTV Temperature Resistant up to 625 degrees F

Part Number : 555-28036
$799$8.99
You Save$1.00
Pressure Bead Gasket Maker Silicone 8 oz

JEGS

Pressure Bead Gasket Maker Silicone 8 oz

Part Number : 555-28040
$2099$23.99
You Save$3.00

Small Block Ford
    Victor Series Aluminum Water Pump
  • 1986-1993 Ford 5.0L V8
  • Not for Early 289-302
  • Reverse Rotation (Serpentine Drive)
  • Satin Finish

    Fits all 1986-93 5.0L V8s using a serpentine accessory drive belt. Reverse rotation; not for early model 289-302 V8s. Has heavy-duty 3/4" ball/roller bearing.
  • Dimension from block surface to hub: 5-3/4"
  • Inlet Diameter: 1.78"
  • Pilot Shaft: 5/8"

    Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

    Using state-of-the-art racing technology, Edelbrock "super cooling" Victor Series aluminum water pumps are designed to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high-performance pumps flow in only one direction for optimum efficiency.

    Show More

    The casting's computer-designed internal passages and CNC-machined cast iron impeller produce the maximum flow rate possible. Water pump features include: aircraft industry clearances; heavy-duty 3/4" integral ball/roller bearings and billet steel hubs. All Edelbrock Chevrolet water pumps that may be used in race applications have a unique O-ring that provides a far superior seal than conventional gaskets. This exclusive O-ring minimizes clearance and maximizes flow for racing and heavy-duty applications. All Victor Series high-performance aluminum water pumps are extremely durable as well as efficient.

    Click here to choose the correct water pump you need.
    Click here to see the internal make up of the Victor Series Water Pumps!



Part TypeWater Pump
Product LineEdelbrock Victor Series Aluminum Water Pumps with Satin Finish
BrandEDELBROCK
Package Height8.5
Package Width9.2
Package Length14.0
Weight9.44 PG
Part CategoryPerformance Parts
Pump MaterialAluminum
Pump FlowHigh-volume
TypeMechanical
Pilot Diameter0.625 in (15.9 mm)
StyleStreet/High-Performance
QuantitySold individually
Water Pump RotationCounterclockwise
Part FitmentSemi Universal
FinishAs Cast
Engine Make/SizeFord 260-302
Pump FinishNatural
Vendor Part Number8840
Package Qty1
Package TypeEA
