Made in USA

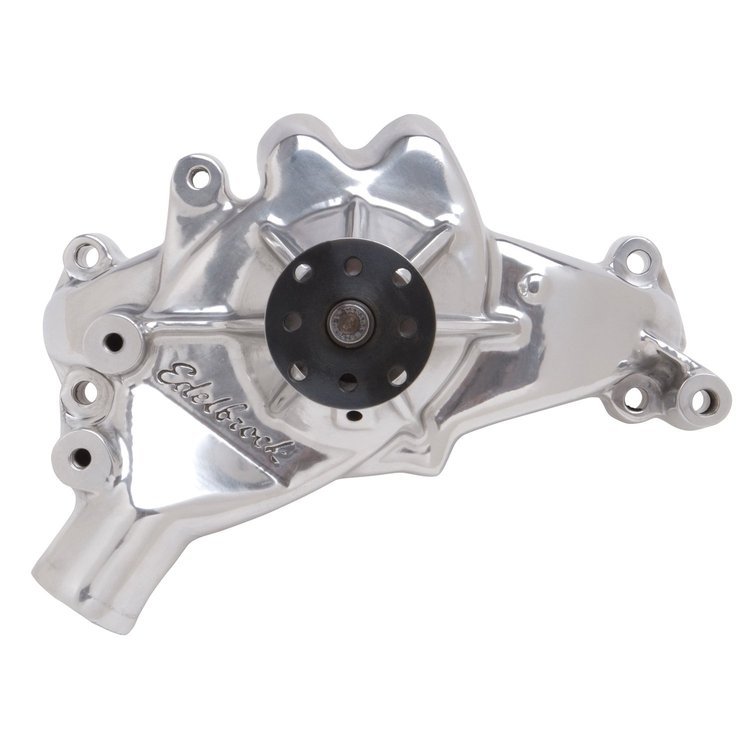

Victor Series PolishedAluminum Water Pump for 1969-1991 Big Block Chevy 396-502
InfoVehicle Info Needed
EDELBROCKPART NUMBER: 350-8861

Victor Series PolishedAluminum Water Pump for 1969-1991 Big Block Chevy 396-502

$52495
1 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Blue RTV, Temperature Resistant up to 500 degrees [3 oz. Tube]

JEGS

Blue RTV, Temperature Resistant up to 500 degrees [3 oz. Tube]

Part Number : 555-28030
$799$8.99
You Save$1.00
Black RTV, Temperature Resistant up to 625 Degrees F [3.8 oz. Tube]

JEGS

Black RTV, Temperature Resistant up to 625 Degrees F [3.8 oz. Tube]

Part Number : 555-28035
$799$8.99
You Save$1.00
Gray RTV Temperature Resistant up to 625 degrees F

JEGS

Gray RTV Temperature Resistant up to 625 degrees F

Part Number : 555-28036
$799$8.99
You Save$1.00
Pressure Bead Gasket Maker Silicone 8 oz

JEGS

Pressure Bead Gasket Maker Silicone 8 oz

Part Number : 555-28040
$2099$23.99
You Save$3.00

Big Block Chevy
    Victor Series Aluminum Water Pump
  • 1969-1991 Big Block Chevy 396-502ci Mark IV
  • Long-Style Pump
  • Standard Rotation (V-Belt)
  • Polished Finish

    Fits 1969-1987 Big-Blocks and some 1988-1991 heavy duty trucks with Mark IV engines. Does not fit Corvettes or trucks over 1-ton. Includes 3/4" ball/roller bearing.
  • Dimension from block surface to hub: 7-5/16"
  • Inlet Diameter: 1.875"
  • Pilot Shaft: 5/8"

    Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

    Using state-of-the-art racing technology, Edelbrock has designed these ''super cooling'' Victor Series aluminum water pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high-performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and CNC-machined cast iron impeller produce the maximum flow rate possible. Edelbrock Victor Series Water Pump Features include: aircraft industry clearances; heavy-duty 3/4'' integral ball/roller bearings and billet steel hubs. All Edelbrock Chevrolet water pumps that may be used in race applications have a unique O-ring that provides a far superior seal than conventional gaskets. This exclusive O-ring minimizes clearance and maximizes flow for racing and heavy-duty applications. All Victor Series high-performance aluminum water pumps are extremely durable as well as efficient.

    Show More

    Polished Finish - Now you can get a show-quality water pump right out of the box with the custom look you want. Edelbrock's hand smoothed and polished finish provides traditional good looks and a smooth appearance at a price that won't break your wallet.

    Click here to choose the correct water pump you need.

    Click here to see the internal make up of the Victor Series Water Pumps!

Part TypeWater Pump
Product LineEdelbrock Victor Series Water Pumps - Polished Finish
BrandEDELBROCK
Package Height8.8
Package Width9.2
Package Length13.6
Weight10.65 PG
Part CategoryPerformance Parts
Pump MaterialAluminum
Pilot Diameter0.625 in (15.9 mm)
QuantitySold individually
Water Pump RotationClockwise
Engine Make/SizeChevy Big Block (396-454)
Pump FinishPolished
Pump FlowHigh-volume
TypeMechanical
Water Pump Inlet Diameter1.875 in (47.6 mm)
StyleStreet/High-Performance
Part FitmentSemi Universal
FinishPolished
Vendor Part Number8861
Package Qty1
Package TypeEA
