Made in USA

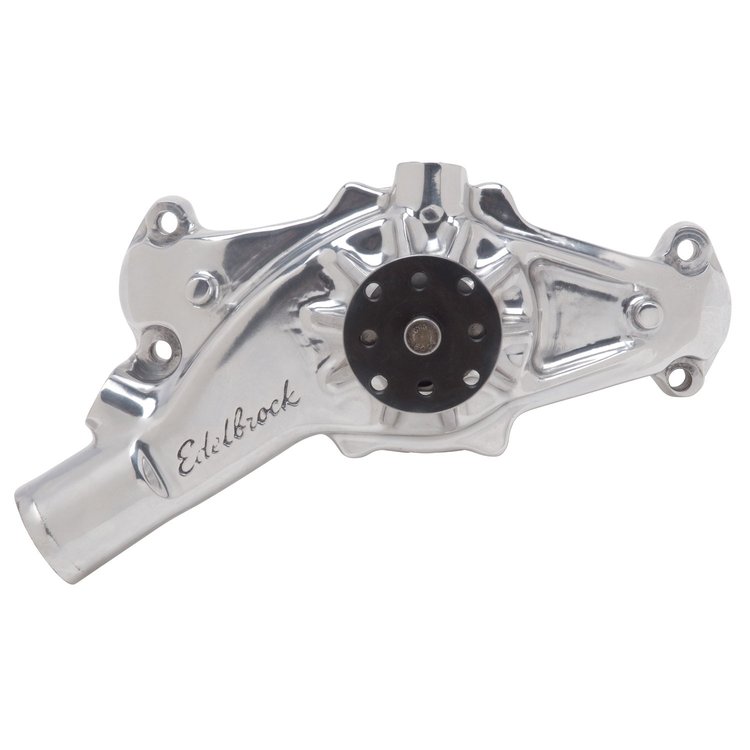

Victor Series Polished Aluminum Water Pump for 1965-Later Big Block Chevy 396-502
InfoVehicle Info Needed
EDELBROCKPART NUMBER: 350-8864

Victor Series Polished Aluminum Water Pump for 1965-Later Big Block Chevy 396-502

$53295
6 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Big Block Chevy
    Victor Series Aluminum Water Pump
  • 1965-Later Big Block Chevy 396-502ci
  • Short-Style Pump
  • Ideal for aftermarket Serpentine Belt Pulleys
  • Reverse Rotation (Serpentine Drive)
  • Polished Finish

    This pump is ideal for street rods with aftermarket serpentine belt pulleys. Comes with heavy-duty 3/4" ball/ball bearing.
  • Dimension from block surface to hub: 5-3/4"
  • Inlet Diameter: 2"
  • Pilot Shaft: 5/8"

    Since founder Vic Edelbrock Sr. began building performance intake manifolds in 1938, Edelbrock has grown into one of the most trusted names in American high-performance parts, from carburetors and intake manifolds to cylinder heads, crate engines, and EFI systems. JEGS has spent decades supplying Edelbrock components to racers, engine builders, and street enthusiasts, backing this extensive lineup with in-house technical support, fast shipping, and a Price Match Guarantee so you can choose proven Edelbrock parts with confidence.

    Using state-of-the-art racing technology, Edelbrock has designed these ''super cooling'' Victor Series aluminum water pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high-performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and CNC-machined cast iron impeller produce the maximum flow rate possible. Edelbrock Victor Series Water Pump Features include: aircraft industry clearances; heavy-duty 3/4'' integral ball/roller bearings and billet steel hubs. All Edelbrock Chevrolet water pumps that may be used in race applications have a unique O-ring that provides a far superior seal than conventional gaskets. This exclusive O-ring minimizes clearance and maximizes flow for racing and heavy-duty applications. All Victor Series high-performance aluminum water pumps are extremely durable as well as efficient.

    Show More

    Polished Finish - Now you can get a show-quality water pump right out of the box with the custom look you want. Edelbrock's hand smoothed and polished finish provides traditional good looks and a smooth appearance at a price that won't break your wallet.

    Click here to choose the correct water pump you need.

    Click here to see the internal make up of the Victor Series Water Pumps!

Part TypeWater Pump
Product LineEdelbrock Victor Series Water Pumps - Polished Finish
BrandEDELBROCK
Package Height8.8
Package Width9.2
Package Length14.3
Weight9.55 PG
Part CategoryPerformance Parts
Pump MaterialAluminum
Pump FlowHigh-volume
TypeMechanical
Pilot Diameter0.625 in (15.9 mm)
StyleStreet/High-Performance
QuantitySold individually
Water Pump RotationCounterclockwise
Part FitmentSemi Universal
FinishPolished
Engine Make/SizeChevy Big Block (396-454)
Pump FinishPolished
Vendor Part Number8864
Package Qty1
Package TypeEA
