Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford

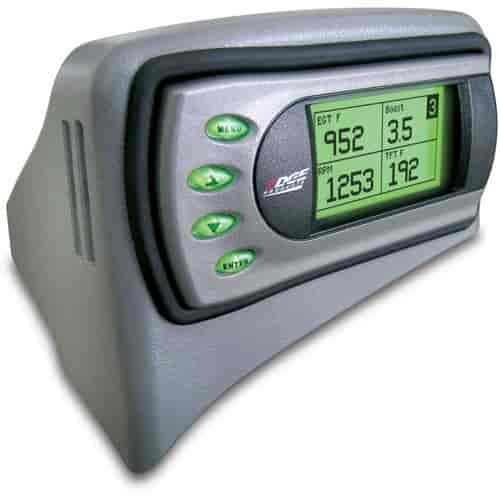

Evolution Programmer2005-2007 Ford 6.0L Powerstroke Includes Dash Mount Pod 50-State Legal
ADVANCED TUNING Able to adjust shift points/pressure Adjustable speed/rev limiter Speedometer correction (corrects tire size on 2005-2007 vehicles with ABS)PIDS
The Evolution allows the user to view up to 5 PIDs at one time. There are 11 different PIDs to choose from. Below is a list and description of each:
ADVANCED TUNING
The Evolution allows the user to view up to 5 PIDs at one time. There are 11 different PIDs to choose from. Below is a list and description of each:
- RPM (revolutions per minute) - Engine speed.
- MPH (miles per hour) - Note: Dash display may be +/-3 MPH off from the digital display due to mechanical differences in the spring, etc. used to control the gauge.
- ECT (engine coolant temperature) - Degrees F.
- BST (Boost Pressure) - PSI
- EGT (Exhaust Gas Temp) - Degrees F.
- EOT (Engine oil temperature) - Degrees F.
- TFT (Transmission fluid temperature) - Degrees F.
- IAT (Intake air temperature) - Degrees F.
- BARO (Barometric pressure) - PSI
- BAT (Battery voltage)
- DTC (Diagnostic trouble code count)
- Level 0: Stock
- Level 1 (Trans Only) Only adds transmission line pressure for firmer shifts.
- Level 2 (Economy): 15 Horsepower - 55 Foot Pounds of Torque
- Level 3 (Tow): 60 Horsepower - 110 Foot Pounds of Torque
- Level 4 (Extreme): 100 Horsepower - 200 Foot Pounds of Torque
Part TypeComputer Programmer
BrandEDGE PRODUCTS
Package Height5.2
Package Width6.5
Package Length9.5
Weight1.9 PG
Part CategoryPerformance Parts
QuantitySold individually
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
