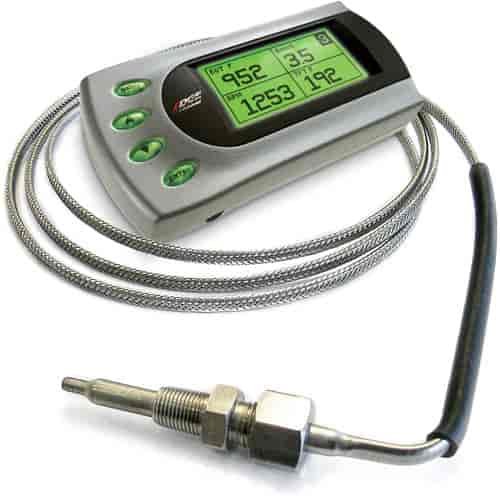

Evolution Programmer w/Monitor 2006-07 Chevy/GMC Duramax LBZ/LLY

Name: Evolution Programmer w/Monitor 2006-07 Chevy/GMC Duramax LBZ/LLY
Brand: EDGE PRODUCTS
SKU: 367-25002
Price: 464.99 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

Evolution Programmer w/Monitor

2006-07 Chevy/GMC Duramax LBZ/LLY

ADVANCED TUNING

Speedometer correction (corrects for trucks tire size)

Adjustable speed limiter

PIDS
The Evolution allows the user to view up to 5 PIDs at one time. There are 24 different PIDs to choose from. Below is a list and description of each:

RPM (Revolutions Per Minute) - Engine speed.
MPH (Miles Per Hour) - Note: Dash display may be +/-3 MPH off from the digital display due to mechanical differences in the spring, etc. used to control the gauge.
ECT (Engine Coolant Temperature) - Degrees F.
LOAD (Engine Load) - Calculated engine Load
GEAR (Current Gear) - Current gear.
TFT (Trans Fluid Temperature) - Degrees F.
BST (Boost Press) - PSI
MAF (Mass Air Flow) - Grams Per Second
IAT (Intake Air Temperature in manifold) - Degrees F.
DFRP (Desired Fuel Rail Pressure) - PSI
AFRP (Actual Fuel Rail Pressure) - PSI
OSS (Output Shaft Speed) - RPM
MAP (Manifold absolute Pressure) - kPa
MIT (Main Injection Timing) - Degrees
TQ (Engine Torque) - ft/lbs
BAT (Battery voltage) - Volts
CFR (Calculated Fuel Rate) - mm3
VPOS (Turbo Vane Position) - %
APP (Accelerator Pedal Position) - %
IATT (Intake Air Temperature in intake tube) - Degrees F
BARO (Barometric Pressure) - kPa
FTMP (Fuel Temperature) - Degrees F
DIDL (Desired Idle) - RPM
EGT (Exhaust Gas Temperature) - Degrees F

The following power gains are representative of an actual test vehicle. These gains were measured on a SuperFlow Dyno at an altitude of 4400 ft above sea level, and represent power delivered to the rear wheels of the test truck. The only modification made to the test truck was the addition of the Edge Evolution module. Power gains may vary based on vehicle and geographical location.

Level 0: Stock

Level 1: 30 Horsepower - 60 Foot Pounds of Torque

Level 2: 60 Horsepower - 135 Foot Pounds of Torque

Level 3: 85 Horsepower - 185 Foot Pounds of Torque

Level 4: 100 Horsepower - 220 Foot Pounds of Torque

Note: These products will not work on GM 4500/5500 or larger series trucks, it will only work on the 2500HD and the 3500 models.

Part TypeComputer Programmer

BrandEDGE PRODUCTS

Package Height5.3

Package Width6.7

Package Length9.5

Weight1.9 PG

Part CategoryPerformance Parts

QuantitySold individually

Vendor Part Number25002

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the graphs PDF File

Some parts are not legal for use in California or other states with similar laws / regulations
