Product Discontinued
EDGE PRODUCTSPART NUMBER: 367-25003

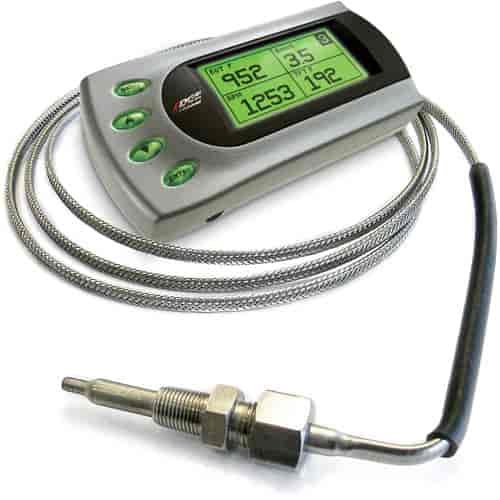

Evolution Programmer w/Monitor 2007-10 Chevy/GMC Duramax 6.6L LMM
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
GM
Evolution Programmer w/Monitor2007-10 Chevy/GMC Duramax 6.6L LMM
ADVANCED TUNING Corrects for non-stock tire sizes to display true speed Adjusts speed and rev limiters (Automatically adjusted in power levels)PIDS
The Evolution allows the user to view up to 5 PIDs at one time. There are 24 different PIDs to choose from. Below is a list and description of each: Level 0: Stock Level 1: 30 Horsepower - 57 Foot Pounds of Torque Level 2: 50 Horsepower - 90 Foot Pounds of Torque Level 3: 75 Horsepower - 150 Foot Pounds of Torque Level 4: 85 Horsepower - 200 Foot Pounds of Torque
ADVANCED TUNING
The Evolution allows the user to view up to 5 PIDs at one time. There are 24 different PIDs to choose from. Below is a list and description of each:
- RPM (Revolutions Per Minute) - Engine speed.
- MPH (Miles Per Hour) - Note: Dash display may be +/-3 MPH off from the digital display due to mechanical differences in the spring, etc. used to control the gauge.
- ECT (Engine Coolant Temperature) - Degrees F.
- LOAD (Engine Load) - Calculated engine Load
- GEAR (Current Gear) - Current gear.
- TFT (Trans Fluid Temperature) - Degrees F.
- BST (Boost Press) - PSI
- MAF (Mass Air Flow) - Grams Per Second
- IAT (Intake Air Temperature in manifold) - Degrees F.
- DFRP (Desired Fuel Rail Pressure) - PSI
- AFRP (Actual Fuel Rail Pressure) - PSI
- OSS (Output Shaft Speed) - RPM
- MAP (Manifold absolute Pressure) - kPa
- MIT (Main Injection Timing) - Degrees
- TQ (Engine Torque) - ft/lbs
- BAT (Battery voltage) - Volts
- CFR (Calculated Fuel Rate) - mm3
- VPOS (Turbo Vane Position) - %
- APP (Accelerator Pedal Position) - %
- IATT (Intake Air Temperature in intake tube) - Degrees F
- BARO (Barometric Pressure) - kPa
- FTMP (Fuel Temperature) - Degrees F
- DIDL (Desired Idle) - RPM
- EGT (Exhaust Gas Temperature) - Degrees F
Note: These products will not work on GM 4500/5500 or larger series trucks, it will only work on the 2500HD and the 3500 models.
Part TypeComputer Programmer
BrandEDGE PRODUCTS
Package Height5.3
Package Width6.5
Package Length9.5
Weight1.9 PG
Part CategoryPerformance Parts
QuantitySold individually
Vendor Part Number25003
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
