Vehicle Info NeededENERGY SUSPENSIONPART NUMBER: 355-9-9105R

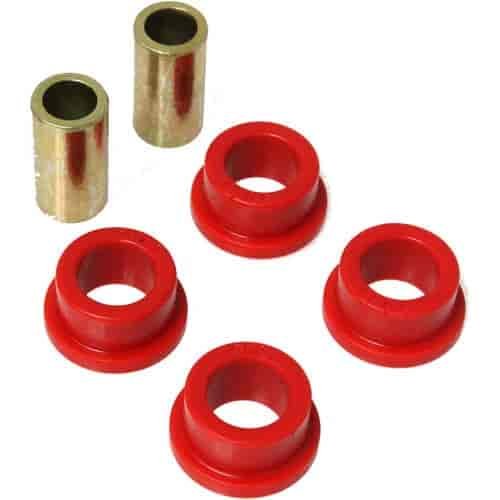

Link-Flange Type Bushing Kit Outer tube ID: 1.125"
$1554
Ships on 09/09/2026
Lowest Price GuaranteeTube I.D. 1.125"
- Link-Flange Type Bushing Kit
- Outer tube ID: 1.125"
- Bolt Diameter: 1/2"
- Red
- Universal
Outer Tube: - ID: 1.125"
- Length: 1.620"
- Minimum Wall Thickness: 0.125"
Bushing: - OD: 1.140"
- ID: 0.750"
- Barrel Length: 0.500"
- Flange OD: 1.390"
- Flange Thickness: 0.187"
Inner Sleeve: - OD: 0.750"
- ID: 0.500"
- Length: 1.400"
Fastener Bolt Diameter: 1/2"
Part TypeSway Bar End Link Bushing
BrandENERGY SUSPENSION
Package Height2.5
Package Width2.6
Package Length5.1
Weight0.3 PG
Part CategoryPerformance Parts
Sleeves IncludedYes
Sleeve Inside Diameter0.5 in (12.7 mm)
Sleeve Length1.4 in (35.6 mm)
Bushing ColorRed
PositionN/A
Bushing MaterialPolyurethane
QuantitySold as a kit
Bushing Flange Length0.188 in (4.775 mm)
Part FitmentSemi Universal
Barrel Length0.5 in (12.7 mm)
Bushing Outside Diameter1.125 in (28.575 mm)
Vendor Part Number9.9105R
Package Qty1
Package TypeEA
