Vehicle Info NeededENERGY SUSPENSIONPART NUMBER: 355-9-9106G

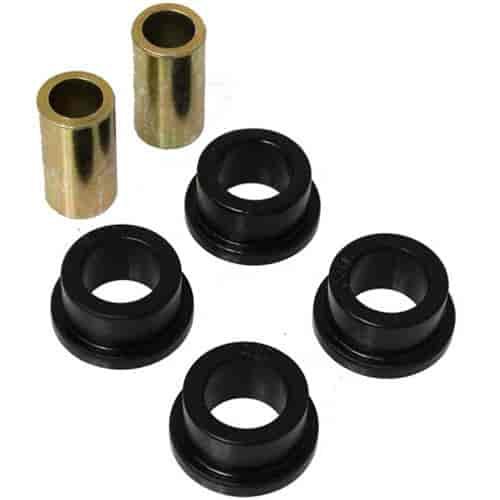

Polyurethane Sway Bar End Link Bushing Kit, 1-1/8 in. OD, Black
Color:
$1561
More than 10 available
Ships Today
Lowest Price GuaranteeTube I.D. 1.125"
Sway Bar End Link Bushings1-1/8 in. Bushing OD, 9/16 in. Sleeve ID Black Polyurethane Construction 0.5 in. Barrel, 3/16 in. Flange Length Includes 4 Bushings and 2 Sleeves
When end link bushings wear out, the sway bar link develops play that shows up as clunks over uneven pavement. This universal kit rebuilds the link with black polyurethane bushings and sleeves that fit a wide range of end link tubes.
Energy Suspension 9.9106G Sway Bar End Link Bushings Features:
- Bushing outer diameter of 1-1/8 in. with a 9/16 in. sleeve inner diameter
- Molded from black polyurethane for longer service life than rubber
- Barrel length of 0.5 in. and flange length of 3/16 in.
- Includes 4 bushings and 2 sleeves; outer tube and fasteners not included
- Made from our HYPER-FLEX formula for extreme durability. Suggested uses include control arms, track rods, 4 link bars, push or nerf bars, tire carrier racks, engine/transmission mounts. Please note the proper preloads are calculated based on the dimensions listed in the chart. A non-preloaded bushing is not recommended. Only use DOM tubing or equivalent with no seam on ID of tubing. Each set includes 4-bushings and 2-sleeves. Outer tube and fastners are not included.
Part TypeSway Bar End Link Bushing
Product LineUniversal Link- Flange Type Bushings
BrandENERGY SUSPENSION
Package Height2.5
Package Width2.6
Package Length3.8
Weight0.28 PG
Part CategoryPerformance Parts
Sleeves IncludedYes
Sleeve Inside Diameter0.563 in (14.3 mm)
Sleeve Length1.4 in (35.6 mm)
Bushing ColorBlack
PositionN/A
Bushing MaterialPolyurethane
ColorBlack
QuantitySold as a kit
MaterialPolyurethane
Bushing Flange Length0.188 in (4.775 mm)
Hardware TypeZinc
Bushing Outside Diameter1.125 in (28.575 mm)
California Proposition 65 WarningYes
Part FitmentUniversal
Barrel Length0.5 in (12.7 mm)
Vendor Part Number9.9106G
Package Qty1
Package TypeEA
