Vehicle Info NeededENERGY SUSPENSIONPART NUMBER: 355-9-9111R

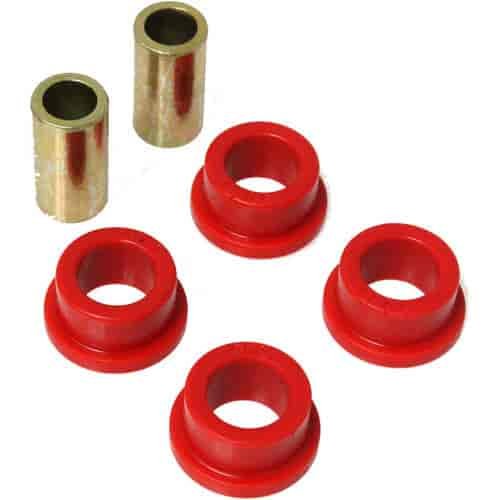

Link-Flange Type Bushing Kit Outer tube ID: 1.125"
$1554
1 left in stock
Ships Tomorrow
Lowest Price GuaranteeTube I.D. 1.125"
- Link-Flange Type Bushing Kit
- Outer tube ID: 1.125"
- Bolt Diameter: 5/8"
- Red
- Universal
Outer Tube: - ID: 1.125"
- Length: 1.480"
- Minimum Wall Thickness: 0.125"
Bushing: - OD: 1.140"
- ID: 0.812"
- Barrel Length: 0.715"
- Flange OD: 1.375"
- Flange Thickness: 0.139"
Inner Sleeve: - OD: 0.812"
- ID: 0.625"
- Length: 1.750"
Fastener Bolt Diameter: 5/8"
Part TypeSway Bar Link Bushing
BrandENERGY SUSPENSION
Package Height2.4
Package Width2.4
Package Length5.2
Weight0.33 PG
Part CategoryPerformance Parts
Sleeves IncludedYes
Sleeve Inside Diameter0.625 in (15.9 mm)
Sleeve Length1.75 in (44.5 mm)
Bushing ColorRed
PositionN/A
Bushing MaterialPolyurethane
QuantitySold as a kit
Bushing Flange Length0.125 in (3.175 mm)
Part FitmentSemi Universal
Barrel Length0.75 in (19.05 mm)
Bushing Outside Diameter1.125 in (28.575 mm)
Vendor Part Number9.9111R
Package Qty1
Package TypeEA
