![P1524(8)STD Dish Top Piston for 1968-1995 Chevrolet 5.7L [Standard Size]](https://www.jegs.com/images/mini_750/400/416/416-p1524(8)std.jpg)
Vehicle Info NeededENGINETECHPART NUMBER: 416-P1524(8)STD

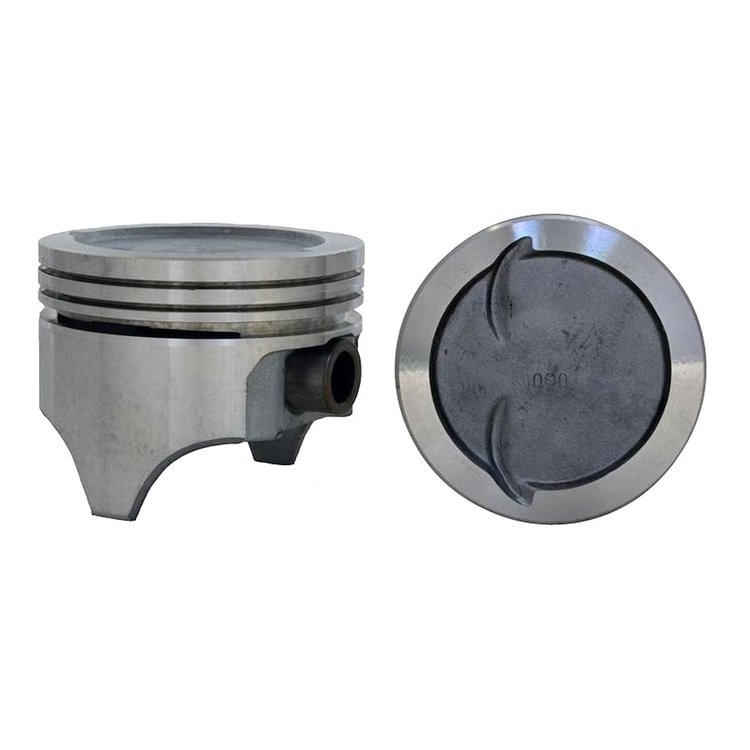

P1524(8)STD Dish Top Piston for 1968-1995 Chevrolet 5.7L [Standard Size]
$28499
Ships on 09/09/2026
Lowest Price GuaranteeGM
Piston1968-1995 Chevrolet 5.7L Dish Top Piston Size: Standard Set of 8
The Enginetech P1524(8)STD is a replacement piston for GM/Chevrolet, 5.7L 350, 305 ci engines, sized at Standard. Engineered to OE specifications for reliable combustion chamber performance.
Enginetech P1524(8)STD Piston Features:
- Fitment: GM/Chevrolet, 5.7L 350, 305 ci
- Size: Standard
- Engineered to OE specifications for direct replacement
- Note: Dish top .120" deep. 1.540" compression height. Coated skirt. For use with 305 cylinder heads. Use R40058 or M40058 rings./305 cyl. heads. Use R40045 or M40058 rings." deep. For use with 305 cylinder heads heavy duty trucks. Use R40058 or M40058 rings.
Part TypePiston
BrandENGINETECH
Package Height4.5
Package Width9.25
Package Length18.25
Weight14.75 PG
Part CategoryReplacement Parts
Compression Height1.540
SizeStandard Size
QuantitySet of 8
Oil Ring Thickness3/16
RemanufacturedNo
Bore Diameter4.000
Piston StyleDish
Piston Pin Outside Diameter0.9273
Second Compression Ring Thickness5/64
Top Compression Ring Thickness5/64
Piston MaterialCast aluminum
FitmentGM/Chevrolet
Part FitmentDirect Fit
Engine Displacement5.7L 350
Vendor Part NumberP1524(8)STD
Package Qty1
Package TypeEA
