![P3017(6)STD Dish Top Piston for 1988-1995 Ford, Lincoln, Mercury 3.8L [Standard Size]](https://www.jegs.com/images/mini_750/400/416/416-p3017(6)std.jpg)
Vehicle Info NeededENGINETECHPART NUMBER: 416-P3017(6)STD

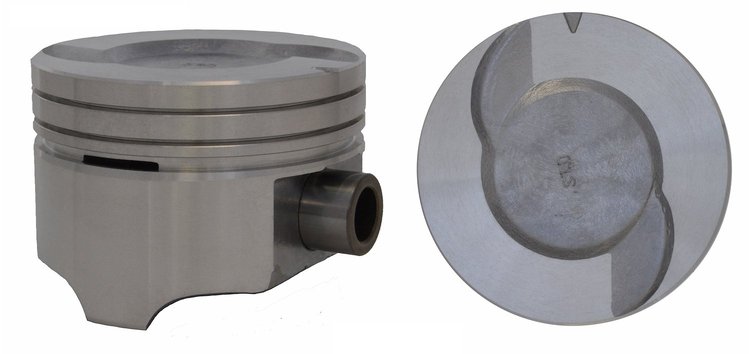

P3017(6)STD Dish Top Piston for 1988-1995 Ford, Lincoln, Mercury 3.8L [Standard Size]
$36599
Ships on 11/18/2026
Lowest Price GuaranteeItems You Need
![Mechanic Chair & Step Stool on Wheels [300 lb. Capacity]](https://www.jegs.com/images/mini_200/500/555/555-81156.jpg)
![Heavy-Duty Steel Workbench [59.5 in. x 27.5 in. Bench Top]](https://www.jegs.com/images/mini_200/500/555/555-81440.jpg)
![Engine Assembly Lube [4 oz. Bottle]](https://www.jegs.com/images/mini_200/500/555/555-28000.jpg)
![1-Ton Automotive Shop Crane [Boom Operating Range: 34 in. to 45 in.]](https://www.jegs.com/images/mini_200/500/555/555-81044k.jpg)
JEGS
Part Number : 555-81044K
$23698
![Rotating Engine Stand [1000 lb. Capacity]](https://www.jegs.com/images/mini_200/500/555/555-80059.jpg)
![Round Magnetic Parts Tray [5 1/2 in. Round]](https://www.jegs.com/images/mini_200/500/555/555-80080.jpg)
![Socket Set, 3/8 in. & 1/4 in. Drive [SAE/Metric 52-Piece]](https://www.jegs.com/images/mini_200/500/555/555-81565.jpg)
![Plier Set [5-Piece]](https://www.jegs.com/images/mini_200/500/555/555-w1717.jpg)
![Break-In Oil, 10W30 [1 Quart, 32 oz.]](https://www.jegs.com/images/mini_200/500/555/555-28067.jpg)
![Fender Cover with Pocket [23 in. W x 31 1/2 in. L]](https://www.jegs.com/images/mini_200/500/555/555-65010.jpg)
![Penetrating Oil [11 oz. Aerosol Can]](https://www.jegs.com/images/mini_200/600/639/639-11043.jpg)
![Brake Parts Cleaner [14 oz. Aerosol Can]](https://www.jegs.com/images/mini_200/500/555/555-72311.jpg)
Ford
Piston1988-1995 Ford, Lincoln, Mercury 3.8L Dish Top Piston Size: Standard Set of 6
The Enginetech P3017(6)STD is a replacement piston for Ford, 3.8L 232 engines, sized at Standard. Engineered to OE specifications for reliable combustion chamber performance.
Enginetech P3017(6)STD Piston Features:
- Fitment: Ford, 3.8L 232
- Size: Standard
- Turbocharged or supercharged application
- Engineered to OE specifications for direct replacement
- Note: Dish top .145 deep. 1.614 CH. Use M96816 rings.
Part TypePiston
BrandENGINETECH
Package Height3.75
Package Width9.25
Package Length13.75
Weight10.0 PG
Part CategoryReplacement Parts
Compression Height1.614
SizeStandard Size
QuantitySet of 6
Oil Ring Thickness4.00
RemanufacturedNo
Bore Diameter3.810
Piston StyleDish
Piston Pin Outside Diameter0.9123
Second Compression Ring Thickness1.50
Top Compression Ring Thickness1.50
Piston MaterialCast aluminum
FitmentFord
Part FitmentDirect Fit
Engine Displacement3.8L 232
Vendor Part NumberP3017(6)STD
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
