![P3077(8)STD Coated Flat Top Piston for 2001-2006 Chevrolet 8.1L [Standard Size]](https://www.jegs.com/images/mini_750/400/416/416-p3077(8)std.jpg)
Vehicle Info NeededENGINETECHPART NUMBER: 416-P3077(8)STD

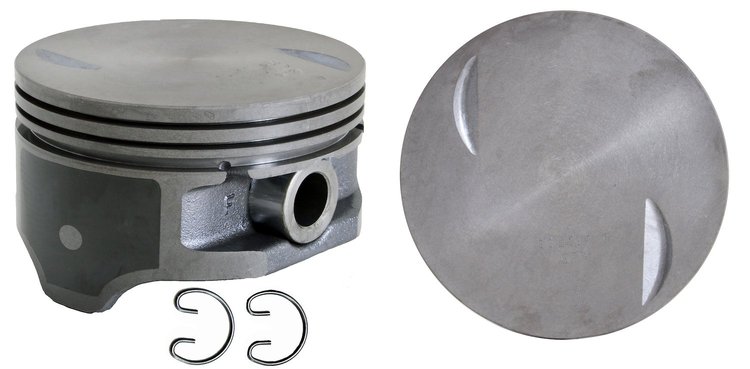

P3077(8)STD Coated Flat Top Piston for 2001-2006 Chevrolet 8.1L [Standard Size]
$28899
Ships on 09/09/2026
Lowest Price GuaranteeGM
Piston2001-2006 Chevrolet 8.1L Flat Top Piston; Coated Skirts Size: Standard Set of 8
The Enginetech P3077(8)STD is a replacement piston for GM/Chevrolet, 8.1L 496 engines, sized at Standard. Engineered to OE specifications for reliable combustion chamber performance.
Enginetech P3077(8)STD Piston Features:
- Fitment: GM/Chevrolet, 8.1L 496
- Size: Standard
- Coated construction for improved wear resistance
- Engineered to OE specifications for direct replacement
- Note: Flat top. With pin clips. Fits press or floating rods. 1.353 CH. Hyper. Coated skirt. Use M42528 rings.
Part TypePiston
BrandENGINETECH
Package Height4.5
Package Width9.25
Package Length18.25
Weight13.75 PG
Part CategoryReplacement Parts
Compression Height1.355
SizeStandard Size
QuantitySet of 8
Oil Ring Thickness4.00
RemanufacturedNo
Bore Diameter4.250
Piston StyleFlat top
Piston Pin Outside Diameter1.0400
Second Compression Ring Thickness2.00
Top Compression Ring Thickness2.00
Piston MaterialCast aluminum
FitmentGM/Chevrolet
Part FitmentDirect Fit
Engine Displacement8.1L 496
Vendor Part NumberP3077(8)STD
Package Qty1
Package TypeEA
