![P4714(4)STD Piston for 1993-1997 Toyota 1.6L [Standard Size]](https://www.jegs.com/images/mini_750/400/416/416-p4714(4)std.jpg)
Vehicle Info NeededENGINETECHPART NUMBER: 416-P4714(4)STD

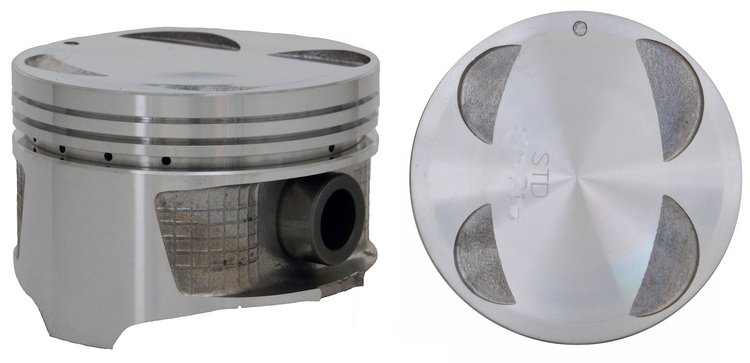

P4714(4)STD Piston for 1993-1997 Toyota 1.6L [Standard Size]
$34499
Ships Tomorrow
Lowest Price GuaranteeItems You Need
![Mechanic Chair & Step Stool on Wheels [300 lb. Capacity]](https://www.jegs.com/images/mini_200/500/555/555-81156.jpg)
![Heavy-Duty Steel Workbench [59.5 in. x 27.5 in. Bench Top]](https://www.jegs.com/images/mini_200/500/555/555-81440.jpg)
![Engine Assembly Lube [4 oz. Bottle]](https://www.jegs.com/images/mini_200/500/555/555-28000.jpg)
![1-Ton Automotive Shop Crane [Boom Operating Range: 34 in. to 45 in.]](https://www.jegs.com/images/mini_200/500/555/555-81044k.jpg)
JEGS
Part Number : 555-81044K
$23698
![Rotating Engine Stand [1000 lb. Capacity]](https://www.jegs.com/images/mini_200/500/555/555-80059.jpg)
![Round Magnetic Parts Tray [5 1/2 in. Round]](https://www.jegs.com/images/mini_200/500/555/555-80080.jpg)
![Socket Set, 3/8 in. & 1/4 in. Drive [SAE/Metric 52-Piece]](https://www.jegs.com/images/mini_200/500/555/555-81565.jpg)
![Plier Set [5-Piece]](https://www.jegs.com/images/mini_200/500/555/555-w1717.jpg)
![Break-In Oil, 10W30 [1 Quart, 32 oz.]](https://www.jegs.com/images/mini_200/500/555/555-28067.jpg)
![Fender Cover with Pocket [23 in. W x 31 1/2 in. L]](https://www.jegs.com/images/mini_200/500/555/555-65010.jpg)
![Penetrating Oil [11 oz. Aerosol Can]](https://www.jegs.com/images/mini_200/600/639/639-11043.jpg)
![Brake Parts Cleaner [14 oz. Aerosol Can]](https://www.jegs.com/images/mini_200/500/555/555-72311.jpg)
Toyota
Piston1993-1997 Toyota 1.6L Piston Size: Standard Set of 4
The Enginetech P4714(4)STD is a replacement piston for Toyota, 1.6L engines, sized at Standard. Engineered to OE specifications for reliable combustion chamber performance.
Enginetech P4714(4)STD Piston Features:
- Fitment: Toyota, 1.6L
- Size: Standard
- Engineered to OE specifications for direct replacement
- Note: Dish top. 1.201 CH. Use C81004 rings.
Part TypePiston
BrandENGINETECH
Package Height4.0
Package Width9.25
Package Length9.25
Weight3.75 PG
Part CategoryReplacement Parts
Compression Height1.201
SizeStandard Size
QuantitySet of 4
Oil Ring Thickness3.00
RemanufacturedNo
Bore Diameter3.189
Piston Pin Outside Diameter0.7874
Second Compression Ring Thickness1.50
Top Compression Ring Thickness1.20
Piston MaterialCast aluminum
FitmentToyota
Part FitmentDirect Fit
Engine Displacement1.6L
Vendor Part NumberP4714(4)STD
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
