![P5094(4)STD Piston for 2009-2011 Chevrolet 1.6L [Standard Size]](https://www.jegs.com/images/mini_750/400/416/416-p5094(4)std.jpg)
Vehicle Info NeededENGINETECHPART NUMBER: 416-P5094(4)STD

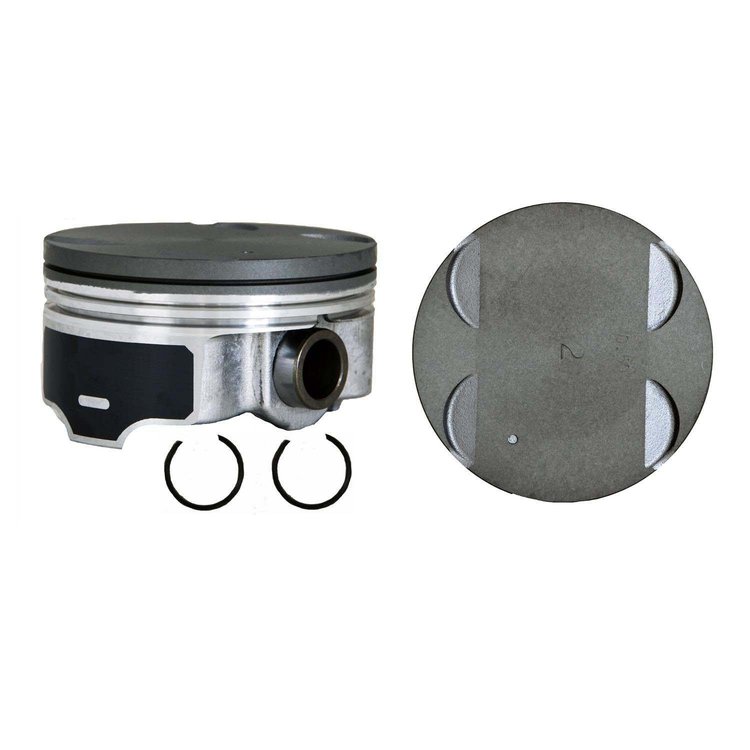

P5094(4)STD Piston for 2009-2011 Chevrolet 1.6L [Standard Size]
$13899
Ships Tomorrow
Lowest Price GuaranteeItems You Need
![Mechanic Chair & Step Stool on Wheels [300 lb. Capacity]](https://www.jegs.com/images/mini_200/500/555/555-81156.jpg)
![Heavy-Duty Steel Workbench [59.5 in. x 27.5 in. Bench Top]](https://www.jegs.com/images/mini_200/500/555/555-81440.jpg)
![Engine Assembly Lube [4 oz. Bottle]](https://www.jegs.com/images/mini_200/500/555/555-28000.jpg)
![1-Ton Automotive Shop Crane [Boom Operating Range: 34 in. to 45 in.]](https://www.jegs.com/images/mini_200/500/555/555-81044k.jpg)
JEGS
Part Number : 555-81044K
$23698
![Rotating Engine Stand [1000 lb. Capacity]](https://www.jegs.com/images/mini_200/500/555/555-80059.jpg)
![Round Magnetic Parts Tray [5 1/2 in. Round]](https://www.jegs.com/images/mini_200/500/555/555-80080.jpg)
![Socket Set, 3/8 in. & 1/4 in. Drive [SAE/Metric 52-Piece]](https://www.jegs.com/images/mini_200/500/555/555-81565.jpg)
![Plier Set [5-Piece]](https://www.jegs.com/images/mini_200/500/555/555-w1717.jpg)
![Break-In Oil, 10W30 [1 Quart, 32 oz.]](https://www.jegs.com/images/mini_200/500/555/555-28067.jpg)
![Fender Cover with Pocket [23 in. W x 31 1/2 in. L]](https://www.jegs.com/images/mini_200/500/555/555-65010.jpg)
![Penetrating Oil [11 oz. Aerosol Can]](https://www.jegs.com/images/mini_200/600/639/639-11043.jpg)
![Brake Parts Cleaner [14 oz. Aerosol Can]](https://www.jegs.com/images/mini_200/500/555/555-72311.jpg)
GM
Piston2009-2011 Chevrolet 1.6L Piston Size: Standard Set of 4
The Enginetech P5094(4)STD is a replacement piston for GM, 1.6L 1598 engines, sized at Standard. Engineered to OE specifications for reliable combustion chamber performance.
Enginetech P5094(4)STD Piston Features:
- Fitment: GM, 1.6L 1598
- Size: Standard
- Engineered to OE specifications for direct replacement
- Note: Flat top. 1.067 CH. Anodized head. Coated skirt. Use S79114 rings.
Part TypePiston
BrandENGINETECH
Package Height4.0
Package Width9.25
Package Length9.25
Weight3.0 PG
Part CategoryReplacement Parts
Compression Height1.067
SizeStandard Size
QuantitySet of 4
Oil Ring Thickness2.0
RemanufacturedNo
Bore Diameter3.110
Piston Pin Outside Diameter0.7480
Second Compression Ring Thickness1.2
Top Compression Ring Thickness1.2
Piston MaterialCast aluminum
FitmentGM
Part FitmentDirect Fit
Engine Displacement1.6L 1598
Vendor Part NumberP5094(4)STD
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
